Specifications
Brand Name :
GRAT
Model Number :
EK-20
Certification :
IP66,CCC, ISO, CE,CNAS,SIL
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $150.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
7 working days
Packaging Details :
Carton/Wooden Box
Type :
On/Off
Power Supply :
AC220V/DC24V
Ambient Temp :
-30ºC~60ºC
Application :
Food, Environmental Protection, Paper-making, Chemical Engineering, and Power
Action Time :
15S - 25S
Communication Protocol :
Modbus
Torque :
20NM
Size :
DN20 ( up to DN25 )
Speed Regulation Mode :
PWM
Position Display :
OLED
Backlash :
0.5%
Dead :
0.5%
Feedback :
0.5%
Description

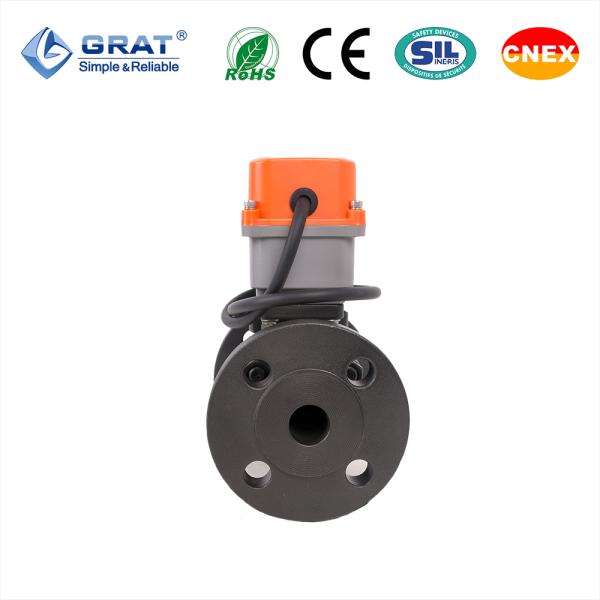

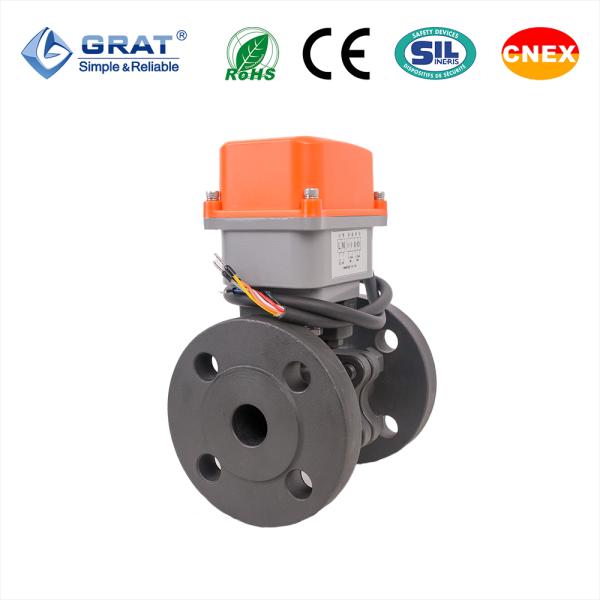

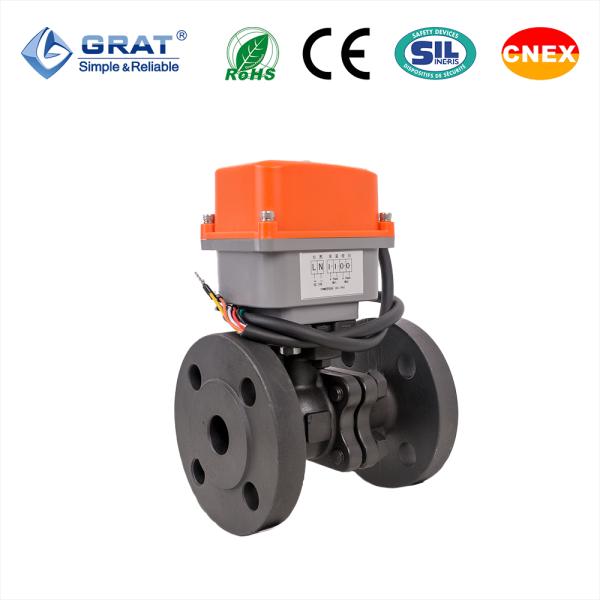

IoT Flange Ball Valve
Product Description
The working principle of the IoT micro electric flanged ball valve is as follows: the IoT micro electric actuator drives the valve stem to drive a perforated ball (or partial ball), and the ball rotates with the valve stem to realize the opening or closing of the valve; the electric ball valve can be fully closed or fully opened by rotating 0-90°. Compared with gate valves and globe valves of the same specification, the ball valve is small in size, light in weight, and convenient for pipeline installation.
Features
  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs while maintaining efficient and stable operation.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures stable actuator operation and more precise control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable, and has a long service life.
  • Real-time parameter display: The OLED displays status and parameter information in Chinese or English, providing real-time feedback and fault alarm information.
  • Precise control: Adjustable range from 30% to 100% with 0.5% control accuracy, meeting diverse control requirements.
  • Multiple feedback methods: Supports 4-20mA/0-10V/1-5V feedback methods for accurate control.
Basic Parameters
Nominal Bore (DN) DN15～DN40
Operating Voltage AC220V, DC24V
Medium Temperature -15℃～60℃
Nominal Pressure PN1.0～1.6MPa
Flow Characteristic Quick opening
Physical Specifications
Connection Type Union, Flange
Valve Body Materials UPVC, CPCV, PVC
Valve Core Materials UPVC, CPCV, PVC
Ball Valve Seal PTFE, PPL, etc.
Packing Material Graphite, PTFE
Actuator Seal Viton (FKM)
Actuator Material Cast aluminum alloy
Suitable Media
  • Neutral gases
  • Neutral liquids
Standards Compliance
Design & Manufacturing GB12237-2007, API 6D
Product Inspection & Testing API 598
Circuit Wiring Diagram
Corrosion Resistant PTFE Lined IoT Flange Ball Valve for Aggressive Chemical Acids and Alkali Fluid Management Systems
DC 24V
Corrosion Resistant PTFE Lined IoT Flange Ball Valve for Aggressive Chemical Acids and Alkali Fluid Management Systems
AC 220V
Packing & Shipping
  • Packing: Inner with bubble wrap, outer with cardboard box and wooden case.
  • Transportation: By sea, by air, by train.
If you have other requirements, please feel free to tell us.
