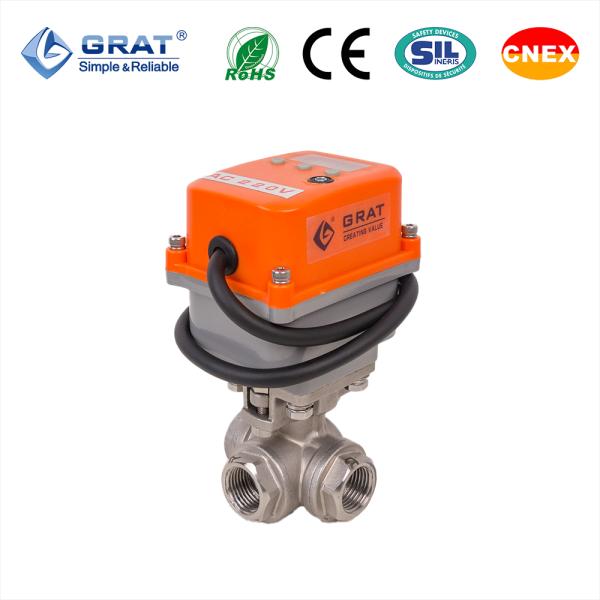

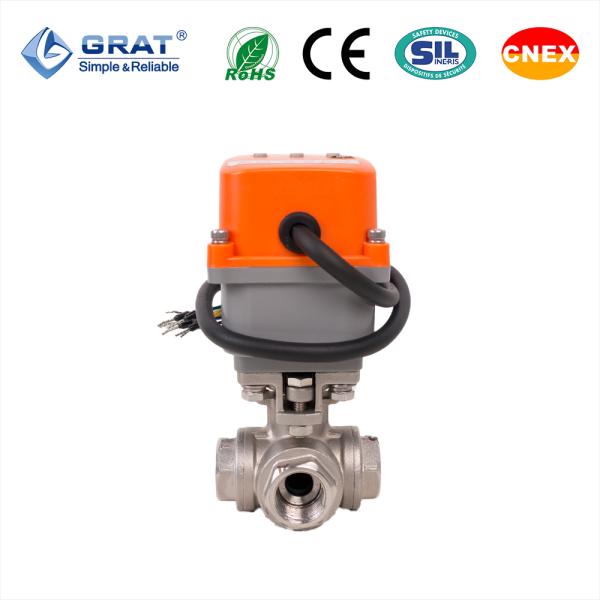

IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body
Specifications
Brand Name :
GRAT
Model Number :
EK-20
Certification :
IP66,CCC, ISO, CE,CNAS,SIL
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $150.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Type :
On/Off
Power Supply :
AC220V/DC24V
Ambient Temp :
-30ºC~60ºC
Application :
Food, Environmental Protection, Paper-making, Chemical Engineering, and Power
Action Time :
15S - 25S
Communication Protocol :
Modbus
Torque :
20NM
Size :
DN20 ( up to DN25 )
Speed Regulation Mode :
PWM
Position Display :
OLED
Description

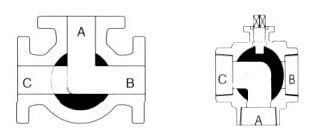

IoT Three-Way Ball Valve

Product Description

Engineered for high-pressure differentials and clog-prone environments, the electric threaded ball valve lock ensures rapid switching and reliable pipeline media shut-off. With superior operational performance and exceptional cost-efficiency, it significantly outperforms solenoid valve counterparts in demanding industrial applications.

Features

  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
  • Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
  • Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
  • Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN15～40
Operating Power: AC220V, DC24V
Medium Temperature: 0~120℃
Ambient Temperature: -30℃～60℃
Nominal Pressure: 0.1～1.6MPa
Control Method: On-Off Control
Actuation Time: 15–25 seconds

Physical Specifications

Connection Types:
- Female Threaded Connection
- Flanged Connection
Seal Type: Soft Seal
Valve Body Materials: SUS304, SUS316, WCB (Carbon Steel)
Valve Disc Materials: SUS304, SUS316
Sealing Element: EPDM, PTFE
IP Rating: IP66
Installation:
- Multi-angle installation
(Horizontal/inclined recommended)

Applications

  • Air conditioning systems
  • Fire protection systems
  • Water treatment facilities
  • Pipeline purging systems
  • Analytical instruments
  • Flue gas sampling systems

Standards Compliance

Design & Manufacturing:
GB12237-2007 (ISO 12237)
API 6D
Flange Standards:
GB/T 9124.1-2019
GB/T 9124.2-2019
GB17241.6-2008
Face-to-Face: GB12221-2005 (ISO 5752)
Testing & Inspection: API 598


Circuit Diagram


Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
