Smooth Reinforced Graphite Gasket Sheets For Petrochemical Plants
Smooth Reinforced Graphite Gasket Sheets For Petrochemical Plants
Smooth Reinforced Graphite Gasket Sheets For Petrochemical Plants
Smooth Reinforced Graphite Gasket Sheets For Petrochemical Plants
Smooth Reinforced Graphite Gasket Sheets For Petrochemical Plants
Smooth Reinforced Graphite Gasket Sheets For Petrochemical Plants
Specifications
Brand Name :
CLINGSEAL
Model Number :
CS1080T
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2.15-3.0 PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100Tons per month
Delivery Time :
1-4 weeks
Packaging Details :
pallets or wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet,Composite Sheet,Reinforced Sheet
Application :
oil sealing, cylinder head gaskets, steam - cycling systems, exhaust applications
C content (%) :
99.9%,99%
Color :
Black
Material :
Graphite
Density :
1.0-1.5 g/cm3
Thickness :
1.0mm, 1.5mm, 2.0mm, 3.0mm
Hardness :
80 Shore A
Product name :
Graphite sheet
Shape :
can be customized
Sample :
Availble
Width :
≤1500 mm
Recovery (%) :
≥35
Standard Sizes :
1000mm x 1000mm, 1500mm x 1500mm, 2000mm x 2000mm
Pressure Range :
Up to 250 bar
Tensile Strength :
8 MPa
Fluid Compatibility :
Wide range of fluids
Compressibility :
30%
Temperature Range :
-200°C to 650°C
Surface Finish :
Smooth
Flexural Strength :
20 MPa
Chemical Resistance :
Excellent
Recovery :
15%
Reinforcement Material :
Metal
Description

High-Temperature Resistant Reinforced Graphite Gasket Sheets for Petrochemical Plants

Are you in search of top-quality, high-temperature resistant reinforced graphite gasket sheets for your petrochemical plant? Look no further! Our graphite gasket sheets are the ideal solution for a wide range of applications.

Product Overview

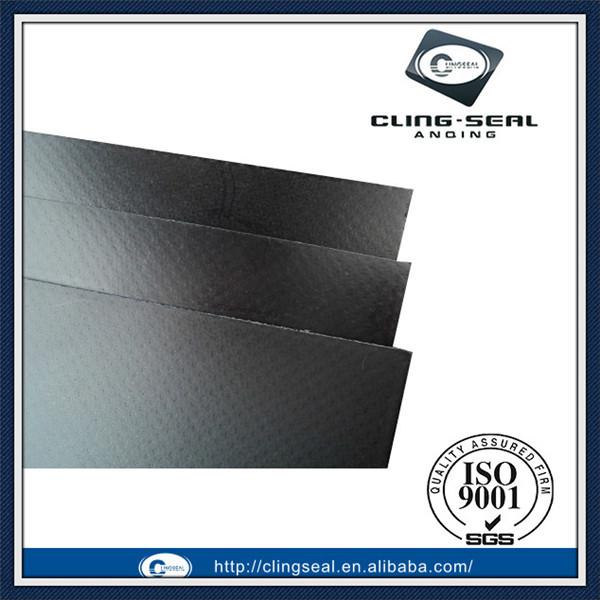

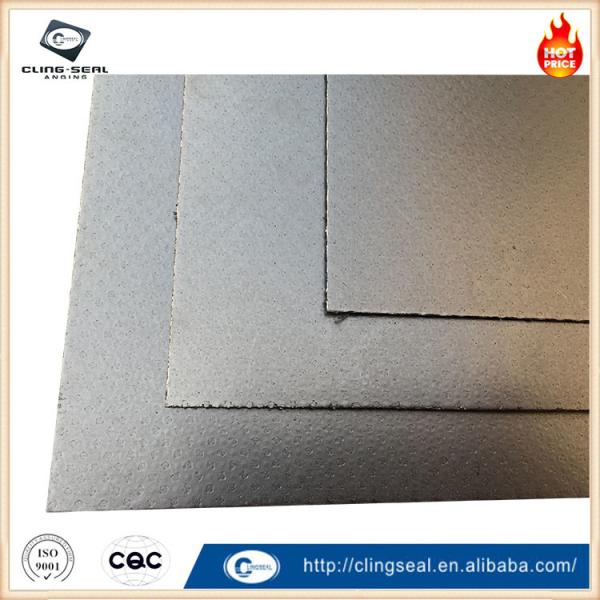

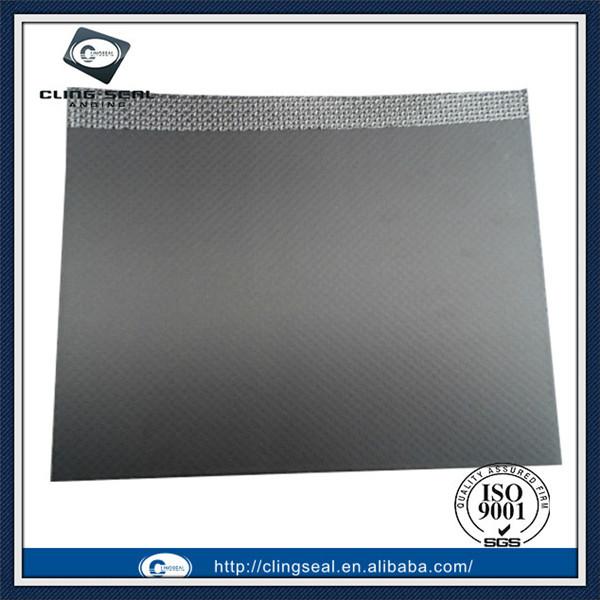

Our graphite gasket sheets are available in thicknesses ranging from 1.0 to 6.0mm. For most applications, it's advisable to choose the thinnest material that meets your requirements. These sheets are constructed with two sides of pure flexible graphite sheet and a 0.2 - 0.25mm perforated metal insert. The metal insert can be 0.2 - 0.25mm carbon steel (also known as tinplate), or options like ss201, 304, 316. You can also select from different carbon content levels: 95%, 97%, 98%, or 99%.

Key Features

  • Exceptional Adaptability and Durability: Our high-temperature resistant reinforced graphite gasket sheets offer excellent sealing performance, ensuring no delamination and a high yield rate.
  • Economical Solution: They serve as an affordable yet highly effective sealing gasket and exhaust, manifold gasket material.
  • Superior Oil Resistance: Ideal for applications where oil resistance is crucial.
  • High Temperature and Pressure Resistance: Specifically designed to withstand the harsh conditions of high temperature and pressure environments, making them perfect for petrochemical plants.

Smooth Reinforced Graphite Gasket Sheets For Petrochemical Plants

Applications

These graphite gasket sheets find extensive use in various applications within petrochemical plants. They are highly suitable for oil sealing and gasket applications, such as cylinder head gaskets. They are also commonly used in steam cycling or exhaust applications, where their high-temperature resistance is a significant advantage.

Product Sizes

  • Thickness: Available in 1.0 - 6.0mm. For thicker options, we offer the 3+2 type (with the product section from top to bottom in the order of Paper - Metal - Paper - Metal - Paper) and utilize multi - paper bonding technology.
  • Standard Sizes: 500500mm; 5001000mm; 5001500mm; 10001000mm; 1000*1500mm. Additionally, we can customize sizes according to your specific needs.
If you can't find the exact product you're looking for or require a bespoke material, don't hesitate to contact us. We're here to assist you in finding the best gasket solution for your application. Unsure which material is best for you? Consult our gasket material selector or our guide to rubbers. Purchase your high - temperature resistant reinforced graphite gasket sheets for petrochemical plants today!



Physical Property:

Item Data
Tensile Strength (MPa,min.) ≥30
Compressibility (%,) 10-20
Recovery (%) ≥35
150ºC, At IRM 903# for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
21ºC~30ºC, At B Fuel for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
Thickness Deviation(mm) 0.05


Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

Product Shows

Smooth Reinforced Graphite Gasket Sheets For Petrochemical PlantsSmooth Reinforced Graphite Gasket Sheets For Petrochemical PlantsSmooth Reinforced Graphite Gasket Sheets For Petrochemical Plants
