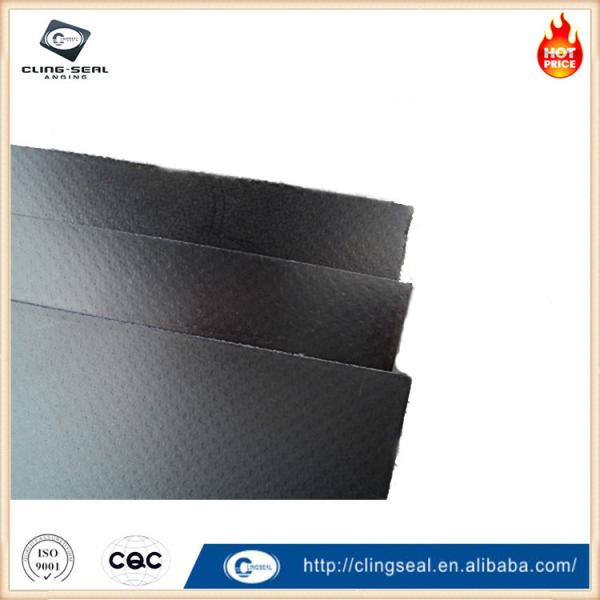

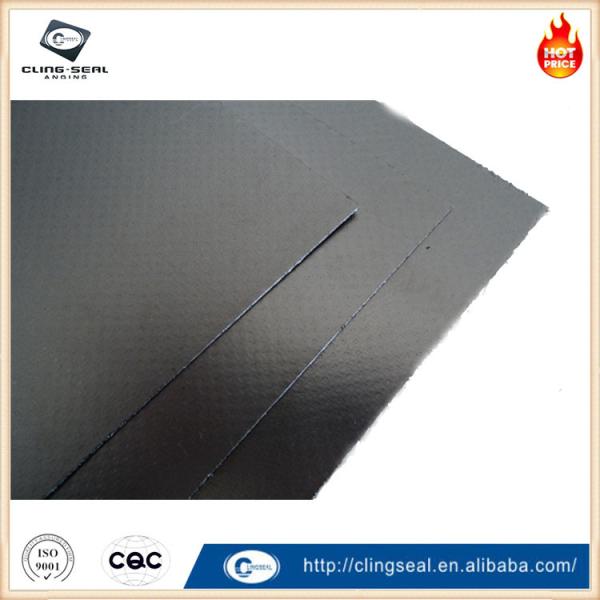

Non-Toxic and Environmentally Friendly Graphite Gasket Sheets
Non-Toxic and Environmentally Friendly Graphite Gasket Sheets
Non-Toxic and Environmentally Friendly Graphite Gasket Sheets
Non-Toxic and Environmentally Friendly Graphite Gasket Sheets
Non-Toxic and Environmentally Friendly Graphite Gasket Sheets
Non-Toxic and Environmentally Friendly Graphite Gasket Sheets
Specifications
Brand Name :
CLINGSEAL
Model Number :
CS1080T
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2.15-3.0 PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100Tons per month
Delivery Time :
1-4 weeks
Packaging Details :
pallets or wooden case
Grade :
Industrial Grade
Sample :
Availble
Application :
gaskets
C content (%) :
99.9%,99%
Thickness :
Customers' Demand,1.5MM-5.0MM
Material :
High Purity Graphtite,Graphite
Density :
1.0~1.5g/cm3
Color :
Black
Hardness :
80 Shore A
Product name :
Graphite sheet
Shape :
can be customized
Type :
Flexible Sheet,Composite Sheet,Reinforced Sheet
Width :
≤1500 mm
Thickness Deviation (mm) :
0.05
Recovery (%) :
≥35
Description

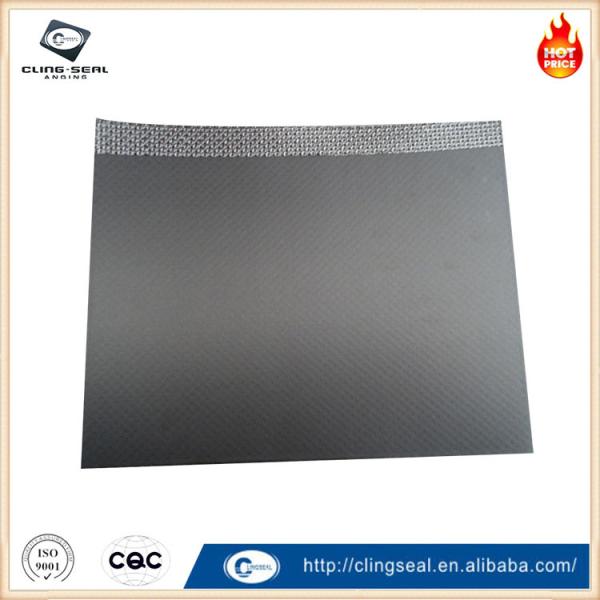

Reinforced Graphite Composite Gasket with Tinplate Product Description

Non-Toxic and Environmentally Friendly Graphite Gasket Sheets
Premium Sealing Solutions for High-Temperature, High-Pressure Applications

Discover our range of non-toxic and environmentally friendly graphite gasket sheets, engineered to deliver superior sealing performance in extreme conditions. Ideal for industrial, automotive, and energy sectors, these gaskets combine advanced materials with eco-conscious design, making them the preferred choice for sustainable operations.

Non-Toxic and Environmentally Friendly Graphite Gasket Sheets

Key Features:
✅ Eco-Friendly Composition: Constructed with 95-99% pure flexible graphite and a corrosion-resistant metal insert (0.2-0.25mm carbon steel/tinplate, SS201, 304, or 316), ensuring zero harmful emissions and compliance with global environmental standards.
✅ Exceptional Durability: Resists temperatures up to 550°C and pressures exceeding 100 bar, making them suitable for steam cycles, exhaust systems, and industrial machinery.
✅ Customizable Solutions: Available in thicknesses from 1.0mm to 6.0mm (including 3+2 multi-layer configurations) and standard sizes (500x500mm, 1000x1000mm, etc.), with fully customizable options to meet unique requirements.
✅ Cost-Effective Performance: Balances reliability with affordability, reducing maintenance downtime and replacement costs.

Why Choose Our Graphite Gaskets?
