Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills
Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills
Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills
Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills
Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills
Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills
Specifications
Brand Name :
CLINGSEAL
Model Number :
CS1080T
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2.15-3.0 PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100Tons per month
Delivery Time :
1-4 weeks
Packaging Details :
pallets or wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet,Composite Sheet,Reinforced Sheet
Application :
oil sealing, cylinder head gaskets, steam - cycling systems, exhaust applications
C content (%) :
99.9%,99%
Color :
Black
Material :
Graphite
Density :
1.0 - 1.5 g/cm3
Thickness :
0.5mm - 5mm
Hardness :
80 Shore A
Product name :
Graphite sheet
Shape :
can be customized
Sample :
Availble
Width :
≤1500 mm
Recovery (%) :
≥35
Pressure Range :
Up to 300 bar
Recovery :
≥ 15%
Reinforcement :
Metal mesh or foil
Compressibility :
≥ 40%
Chemical Resistance :
Excellent
Flexibility :
Good
Temperature Range :
-200°C to 550°C
Tensile Strength :
≥ 8 MPa
Thermal Conductivity :
≥ 1.5 W/mK
Corrosion Resistance :
Excellent
Leakage Rate :
≤ 0.5 ml/min
Description
Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills​
Looking for high - quality reinforced graphite gasket sheets for your wastewater treatment or pulp mill operations? You've come to the right place!​
Product Overview​

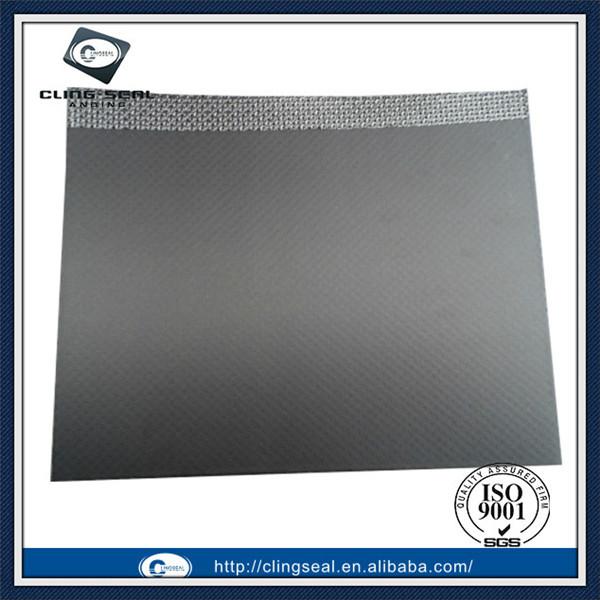

Our graphite gasket sheets are available in thicknesses ranging from 1.0 to 3mm. We recommend choosing the thinnest sheet suitable for your application for optimal performance. Each sheet is composed of two layers of pure flexible graphite with a 0.2 - 0.25mm perforated metal insert. The metal insert can be 0.2 - 0.25mm carbon steel (tinplate), or options like ss201, 304, 316. You can also select from different carbon contents: 95%, 97%, 98%, or 99%.

Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills

Key Features

  • Exceptional adaptability and durability, ensuring long - lasting and reliable sealing with no delamination and high yield.
  • An economical choice for sealing gaskets, especially in exhaust and manifold applications.
  • Excellent oil - resistance properties.
  • Highly suitable for high - temperature and high - pressure environments, making it ideal for steam cycling and exhaust applications.

Applications

These gasket sheets are perfect for various applications in wastewater treatment plants and pulp mills, including oil sealing, cylinder head gaskets, and other sealing requirements.

Sizes Available

  • Thickness: 1.0 - 6.0mm. For thicker options, we offer the 3 + 2 type (with a product section from top to bottom in the order of Paper - Metal - Paper - Metal - Paper) and multi - paper bonding technology.
  • Standard sizes: 500500mm; 5001000mm; 5001500mm; 10001000mm; 1000*1500mm. Custom sizes are also available upon request.
If you can't find the exact product you need or require a bespoke solution, don't hesitate to contact us. Not sure if graphite is the best material for your application? Consult our gasket material selector or our guide to rubbers. Purchase your reinforced graphite gasket sheets for wastewater treatment and pulp mills today!



Physical Property:

Item Data
Tensile Strength (MPa,min.) ≥30
Compressibility (%,) 10-20
Recovery (%) ≥35
150ºC, At IRM 903# for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
21ºC~30ºC, At B Fuel for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
Thickness Deviation(mm) 0.05


Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

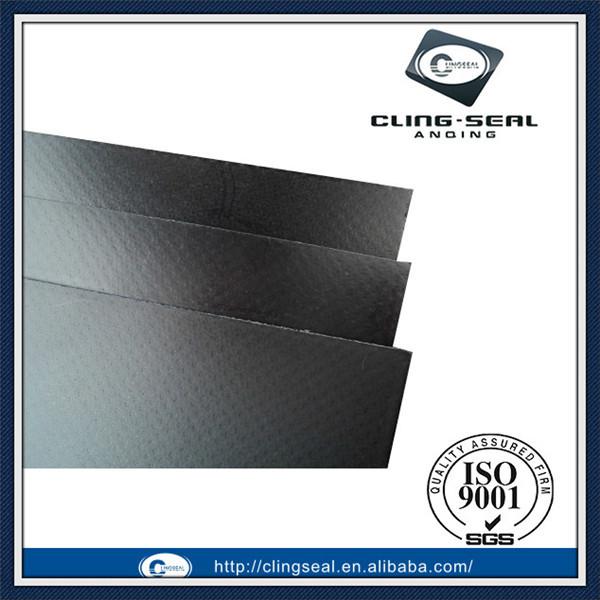

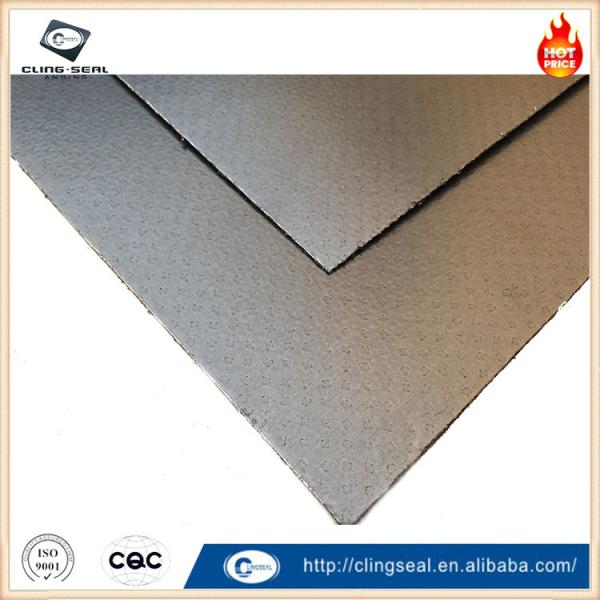

Product Shows

Reinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp MillsReinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp MillsReinforced Graphite Gasket Sheets for Wastewater Treatment and Pulp Mills
