80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing
80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing
80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing
80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing
80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing
80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing
Specifications
Brand Name :
CLINGSEAL
Model Number :
CS1080T
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2.15-3.0 PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100Tons per month
Delivery Time :
1-4 weeks
Packaging Details :
pallets or wooden case
Grade :
Industrial Grade
Type :
Gasket sheet
Application :
Sealing for high temperature and high pressure environments
C content (%) :
99.9%,99%
Color :
Black
Material :
Reinforced graphite
Density :
1.5 g/cm3
Thickness :
1.5mm
Hardness :
80 Shore A
Product name :
Graphite sheet
Shape :
can be customized
Sample :
Availble
Width :
≤1500 mm
Recovery (%) :
≥35
Pressure Resistance :
up to 200 bar
Flexural Strength :
25 MPa
Temperature Resistance :
up to 550°C
Tensile Strength :
12 MPa
Surface Finish :
Smooth
Chemical Resistance :
resistant to most chemicals
Compressibility :
40%
Recovery :
15%
Description

Flexible Graphite Gasket Sheets for High-Pressure Industrial Valve Sealing

Discover top-quality flexible graphite gasket sheets tailored for high-pressure industrial valve sealing right here. Our graphite gasket sheets are available in thicknesses ranging from 1.0 to 3mm. As a best practice, choose the thinnest sheet suitable for your specific application to ensure optimal performance.

Product Composition

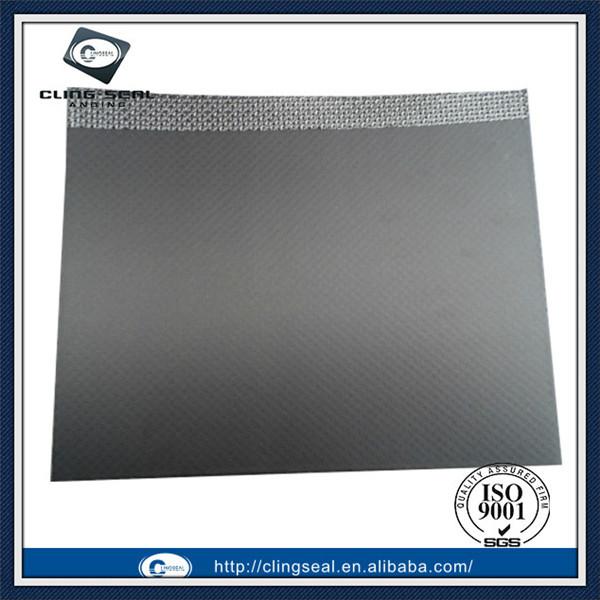

Our flexible graphite gasket sheets are crafted with two layers of pure flexible graphite sheet, sandwiching a 0.2 - 0.25mm perforated metal insert. The metal insert can be 0.2 - 0.25mm carbon steel (also known as tinplate), or options like ss201, 304, 316. You can select from graphite with carbon contents of 95%, 97%, 98%, or 99%.

Exceptional Features for High-Pressure Applications

  • Superior Adaptability and Durability: These gasket sheets offer excellent adaptability to various industrial conditions. They are highly durable, ensuring long - lasting performance in high - pressure and high - temperature settings.
  • Outstanding Sealing Performance: With a focus on high - pressure industrial valve sealing, our graphite gasket sheets provide reliable and effective sealing, preventing leaks and ensuring system integrity. There is no risk of delamination, and they offer a high yield.
  • Economical Solution: They serve as an economical choice for sealing in applications such as steam cycling or exhaust systems. Ideal for use as an exhaust or manifold gasket material.
  • High Oil - Resistance: The sheets exhibit good oil - resistance, making them suitable for applications where exposure to oils is expected.
  • Exceptional Temperature and Pressure Resistance: Specifically designed to withstand high temperatures and pressures, they are perfect for high - pressure industrial valve sealing requirements.

80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing

Wide Range of Applications

Designed for high - pressure industrial valve sealing, these flexible graphite gasket sheets are also suitable for oil sealing, gasket applications, and as cylinder head gaskets. They are commonly used in steam cycling and exhaust applications where high - pressure and high - temperature resistance are crucial.

Customizable Sizes

  • Thickness: Available in 1.0 - 6.0mm thicknesses. For thicker options, we offer the 3 + 2 type (with a product section from top to bottom in the order of Paper - Metal - Paper - Metal - Paper) and utilize multi - paper bonding technology.
  • Dimensions: Standard sizes include 500500mm, 5001000mm, 5001500mm, 10001000mm, 1000*1500mm. However, we also provide customized sizing to meet your specific needs.
If you can't find the exact product you need or require a bespoke material for your high - pressure industrial valve sealing project, don't hesitate to contact us.
Not sure if graphite is the best material for your application? Consult our gasket material selector or our guide to rubbers to make an informed decision.



Physical Property:

Item Data
Tensile Strength (MPa,min.) ≥30
Compressibility (%,) 10-20
Recovery (%) ≥35
150ºC, At IRM 903# for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
21ºC~30ºC, At B Fuel for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
Thickness Deviation(mm) 0.05


Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

Product Shows

80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing80 Shore A Flexible Graphite Sheet For High Pressure Industrial Valve Sealing
