High-Temperature Ceramic Fiber Gasket Solutions for Industrial Sealing Systems

Our premium 500℃ rated ceramic-reinforced sealing sheets offer superior performance for thermal energy applications. Available in thicknesses from 0.5mm to 5.0mm, we recommend selecting the minimal required thickness for optimal compression sealing in your specific operational conditions.

Technical Specifications:
This advanced composite material combines aramid polymer fibers with nitrile-based elastomers, engineered through thermocompression molding for exceptional durability. The formulation demonstrates excellent chemical resistance against hydrocarbons, lubricants, and aqueous solutions, maintaining integrity across multiple fluid exposure scenarios.

Performance Grades:
Three thermal classifications available (continuous operation ratings):
CSNXB150: -50℃ to +150℃ service range
CSNXB250: -40℃ to +250℃ thermal capacity
CSNXB350: -30℃ to +350℃ peak tolerance

Key Advantages:
• Certified asbestos-free composition (UKAS ISO 9001 verified)
• Multi-layer structural integrity prevents delamination
• Cost-effective production efficiency with high material yield
• Superior dimensional stability across thermal cycles
• Optimized for high-pressure flange applications

Industrial Implementations:
Ideal for sealing solutions in:

• Thermal power generation systems

• Combustion engine assemblies

• Pneumatic transmission units

• Marine propulsion infrastructure

• Petrochemical distribution networks

Customization Options:
Standard panel dimensions:
1500×1500mm | 1500×4500mm | 1270×3810mm
(Additional sizes available upon request)
Thickness tolerance: ±0.1mm
Custom-cut specifications and OEM packaging solutions

This engineered sealing solution meets rigorous international standards for industrial equipment, providing reliable performance in extreme temperature environments from cryogenic conditions to high-heat operations.

Physical Property:

Items			CSNXB150	CSNXB250	CSNXB350
Tensile Strength		Mpa	7.0	8.0	10.0
Compressibility		%	7-17
Recovery		≥%	40	45	50
Creep relaxation		≤%	40	35	30
Density		g/cm3	1.8±0.1
Flexibility at room temperature		Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h	Tensile Strength	MPa≥	5.0	6.0	7.0
	Weight Increase	≤%	30
Immersed into ASTM B at21-30ºC for 5h	Thickness Increase	-	0-20
	Flexibility	-	No crack
Working Temperature	Max/Continuous	ºC	200/150	300/250	350/300
Working Pressure	Max/Continuous	MPa	2.0/1.0	4.0/2.0	5.0/3.0

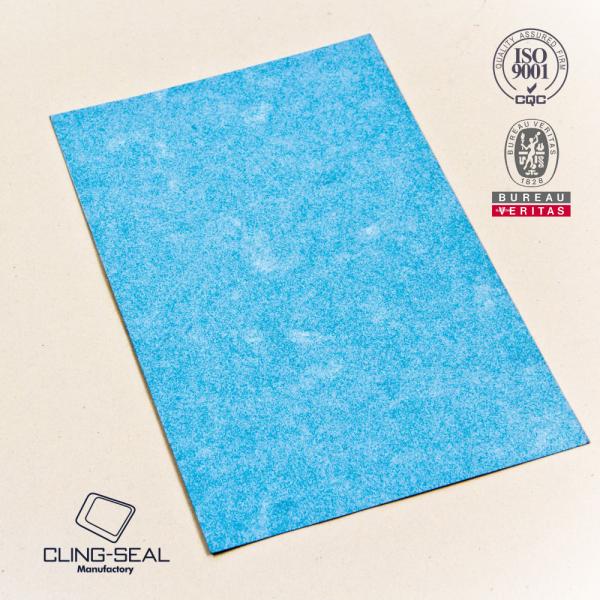

Product Shows


Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil
