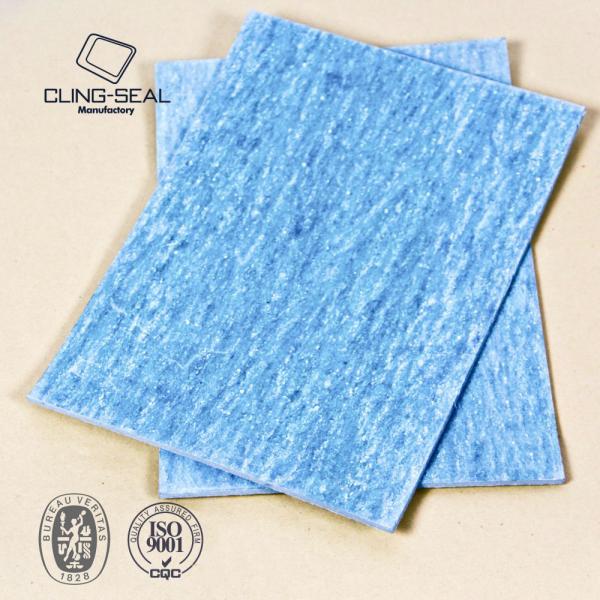

3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization
3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization
3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization
3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization
3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization
3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization
Specifications
Brand Name :
CLINGSEAL
Model Number :
NXB150
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
1.5-4 USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200Tons per month
Delivery Time :
10-20 days
Packaging Details :
pallets or wooden case
Color :
Red,Green,Black
Material :
jointing gasket sheet compressed with aramid firbre and NBR
Application :
Sealing
Density :
1.8 g/cm3
Compressibility :
7-17%
Recovery :
40%
Working Temperature :
150Deg
Pressure Resistance :
Up to 100 bar
Chemical Resistance :
Resistant to most chemicals
Thickness :
1.5mm
Elongation :
10%
Water Absorption :
Less than 5%
Temperature Resistance :
Up to 500°C
Feature :
Durable
Standard Size :
1000mm x 1000mm
Usual Color :
Green, Blue, Black, Red
Temperature :
200-500 Celsius Degrees
Type :
Gasket sheet
Pressure :
2.0-5.0Mpa
Description

3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization

3mm Industrial-Grade Non-Asbestos Gasket Sheet | 1000x1000mm Standard Dimension | Complimentary Samples for Custom Orders


Our premium non-asbestos composite sealing sheets offer thickness options from 0.5mm to 5mm. Optimal performance is achieved by selecting the minimum required thickness for specific operational demands.


Engineered with advanced aramid fibers and NBR compounds, these thermal-pressed sheets demonstrate:
● Superior hydrocarbon resistance (petrol/natural gas)
● Exceptional stability in aqueous environments
● Outstanding oil containment capabilities


Widely implemented in:

  • Power transmission systems

  • Marine propulsion assemblies

  • Compressed air systems

  • Pipeline networks

  • Heavy-duty diesel equipment


Material Composition:
Aramid fiber matrix | Synthetic elastomers | Mineral reinforcements
Production Process:
Hot-roll compression molding | Vulcanization treatment


Temperature tolerance classifications:
CSNXB150 (150°C) | CSNXB250 (250°C) | CSNXB350 (350°C)


✓ ISO9001 UKAS certified asbestos-free construction
✓ Cost-effective sealing solution with 98% material utilization
✓ Delamination-resistant layered structure
✓ Precision-engineered surface conformity
✓ Multi-industry validated performance


Standard dimensions:
1500×1500mm | 1500×2000mm | 1270×1270mm
1500×4500mm | 1270×3810mm
Custom fabrication available:
Thickness: 0.5-5.0mm (±0.1mm tolerance)
Sheet dimensions tailored to project requirements

Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0
3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization

Product Shows


Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil

3mm Thick Non Asbestos Jointing Sheet 1000x1000mm for Small Batch Customization
