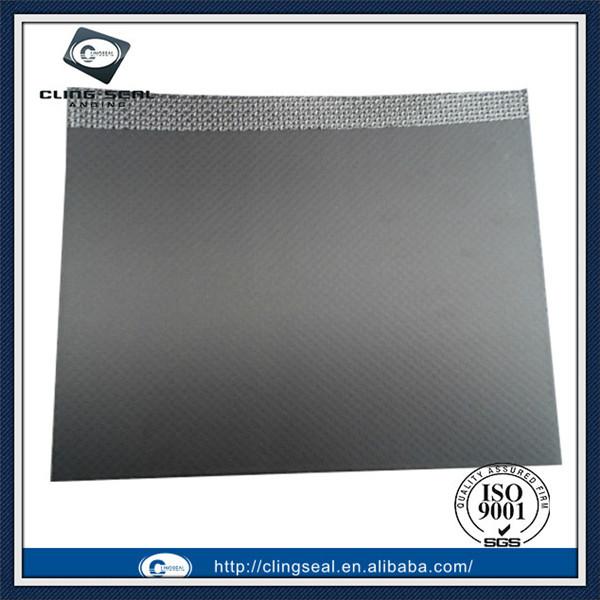

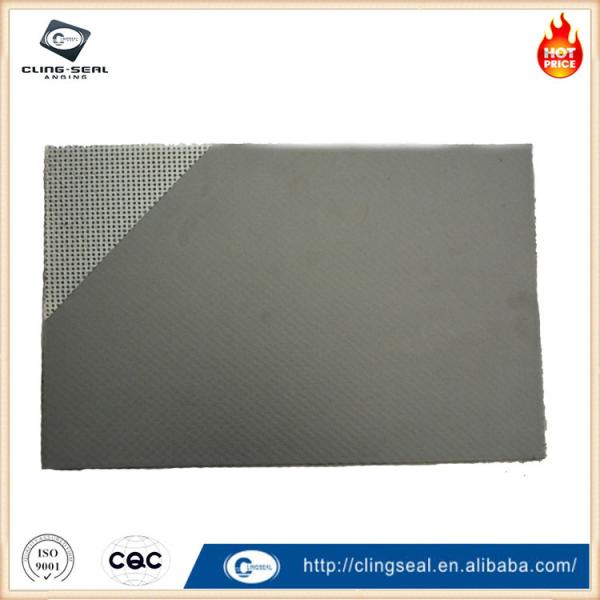

Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm
Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm
Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm
Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm
Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm
Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm
Specifications
Brand Name :
CLINGSEAL
Model Number :
CS1080T
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2.15-3.0 PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100Tons per month
Delivery Time :
1-4 weeks
Packaging Details :
pallets or wooden case
Grade :
Industrial Grade
Type :
Flexible Sheet,Composite Sheet,Reinforced Sheet
Application :
Suitable for high temperature and high pressure applications
C content (%) :
95%,97%,98%,99.9%,99%
Thickness :
1.0mm
Material :
Graphite
Density :
1.0-1.5 g/cm3
Hardness :
80 Shore A
Color :
Black
Product name :
Graphite sheet
Shape :
can be customized
Sample :
Availble
Width :
≤1500 mm
Thickness Deviation (mm) :
0.05
Reinforcement :
Metal mesh
Temperature Range :
-200℃ to 550℃
Pressure Range :
Up to 200 bar
Tensile Strength :
30 MPa
Standard Sizes :
1000mm x 1000mm, 1500mm x 1500mm, 2000mm x 2000mm
Compressibility :
35%
Flexural Strength :
40 MPa
Sealing Performance :
Excellent
Chemical Resistance :
Resistant to most chemicals
Recovery :
15%
Description

Tinplate & Stainless Steel Hybrid Reinforced Graphite Gasket

Hybrid-Reinforced Graphite Gaskets for Extreme Conditions
Upgrade your industrial sealing systems with our Tinplate & Stainless Steel Hybrid Reinforced Graphite Gasket—a high-performance solution engineered for demanding high-temperature, high-pressure environments. Available in thicknesses from 1.0mm to 6.0mm, our gaskets prioritize efficiency: select the thinnest feasible material for your application to optimize performance and cost.

Core Construction & Customization
Crafted with dual-layer pure flexible graphite sheets (95%-99% carbon content) bonded to a perforated tinplate (0.2-0.25mm) or stainless steel core (SS201/304/316), these hybrid gaskets resist delamination while delivering unmatched durability. For thicker requirements (3mm+), our proprietary 3+2 Multi-Layer Bonding Technology ensures structural integrity through alternating graphite-metal layers.

Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm

Key Advantages:
✔️ Superior thermal stability (ideal for steam cycles, exhaust systems, and oil sealing)
✔️ Exceptional pressure resistance and oil compatibility
✔️ Cost-effective sealing for cylinder heads, manifolds, and industrial flanges
✔️ Customizable sizes up to 1500x1500mm or tailored dimensions

Technical Specifications:

  • Thickness: 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm

  • Standard Sizes: 500x500mm, 500x1000mm, 1000x1000mm, 1000x1500mm

  • Core Options: Tinplate (carbon steel), SS201, 304, 316 stainless steel

Why Choose Our Graphite Gaskets?
Designed for critical applications in energy, automotive, and heavy machinery sectors, our Tinplate & Stainless Steel Hybrid Reinforced Graphite Gasket combines adaptability with long-term reliability. Unsure if graphite suits your needs? Explore our Gasket Material Selector Guide or consult our engineers for tailored recommendations.

Request a Quote or Custom Order Today!
Need non-standard sizes, specialized materials, or technical support? Contact us for rapid prototyping and bulk-order solutions. Elevate your sealing performance—partner with a supplier trusted by global OEMs.



Physical Property:

Item Data
Tensile Strength (MPa,min.) ≥30
Compressibility (%,) 10-20
Recovery (%) ≥35
150ºC, At IRM 903# for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
21ºC~30ºC, At B Fuel for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
Thickness Deviation(mm) 0.05


Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

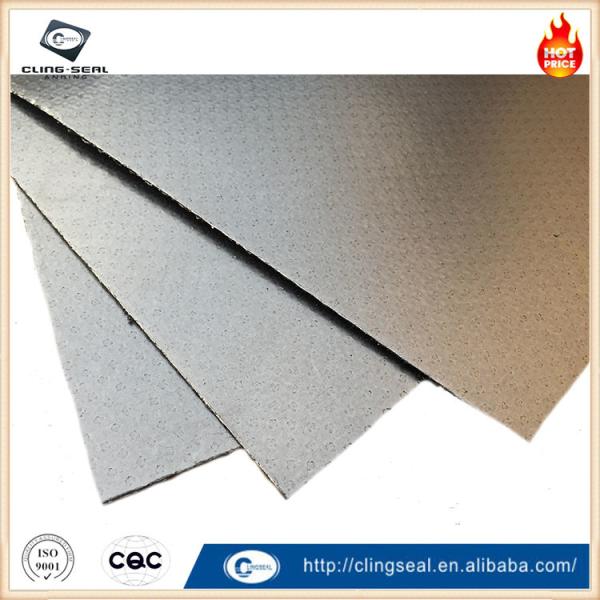

Product Shows

Tinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mmTinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mmTinplate Stainless Steel Hybrid Reinforced Graphite Sheet 1.0mm
