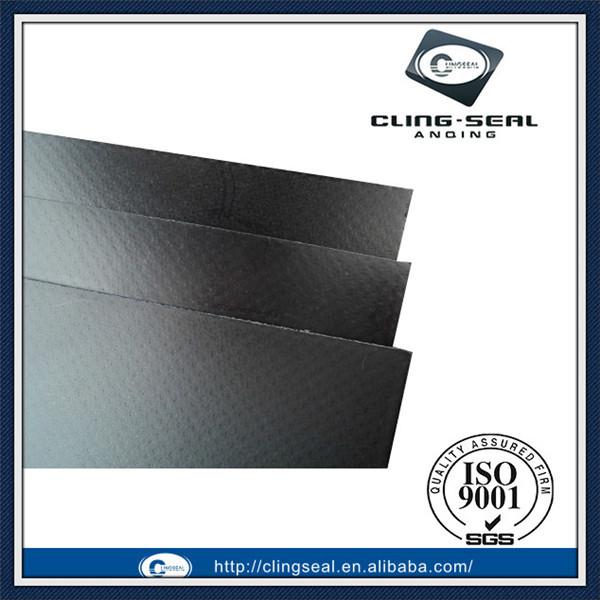

Composite Reinforced Graphite Gasket Material Explosion Proof
Composite Reinforced Graphite Gasket Material Explosion Proof
Composite Reinforced Graphite Gasket Material Explosion Proof
Composite Reinforced Graphite Gasket Material Explosion Proof
Composite Reinforced Graphite Gasket Material Explosion Proof
Composite Reinforced Graphite Gasket Material Explosion Proof
Specifications
Brand Name :
CLINGSEAL
Model Number :
CS1080T
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
USD 2.15-3.0 PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100Tons per month
Delivery Time :
1-4 weeks
Packaging Details :
pallets or wooden case
Grade :
Industrial Grade
Type :
Gasket Sheet
Application :
Suitable for high temperature and high pressure environments
C content (%) :
99.9%,99%
Material :
Graphite
Color :
Black
Density :
1.0 g/cm3
Hardness :
80 Shore A
Shape :
can be customized
Width :
≤1500 mm
Sample :
Availble
Chemical Resistance :
Excellent
Thermal Conductivity :
1.5 W/mK
Flexural Strength :
15 MPa
Tensile Strength :
3.5 MPa
Sealing Performance :
High
Thickness :
1.5mm
Compressive Strength :
25 MPa
Pressure Range :
Up to 100 bar
Elongation At Break :
5%
Temperature Range :
-200°C to 500°C
Description

Explosion-Proof Reinforced Graphite Composite Gasket

Premium Sealing Solution for Extreme Conditions

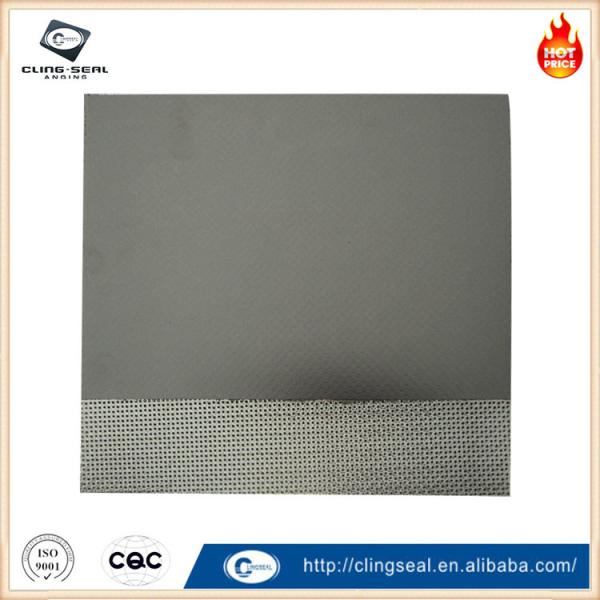

Our Explosion-Proof Reinforced Graphite Composite Gasket delivers unmatched reliability in high-temperature, high-pressure environments. Engineered with dual-layer flexible graphite sheets bonded to a perforated metal core (0.2–0.25mm carbon steel/SS201/304/316), this gasket ensures leak-free performance in steam cycling, exhaust systems, and oil sealing applications. Available in thicknesses from 1.0–6.0mm (recommend selecting the thinnest viable option for optimal efficiency), it combines durability with cost-effectiveness.

Key Features

  • Explosion-Proof Design: Reinforced metal core prevents delamination and enhances structural integrity under extreme pressures.

  • High-Temperature Resistance: Withstands temperatures up to 3000°F (1649°C), ideal for steam, exhaust, and combustion systems.

  • Oil & Corrosion Resistance: Maintains sealing efficiency in oil-rich or chemically aggressive environments.

  • Customizable Construction: Choose from carbon steel, stainless steel (201/304/316), or multi-layer bonding (e.g., 3+2 Paper-Metal-Paper-Metal-Paper).

  • High Carbon Content: 95–99% pure graphite ensures superior adaptability and long-term stability.

Composite Reinforced Graphite Gasket Material Explosion Proof

Technical Specifications

  • Thickness: 1.0–6.0mm (standard) | Customizable multi-layer designs available

  • Sheet Sizes: 500x500mm, 500x1000mm, 500x1500mm, 1000x1000mm, 1000x1500mm

  • Materials: Flexible graphite + perforated metal core (tinplate, SS201/304/316)

Applications

  • Oil & gas pipeline gaskets

  • Power generation turbine seals

  • Automotive exhaust manifold gaskets

  • Industrial cylinder head seals

Why Choose Our Explosion-Proof Reinforced Graphite Composite Gasket?
Optimized for durability and cost-efficiency, our gaskets are trusted in industries requiring explosion-proof certifications and precision sealing. Custom sizes, materials, and layering configurations ensure compatibility with your unique operational demands.

Need Guidance?
Unsure if graphite suits your application? Explore our [Gasket Material Selector] or contact our engineers for tailored recommendations.

Order Now or Request Customization
Elevate your sealing performance with our industry-leading Explosion-Proof Reinforced Graphite Composite Gasket—available for immediate purchase or bespoke production.



Physical Property:

Item Data
Tensile Strength (MPa,min.) ≥30
Compressibility (%,) 10-20
Recovery (%) ≥35
150ºC, At IRM 903# for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
21ºC~30ºC, At B Fuel for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
Thickness Deviation(mm) 0.05


Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas

Customer Service

We are happy to answer any questions that you might have about this product. Please contact us for more information.

Product Shows

Composite Reinforced Graphite Gasket Material Explosion ProofComposite Reinforced Graphite Gasket Material Explosion ProofComposite Reinforced Graphite Gasket Material Explosion Proof
