Specifications
Brand Name :
CLINGSEAL
Model Number :
NXB150
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
1.5-4 USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200Tons per month
Delivery Time :
10-20 days
Packaging Details :
pallets or wooden case
Color :
Gray
Material :
Non Asbestos
Application :
Sealing for various industrial equipment and pipelines
Density :
1.8 g/cm3
Compressibility :
7-17%
Recovery :
50%
Working Temperature :
150Deg
Pressure Range :
Up to 150 bar
Sealing Performance :
High
Chemical Resistance :
Good
Feature :
100% Not Including Asbestos

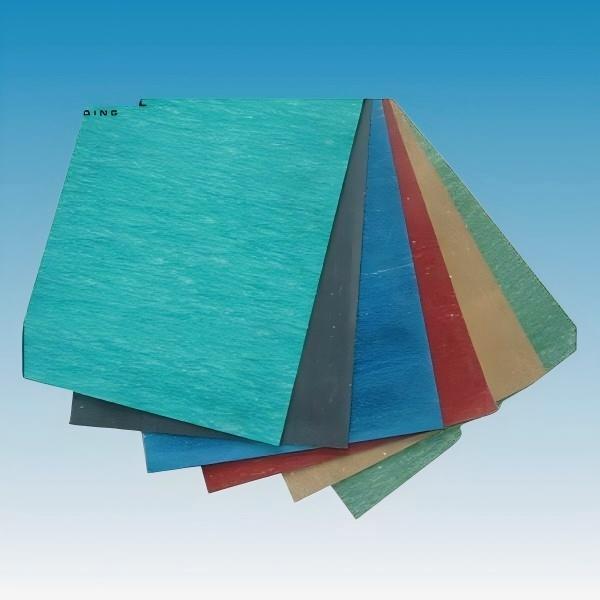

Usual Color :
Green, Blue, Black, Red
Elongation At Break :
150-200%
Tensile Strength :
7-10 MPa
Temperature Range :
-100°C to 550°C
Pressure :
2.0-5.0Mpa
Fluid Resistance :
Excellent
Hardness :
70-80 Shore A
Product Type :
Gasket Sheet
Width :
1m
Temperature Resistance :
Up to 550℃
Fluid Compatibility :
Water, oil, gas, steam, etc.
Standard Size :
1000mm x 1000mm
Ph Range :
2-12
Description

High-Performance Flat Gasket Sheet Non-Asbestos Material Injection Molded Rubber and Plastic, Custom Non-Standard Industrial Gaskets

On this page, you can purchase non-asbestos jointing gaskets with a thickness ranging from 0.5mm to 5mm. As a general rule, it’s wise to pick the thinnest material that fits your specific application needs. This not only helps save costs but also has the potential to boost your equipment’s overall performance.​
General Properties of Non-Asbestos Jointing Gasket Sheet​
Non-asbestos jointing gaskets are made by compressing aramid fiber and nitrile butadiene rubber (NBR), giving them excellent oil resistance. They’re also well-suited for scenarios where they might come into contact with substances like water, gasoline, or natural gas.​
Thanks to these properties, non-asbestos jointing gaskets are widely used in various fields. You’ll often find them in air compressors, diesel engines, and pipelines, and they work well in a wide range of general industrial and marine environments.​
Product Information​
The gasket is made from a blend of aramid fiber, non-asbestos mineral fiber, synthetic fiber, and synthetic oil-resistant rubber. Its manufacturing process includes hot-roller compression followed by vulcanization, which guarantees high quality and long-lasting performance.

The following table summarizes the general properties and suitable application media:

Property Details
Oil Resistance Excellent
Applicable Media Water, Petrol, Natural Gas
Product Features​
  • Strong Adaptability and Durability: The gasket adapts well to different working conditions and is highly durable. It delivers top-notch sealing performance to prevent leaks, won’t delaminate during use, and has a high yield rate—meaning less waste during production and installation.​
  • Cost-Effective Option: It’s an economical choice for sealing gaskets and exhaust manifold gasket materials, letting you get high-quality sealing at a reasonable price.​
  • Quality Guaranteed: Certified by ISO9001 UKAS, the product is 100% asbestos-free, ensuring it’s environmentally friendly and safe for users.​
  • Excellent Oil Resistance: Its good oil resistance extends its service life in oil-related applications.

Product Types

Based on different temperature resistance levels (the numbers represent peak temperatures), the product comes in the following types:

Product Type Peak Temperature
CSNXB150 150°C
CSNXB250 250°C
CSNXB350 350°C
Product Applications​
The gasket is suitable for multiple uses, including:​
  • Engine: Ensures tight sealing in engines to prevent oil and gas leaks, maintaining engine efficiency.​
  • Air Compressor: Helps keep air compressors airtight, improving their performance.​
  • Gearbox: Provides reliable sealing in gearboxes, protecting internal components from contaminants.​
  • Pipe and Flange Sealing: Used to seal pipelines and flanges, preventing fluid leaks in industrial and other systems.​
Product Sizes​
  • Thickness: Ranges from 0.5mm to 5.0mm, so you can choose the most suitable thickness for your needs.​
  • Standard Sizes: We offer several standard sizes, such as 1500×1500mm, 1500×2000mm, 1500×4500mm, 1270×1270mm, and 1270×3810mm.​
  • Custom Sizes: In addition to standard sizes, we accept custom size orders. Just provide your specific size requirements, and we’ll manufacture the gasket to match your exact specifications.​

Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0
High-Performance Flat Gasket Sheet Non-Asbestos Material Injection Molded Rubber and Plastic, Custom Non-Standard Industrial GasketsHigh-Performance Flat Gasket Sheet Non-Asbestos Material Injection Molded Rubber and Plastic, Custom Non-Standard Industrial GasketsHigh-Performance Flat Gasket Sheet Non-Asbestos Material Injection Molded Rubber and Plastic, Custom Non-Standard Industrial GasketsHigh-Performance Flat Gasket Sheet Non-Asbestos Material Injection Molded Rubber and Plastic, Custom Non-Standard Industrial Gaskets

Product Shows

Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil
