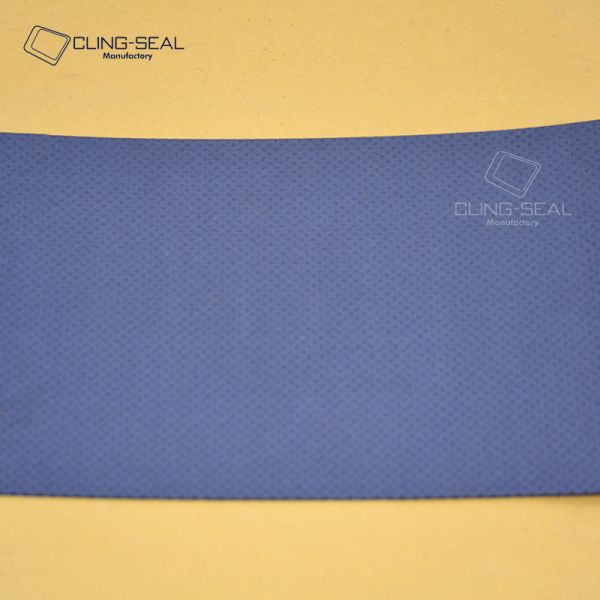

Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Composite sheet for diesel engine gaskets, heavy machinery, and industrial equipment, non-asbestos material with resistance to extreme heat and pressure
Specifications
Brand Name :
ClingSeal
Model Number :
CS1070T
Certification :
ISO9001 UKAS, 100% no asbestos
Place of Origin :
CHINA
MOQ :
500KGS
Price :
1.07 USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100Tons per month
Delivery Time :
10-20 days
Packaging Details :
wooden case
Customer Service :
Happy to answer any questions
Material :
Non Asbestos
Product Formation :
Two sides non asbestos beater sheet with perforated metal insert
Application :
Sealing and Gasketing
Shape :
Sheet
Features :
Good adaptability, durability, sealing, no delamination, high yield, economical, good oil-resistance
Size Options :
Thickness 1.0-6.0mm, Size variations: 500*500mm, 500*1000mm, 500*1500mm, 1000*1000mm, 1000*1500mm, Customizable
Water Resistance :
Good
Chemical Resistance :
Good
Length :
1000mm
Oil Resistance :
Good
Temperature Resistance :
500℃
Width :
1000mm
Thickness :
0.5mm-5mm
Density :
1.8g/cm3
Recovery :
≥40%
Compressibility :
≤12%
Tensile Strength :
≥10MPa
Pressure Resistance :
≥10MPa
Elongation At Break :
≥200%
Compression Set :
≤35%
Hardness :
70 Shore A
Temperature Range :
-30℃ to +120℃
Acid Resistance :
Excellent
Alkali Resistance :
Good
Compression Strength :
20MPa
Color :
Grey
Compression Ratio :
≤12%
Description

Composite Sheet for Diesel Engine Gaskets, Heavy Machinery, and Industrial Equipment – Non-Asbestos, Extreme Heat & Pressure Resistant

Overview

Our ClingSeal Composite Non-Asbestos Gasket Sheet is engineered to provide robust sealing performance under the most demanding conditions. Developed as a safe alternative to traditional asbestos-based materials, it offers exceptional mechanical strength, chemical resistance, and heat endurance—making it an optimal choice for diesel engines, heavy-duty machinery, and diverse industrial sealing requirements.

Unlike conventional gasket sheets, this product incorporates a precision-perforated metal core between dual layers of premium non-asbestos beater sheet. This advanced structure maximizes dimensional stability, prevents delamination under load, and ensures a consistently tight seal in high-pressure, high-temperature environments.

Key Specifications

Parameter Details
Product Name ClingSeal CS1070T Non-Asbestos Gasket Sheet
Material Composition Non-asbestos fiber sheet laminated on both sides of a perforated metal insert
Metal Insert Options Carbon Steel (0.20–0.25 mm), Stainless Steel SS201 / SS304 / SS316
Asbestos Content 0% – ISO9001 UKAS Certified
Thickness (Single Sheet) 0.5 mm – 3.0 mm
Overall Thickness Range 1.0 mm – 6.0 mm
Available Sheet Sizes 500×500 mm, 500×1000 mm, 500×1500 mm, 1000×1000 mm, 1000×1500 mm, or custom dimensions
Max Operating Temperature 350 °C
Oil Resistance Excellent
Minimum Order Quantity 500 KGS
Monthly Supply Capacity 100 tons
Origin China

Performance Highlights

Feature Benefit
Non-Asbestos Composition Eliminates asbestos-related health hazards while maintaining sealing performance
Perforated Metal Core Strengthens sheet structure, resists blowout under extreme load
High Heat Tolerance Suitable for applications up to 350 °C
Oil & Fuel Resistance Ideal for engines and equipment in contact with lubricants or hydrocarbons
Custom Sizing Available Accommodates unique industrial and OEM specifications
No Delamination Ensures long-term structural stability
Economical & High Yield Reduced waste during cutting and installation

Application Scope

The ClingSeal CS1070T sheet is widely deployed in environments requiring a reliable, asbestos-free sealing medium:

  • Automotive: Cylinder head gaskets, intake/exhaust manifold seals, oil pan gaskets

  • Marine Engines: Engine head sealing and exhaust system applications

  • Heavy Equipment: Bulldozers, loaders, cranes, and mining machinery

  • Industrial: Compressors, pumps, heat exchangers, and chemical process equipment

Product Advantages at a Glance

Advantage Details
Health & Safety Compliance Fully compliant with asbestos-free safety regulations
Mechanical Strength Withstands vibration, torque, and mechanical stress
Temperature Stability Maintains sealing integrity in fluctuating temperatures
Easy Fabrication Can be die-cut or CNC-machined for custom gasket shapes
Versatility Performs reliably in oil, steam, water, natural gas, and chemical media

Ordering & Delivery

Detail Information
Minimum Order Quantity 500 KGS
Price Approx. USD 1.07 / KG (subject to volume)
Payment Terms T/T, Western Union, MoneyGram
Production Lead Time 10–20 days
Packaging Plastic film wrap + heavy-duty cardboard + wooden case reinforcement
Shipping UPS, FedEx, or freight forwarding; tracking number provided

After-Sales Support

We back every ClingSeal gasket sheet with professional technical support:

  • Product Selection Guidance – Match the right sheet to your application requirements

  • Installation Best Practices – Tips to ensure a perfect seal and extended service life

  • Performance Troubleshooting – Assistance with any in-service sealing issues

  • Training Resources – Technical documentation and operator training sessions

  • Warranty & Quality Assurance – Full compliance with ISO standards and batch inspection

Choose ClingSeal CS1070T Non-Asbestos Gasket Sheet for a combination of safety, performance, and adaptability—engineered to withstand the extremes of temperature, pressure, and chemical exposure in industrial and engine environments.
