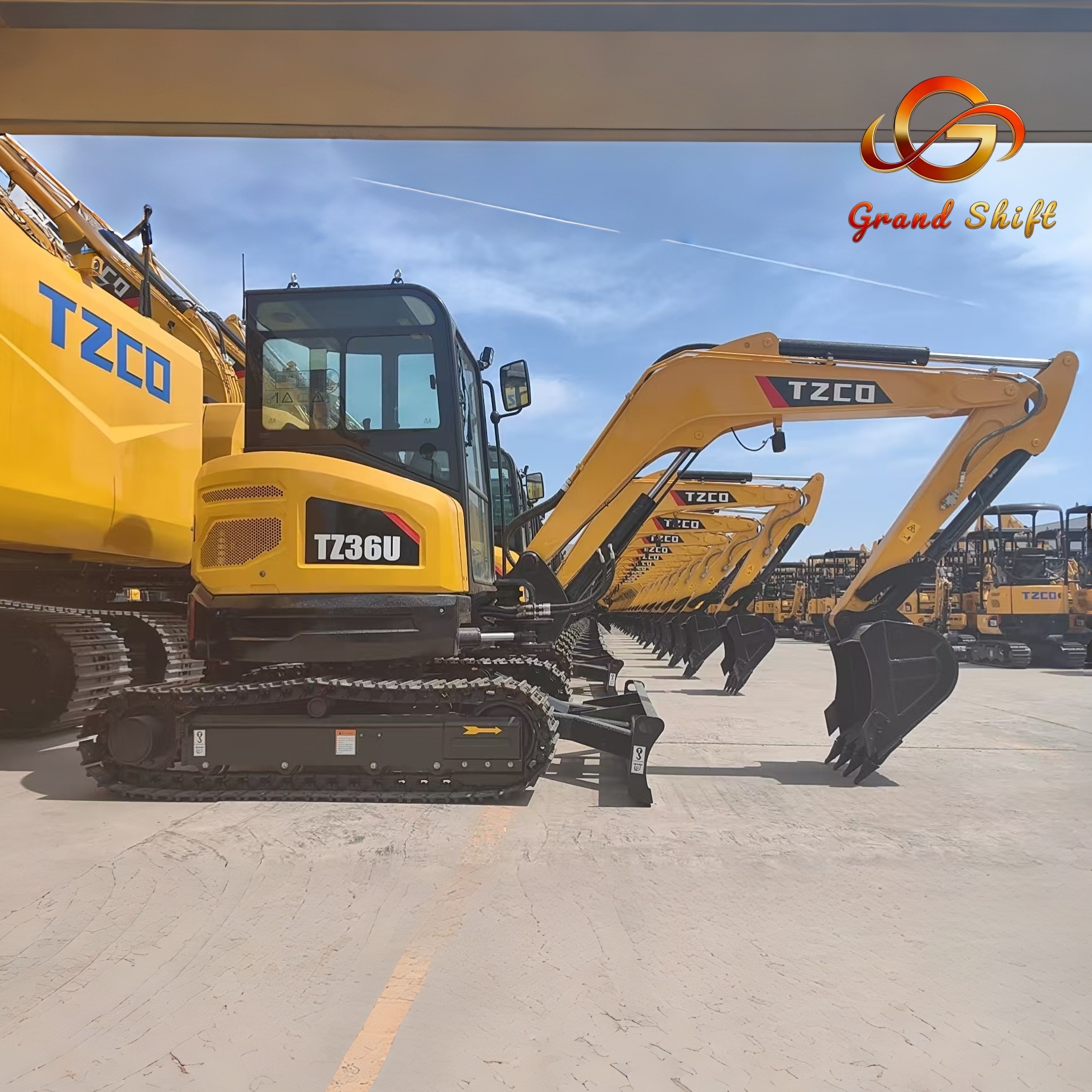

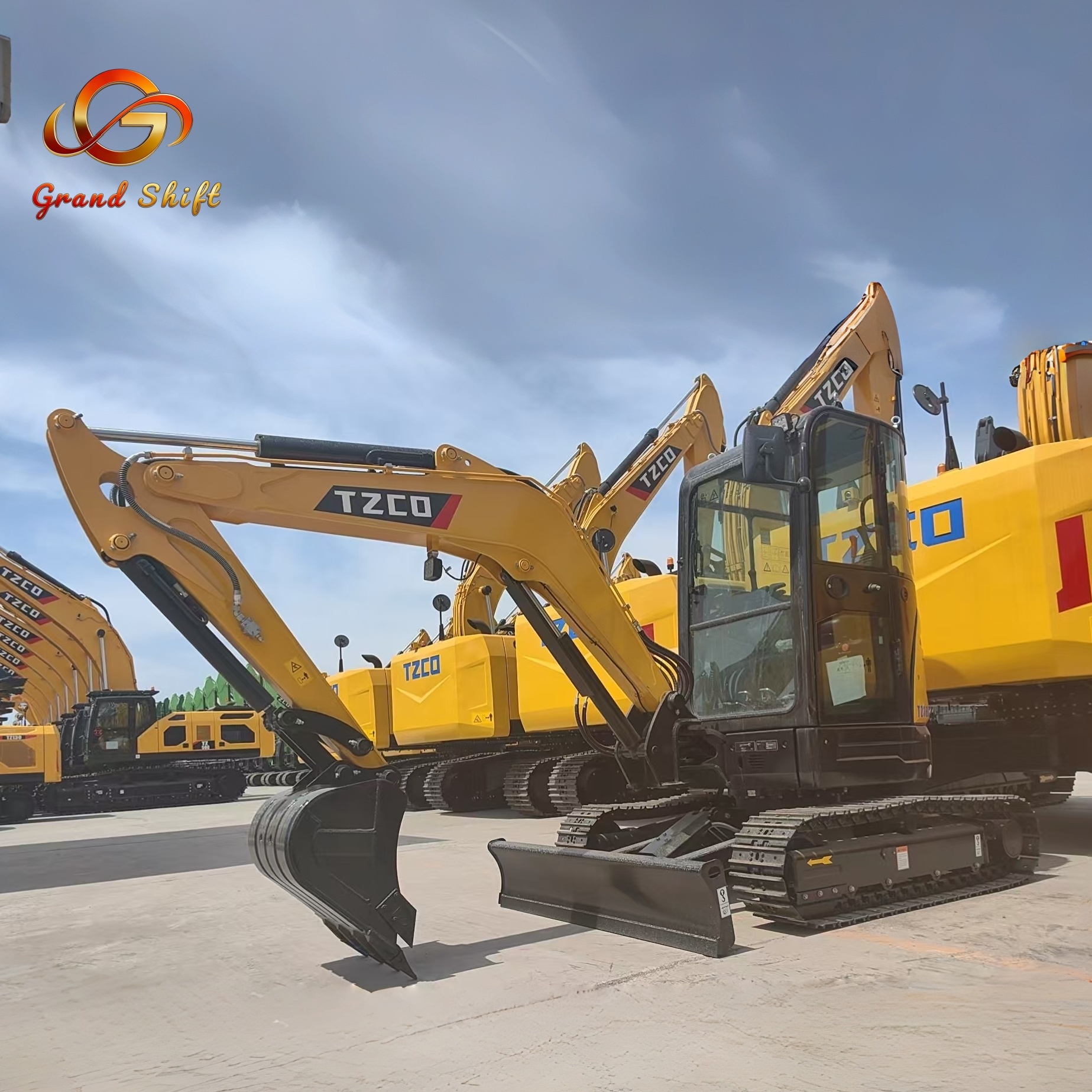

TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction
Specifications
Brand Name :
TZ
Model Number :
TZ36U
Certification :
CE, ISO 9001, ISO 14001, EPA, EAC, SGS, TUV
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
14,500.00-16,500.00 USD (Contact us for a detailed quote)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30-50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Description

Product Overview



Item Description
Product Model TZ36U
Type Crawler Hydraulic Excavator
Operating Weight 3.6 ton (3600 kg)
Bucket Capacity 0.13 m³
Engine Brand Yanmar
Rated Power 22.2 kW / 2400 rpm
Emission Standard China IV
Application Construction, farming, municipal engineering, landscaping

Key Specifications



Category Parameter Value
Basic Information Model TZ36U

Operating Weight 3600 kg

Bucket Capacity 0.13 m³
Engine (Yanmar) Engine Brand Yanmar

Direct Injection ✓

4-Stroke ✓

Water Cooled ✓

Number of Cylinders 3

Rated Power 22.2 kW / 2400 rpm

Displacement 1.6 L
Fluid Capacities Fuel Tank Capacity 40 L

Hydraulic Tank Capacity 40 L

Engine Oil Capacity 6 L
Hydraulic System Main Pump Rated Flow 108 L/min

Main Valve Pressure 25 MPa

Travel System Pressure 25 MPa

Swing System Pressure 25 MPa

Pilot System Pressure 3.9 MPa
Performance Travel Speed (High/Low) 4.6 / 2.6 km/h

Swing Speed 10 r/min

Gradeability 35°

Ground Pressure 32 kPa

Bucket Digging Force 30.1 kN

Arm Digging Force 19.9 kN

Max. Traction Force 38 kN
Working Range Max. Digging Height 4925 mm

Max. Dumping Height 3475 mm

Max. Digging Depth 3135 mm

Max. Vertical Digging Depth 2280 mm

Max. Digging Reach on Ground 5386 mm

Min. Swing Radius 860 mm
Dimensions Overall Length 4875 mm

Overall Width 1730 mm

Overall Height 2550 mm

Turntable Width 1543 mm

Track Length 2122 mm

Chassis Width 1730 mm

Track Shoe Width 300 mm

Track Length on Ground 1640 mm

Track Gauge 1430 mm

Counterweight Clearance 590 mm

Min. Ground Clearance 295 mm

Min. Tail Swing Radius 860 mm

Track Height 524 mm
Standard Boom & Arm Boom Length 2540 mm

Arm Length 1400 mm

Key Features



Feature Description
Zero Tail Swing Min. tail swing radius of 860 mm allows safe and efficient operation in confined spaces
Powerful Yanmar Engine 3-cylinder Yanmar diesel engine delivers 22.2 kW power with low fuel consumption
High Digging Force Bucket digging force of 30.1 kN and arm digging force of 19.9 kN for superior performance
Efficient Hydraulic System Main pump flow of 108 L/min with 25 MPa system pressure ensures smooth and responsive operation
Compact Design Overall width of 1730 mm and height of 2550 mm for easy transport and storage
Stable Undercarriage Reinforced track frame with 300 mm track shoes provides excellent stability on rough terrain
Comfortable Operation Ergonomically designed cab with good visibility and low noise levels
Easy Maintenance Convenient access to daily maintenance points with large opening covers

Main Application Areas



Application Area Description
Urban Construction Ideal for narrow street excavation, pipe laying, and foundation work
Farming & Agriculture Suitable for land leveling, ditch digging, and orchard cultivation
Municipal Engineering Perfect for road repair, drainage works, and small-scale earthmoving
Landscaping Excellent for garden construction, tree planting, and site beautification
Small Mining & Quarry Capable of light material handling and loading in small quarries
Demolition Zero tail swing design enables operation in building demolition sites

Note: Specifications are subject to change due to continuous product improvement. Please refer to the actual product.

TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction

TZ36U 3.6Ton Mini Excavator with Zero Tail Swing and Yanmar Engine for Landscaping and Construction

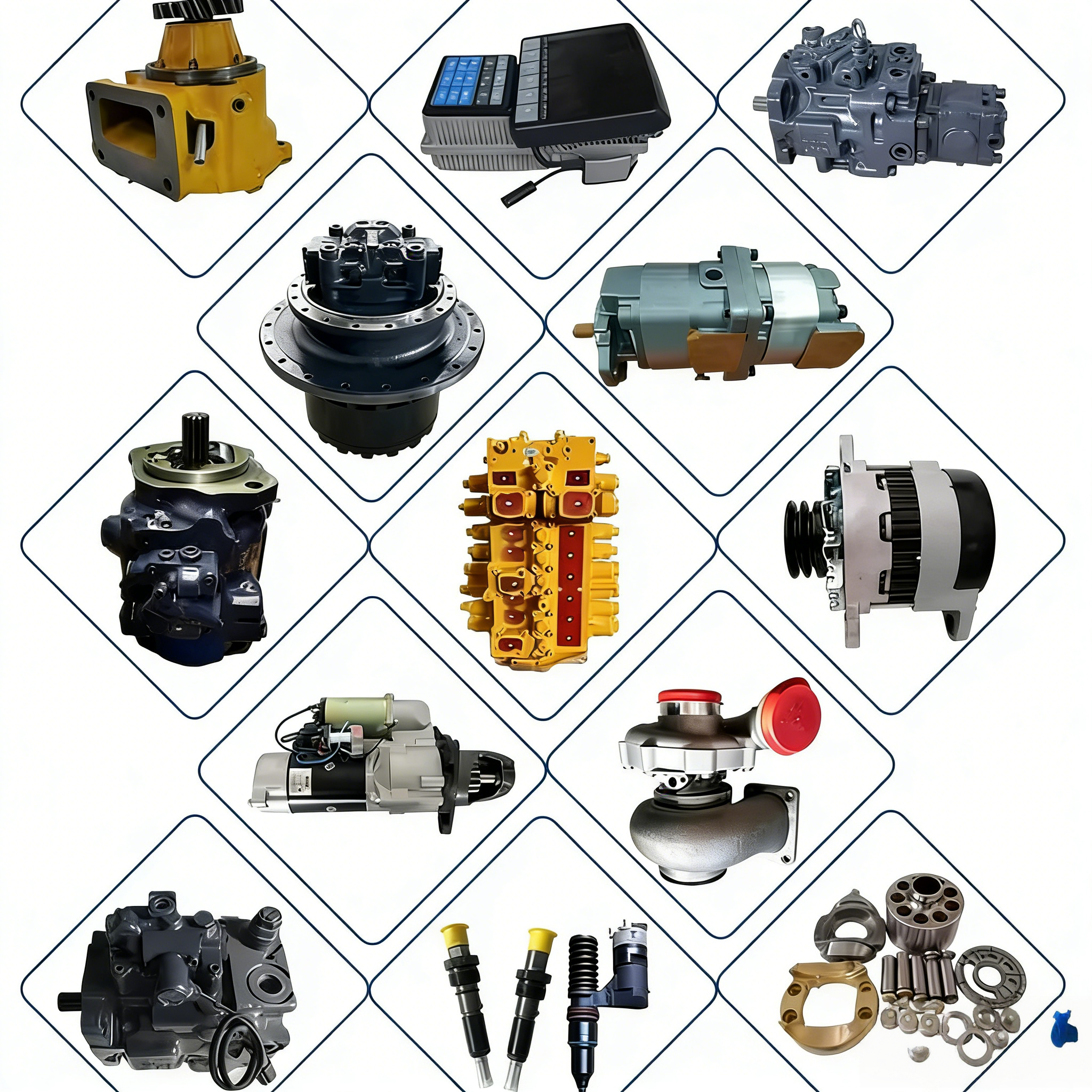

Excavator Parts
