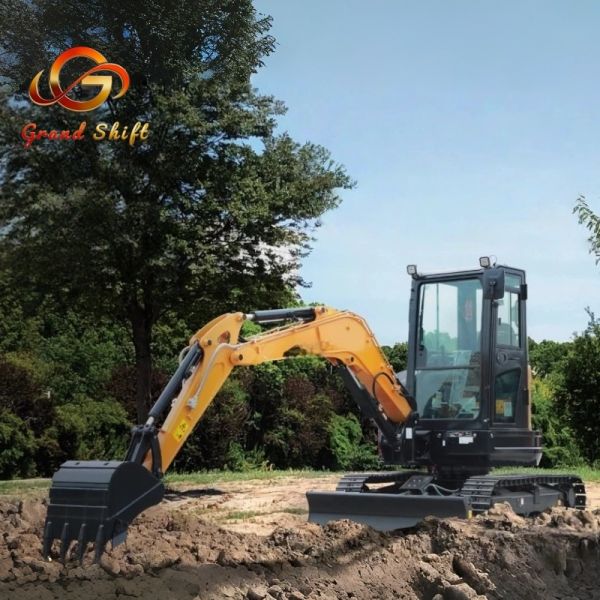

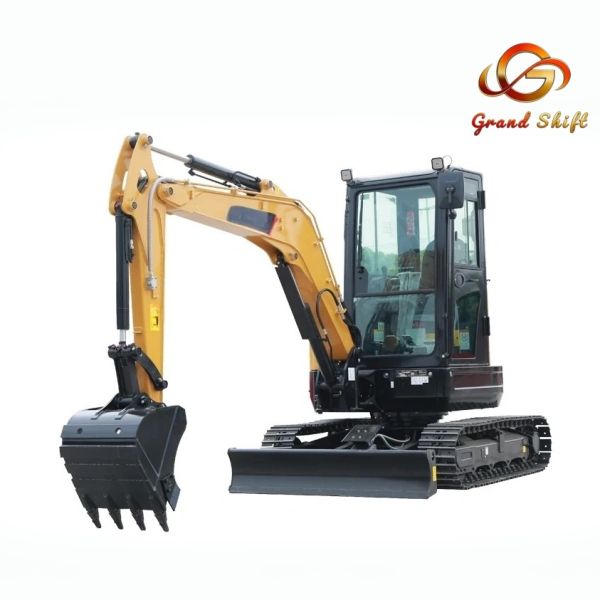

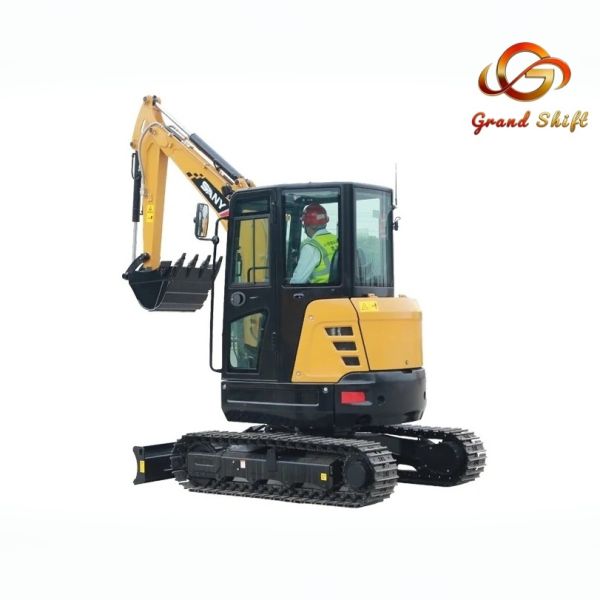

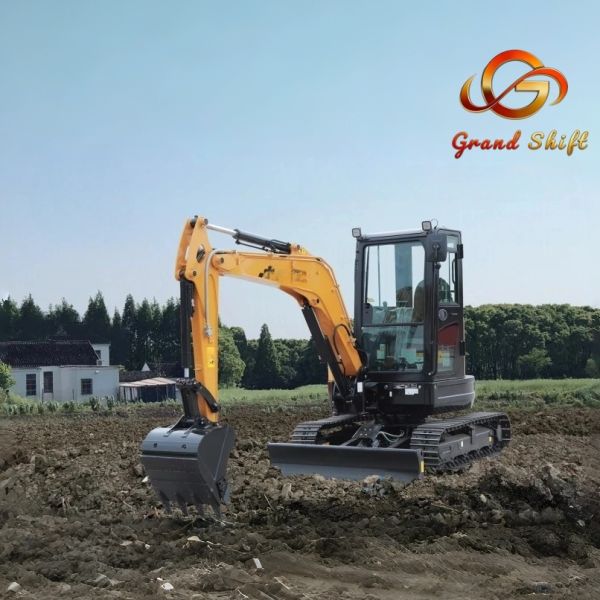

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Specifications
Brand Name :
SANY
Model Number :
SY35U
Certification :
CE, ISO 9001, ISO 14001, EPA, EAC, SGS, TUV
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
6,000 –16,000 USD (Contact us for a detailed quote)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30-50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Description
Basic Parameters
ParameterSpecification
Operating Weight3780 kg
Standard Bucket Capacity0.12 m³
Rated Power20.2 kW / 2200 rpm
Max. Torque104.5 Nm / 1320 rpm
Displacement1.642 L
Performance
ParameterSpecification
Bucket Digging Force30.4 kN
Arm Digging Force18.2 kN
Swing Speed10 rpm
Travel Speed4.2 km/h (High) / 2.4 km/h (Low)
Gradeability58%
Ground Pressure33-35 kPa
Dimensions
ParameterSpecification
Overall Length (Transport)4905 mm
Overall Width (Transport/Operation)1720 mm
Overall Height (Transport)2555 mm
Tail Swing Radius860 mm
Track Length on Ground1645 mm
Track Width300 mm
Working Range
ParameterSpecification
Max. Digging Height4865 mm
Max. Dumping Height3445 mm
Max. Digging Depth3115 mm
Max. Digging Radius5480 mm
Min. Swing Radius2465 mm
Fluid Capacities
ParameterSpecification
Fuel Tank50 L
Hydraulic Oil Tank40 L
Engine Oil6 L
Coolant (Antifreeze)3.8 L
Travel Reduction Gear Oil2 × 0.7 L

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging

Spare Parts
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Packaging & Shipping
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging
Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging

Send your message to this supplier
Send Now

Sy35u Mini Excavator with Zero Tail Swing CE Certificated and 3780 kg Operating Weight for Efficient Digging

Ask Latest Price
Product Detail
Brand Name :
SANY
Model Number :
SY35U
Certification :
CE, ISO 9001, ISO 14001, EPA, EAC, SGS, TUV
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
6,000 –16,000 USD (Contact us for a detailed quote)
