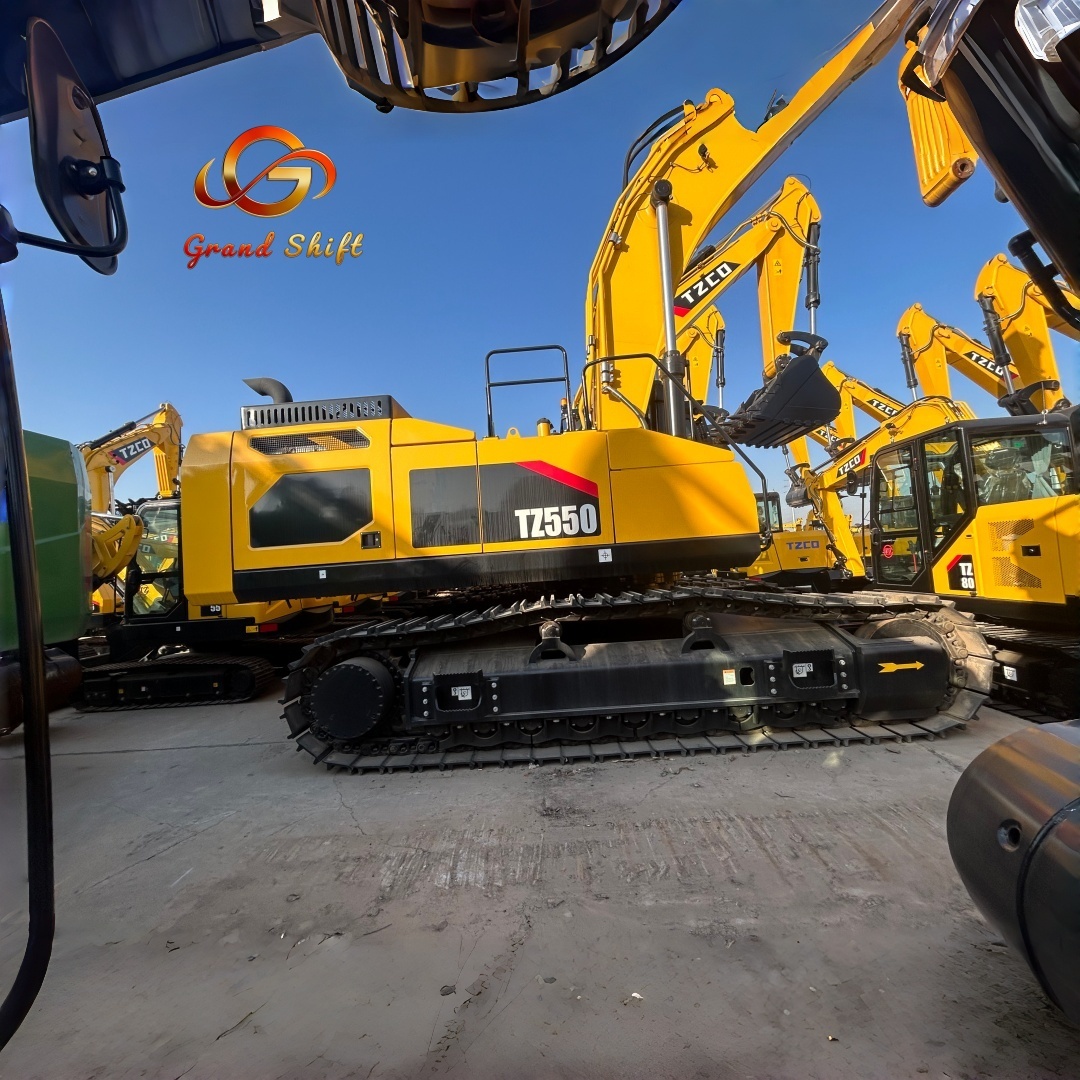

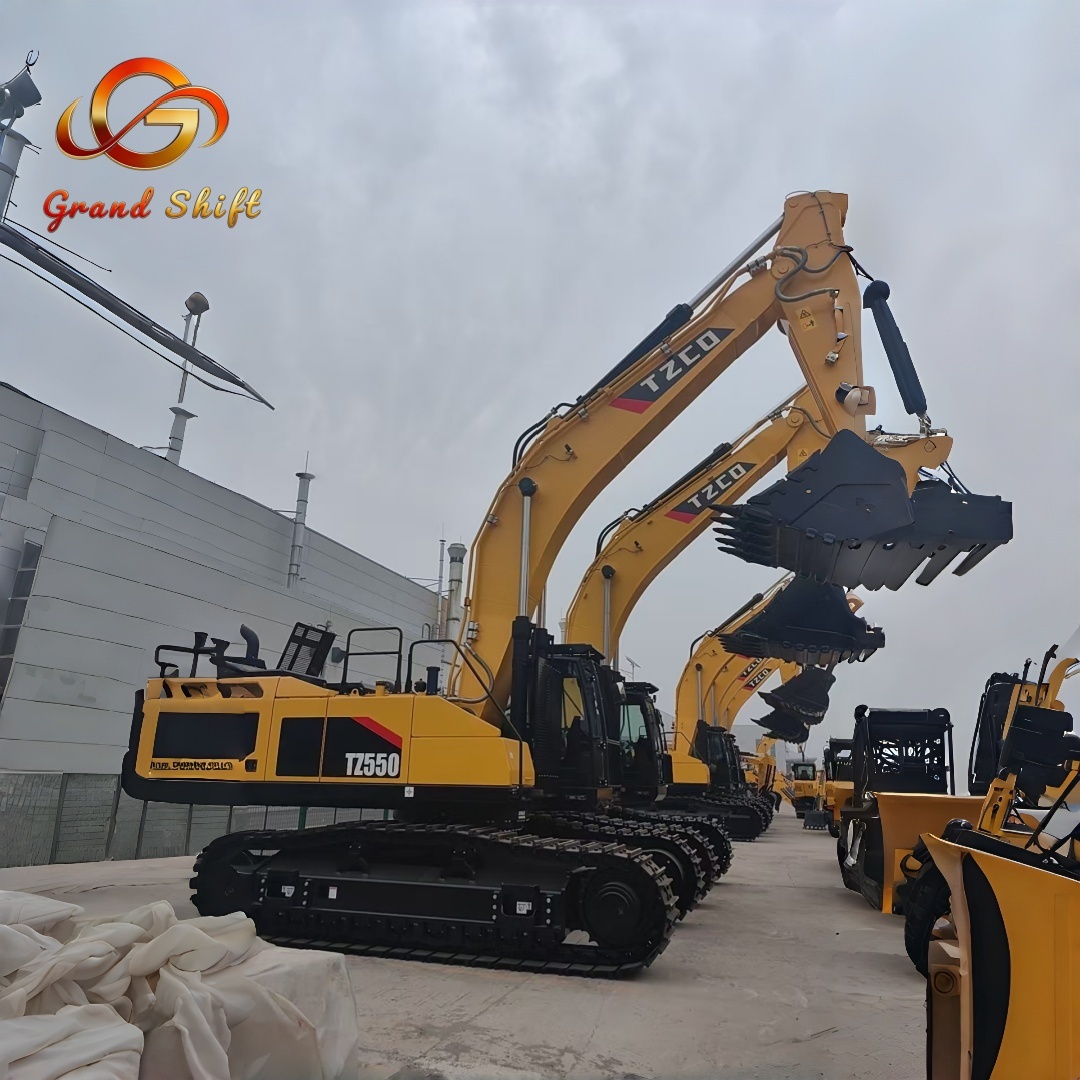

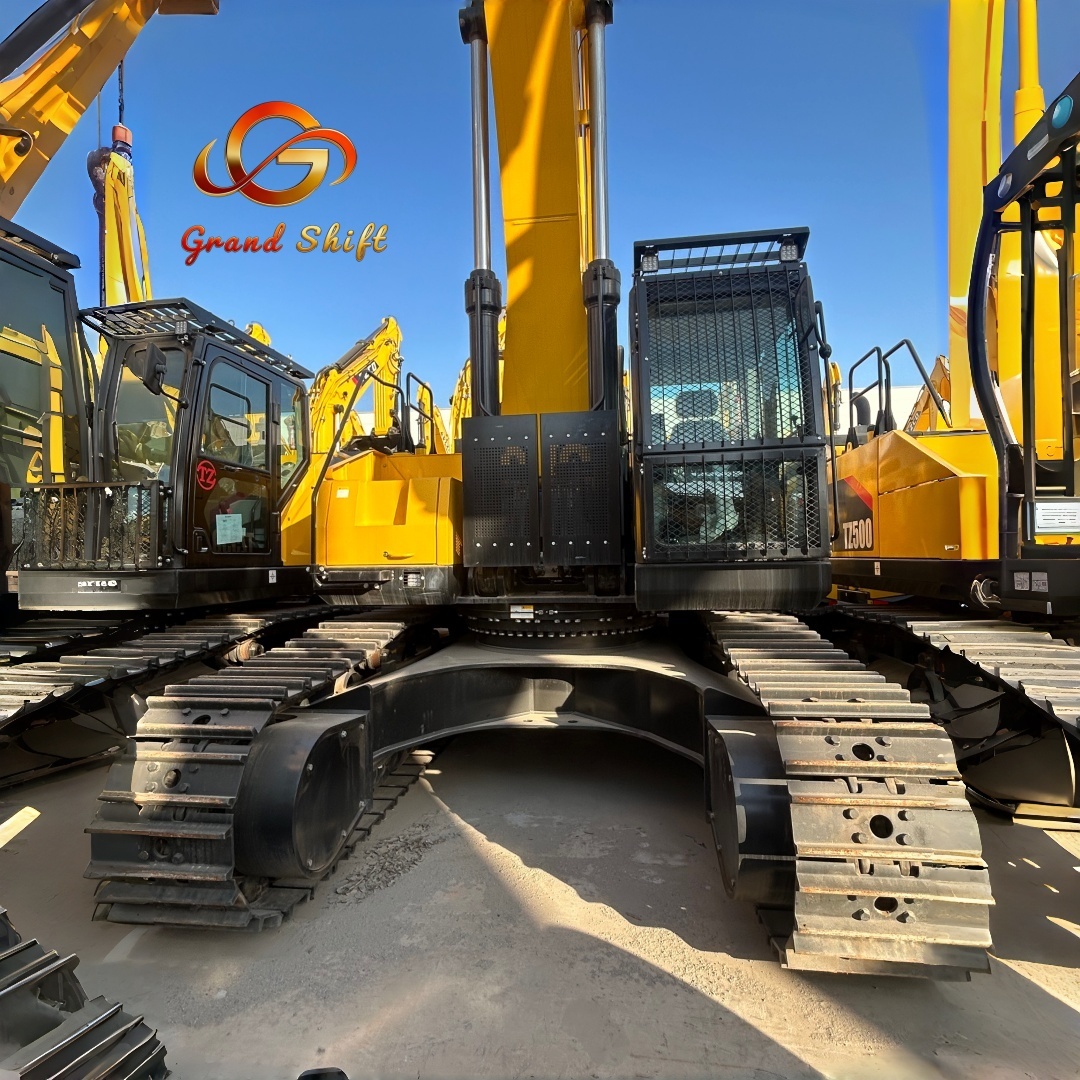

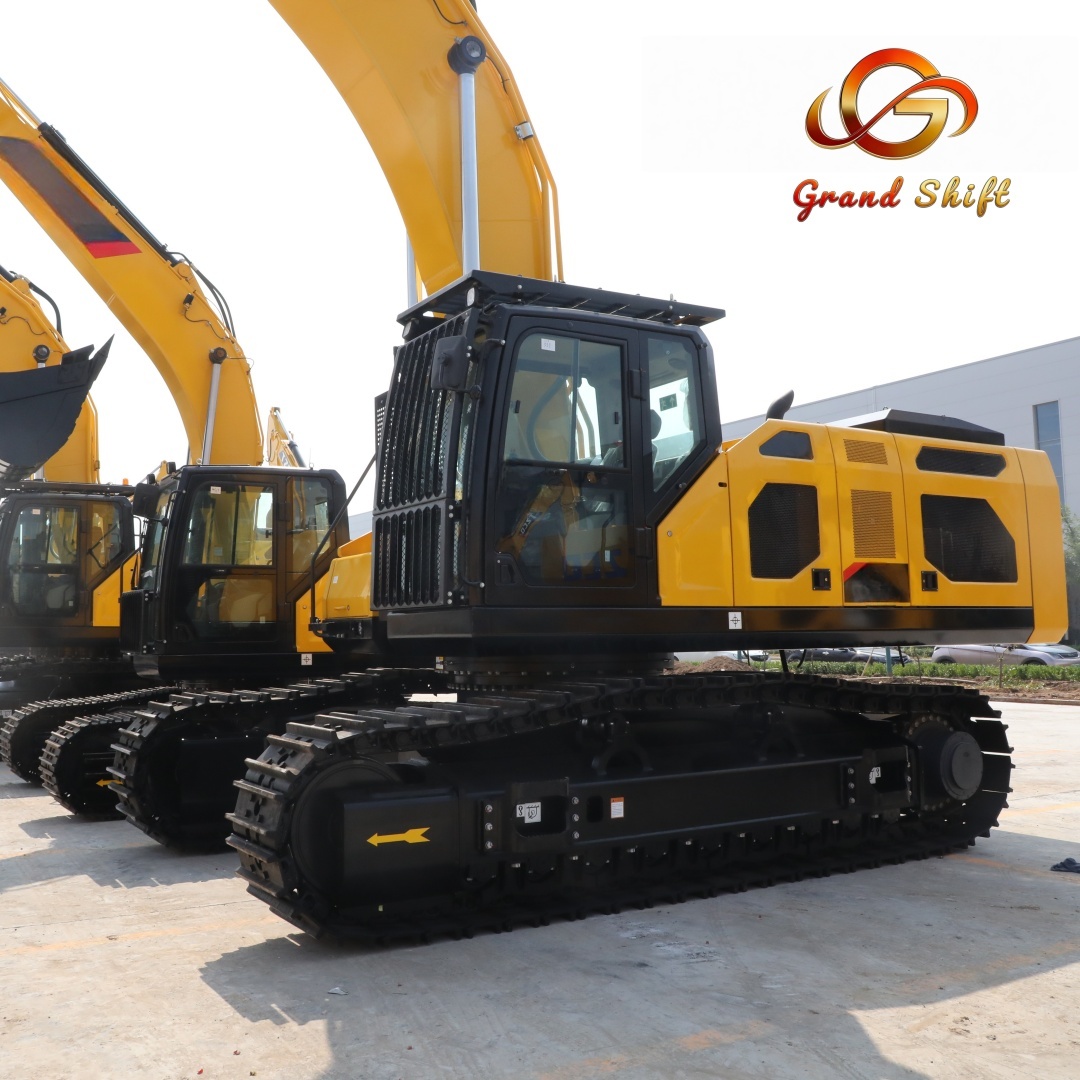

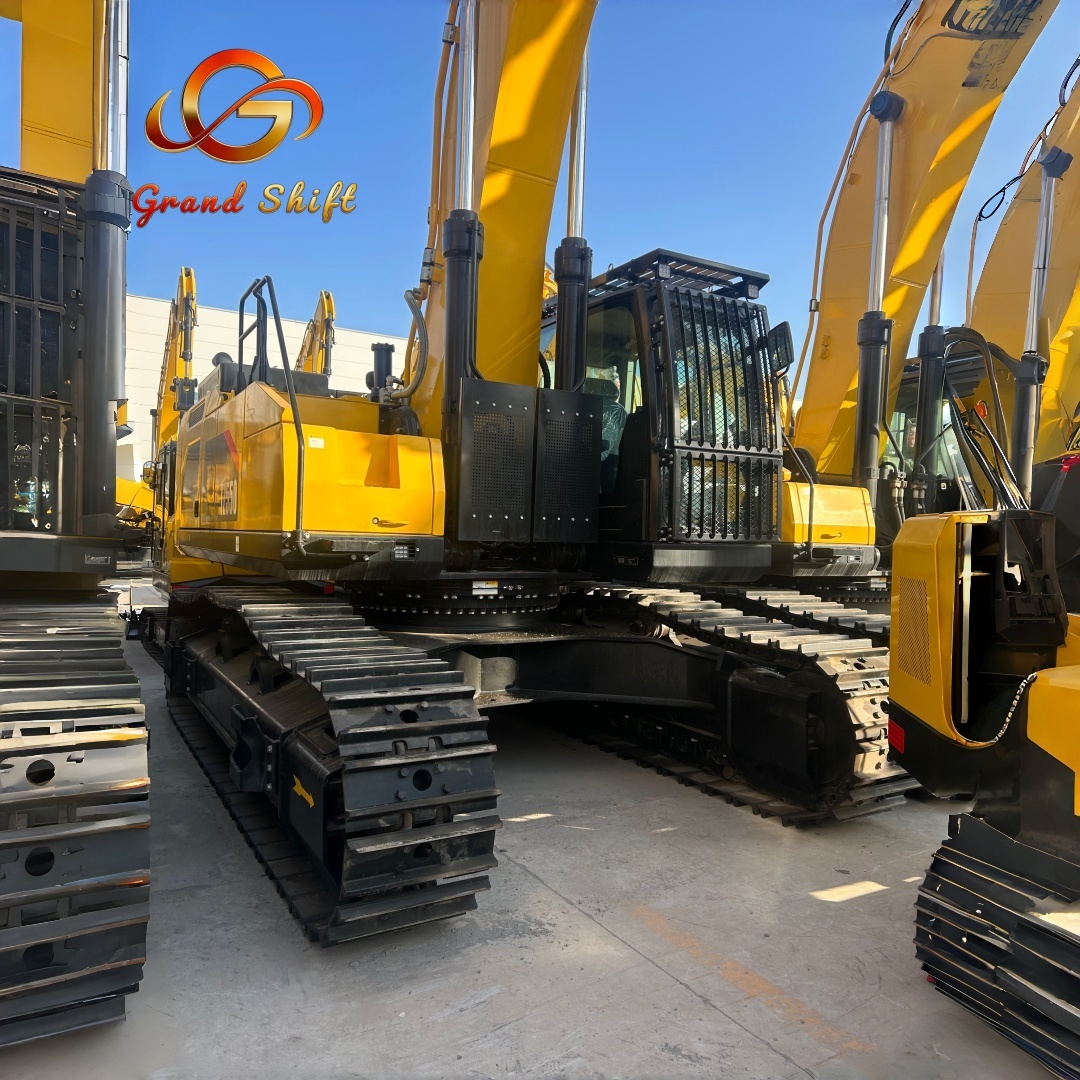

TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
Specifications
Brand Name :
TZCO
Model Number :
TZ550
Certification :
CE, ISO9001, ISO14001, Special Equipment Manufacturing License / CE、ISO9001、ISO14001
Place of Origin :
China
MOQ :
1 unit (customizable according to user needs )
Price :
185000-190000USD
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Description
TZCO TZ550 Crawler Hydraulic Excavator
1. Basic Specifications
Item Specification
Model TZ550
Type Crawler Hydraulic Excavator
Brand TZCO (Shanxi TZCO Construction Machinery)
Operating Weight 53,000 kg
Bucket Capacity 3.1 m³
Rated Power 331 kW @ 1800 rpm
Emission Standard China IV
2. Engine Performance
Item Specification
Engine Type 6‑cylinder, 4‑stroke, water‑cooled, direct injection
Engine Supply COMS / Scania optional
Rated Power 331 kW / 1800 rpm
Feature High efficiency, low fuel consumption, strong reliability
3. Working Range (mm)
Item Specification
Max. Digging Height 11,060
Max. Dumping Height 7,212
Max. Digging Depth 7,428
Max. Vertical Digging Depth 6,608
Max. Digging Reach on Ground 11,863
Min. Swing Radius 5,288
4. Overall Dimensions (mm)
Item Specification
Overall Length 12,197
Overall Width 3,574
Overall Height 3,280
Upperstructure Width 3,125
Track Length 5,480
Chassis Width 3,340
Track Shoe Width 600
Track Wheelbase 4,410
Track Gauge 2,740
Counterweight Clearance 1,320
Min. Ground Clearance 514
Min. Tail Swing Radius 3,746
Track Height 1,240
5. Hydraulic System
Item Specification
Main Relief Valve Pressure 34.3 MPa
Travel System Pressure 34.3 MPa
Swing System Pressure 26.9 MPa
Arm Length 2,500 mm
6. Key Features
  • Heavy‑duty structure for mining, quarry, and large construction projects
  • Stable hydraulic system with strong digging force and high efficiency
  • Comfortable operating environment, easy maintenance
  • Durable undercarriage for long service life
  • Compatible with various attachments: bucket, ripper, grapple, etc.

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining

    Spare Parts

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
    Packaging & Shipping

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
    Company Profile

    TZCO TZ550 53Ton Crawler Hydraulic Excavator with 3.1m³ Bucket Capacity and 331 kW Rated Power for Mining
