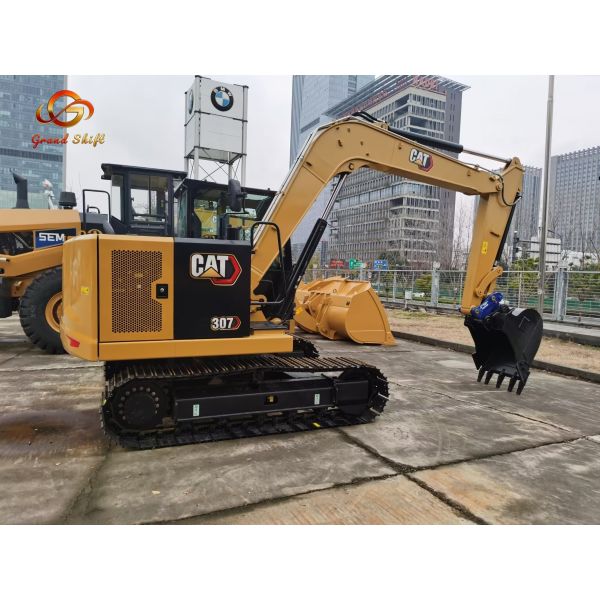

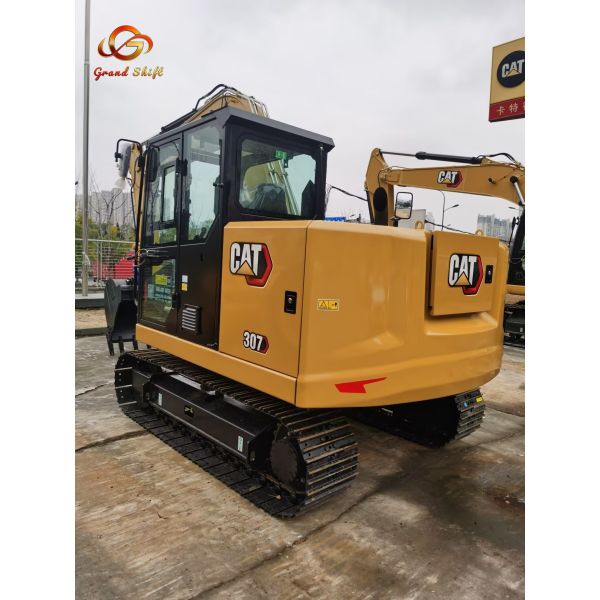

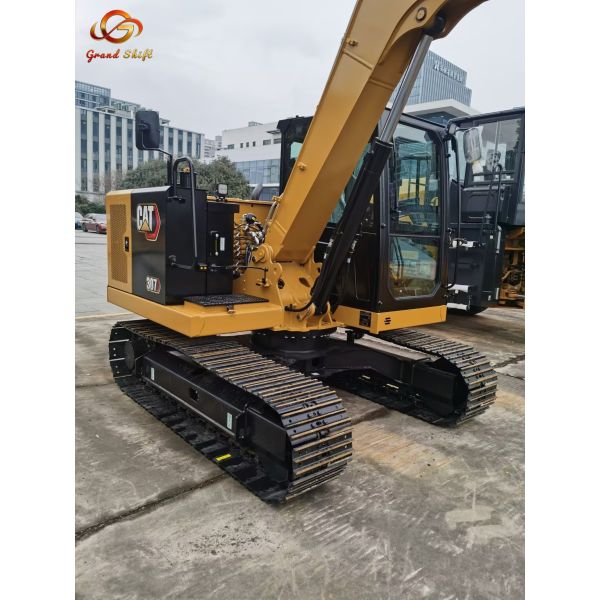

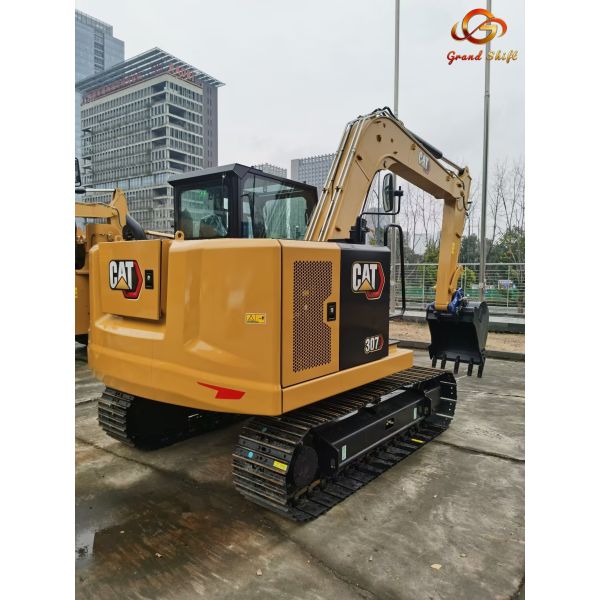

CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
Specifications
Brand Name :
CAT
Model Number :
307
Certification :
CE ISO
Place of Origin :
USA
MOQ :
1 unit (customizable according to user needs )
Price :
25,000.00 USD (Contact us for a detailed quote)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
30-50 Units 30 days
Delivery Time :
30-45 days (in stock for conventional models, customized models need to be negotiated separately
Packaging Details :
Nude packaging / Frame packaging (for sea transportation, to avoid damage during transportation
Operating weight :
7,435 kg
Bucket capacity :
0.33 m³
Machine width :
2.3 m
transport length :
6.055 m
Max. digging depth :
4,070 mm
Tail swing radius :
1,750 mm
Track shoe width :
450 mm
Description
CAT 307 7.5 tons Hydraulic Crawler Excavator
CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
Technical Specifications
Basic Parameters
Model CAT307
Operating Weight 7,435 kg
Track Shoe Width 600 mm
Bucket Capacity 0.33 m³
Maximum Digging Depth 4070 mm
Bucket Digging Force 53.2kN
Walking Speed 5/3.5 km/h
Climbing Ability 35°
Ground-Bearing Pressure 65 kPa
Power System
Engine Model Cat C2.4 DI
Rated Power 36.5 kW / 2,400 rpm
Maximum Torque 1,080 N.m / 1,500 rpm
Displacement 2.4 L
Cooling Method Water Cooling
Rotation Speed 9.5 rpm
Fluid Capacities
Fuel Tank 165 L
Hydraulic Oil Tank 51 L
Engine Oil Change Volume 10.2 L
Dimensions
Transportation Length 6055 mm
Transportation Width 2300 mm
Cabin Height 2540 mm
Vehicle Width 2300 mm
Track Ground Contact Length 2120 mm
Track Plate Width 450 mm
Track Gauge 1750 mm
Minimum Ground Clearance 550 mm
Working Range
Maximum Digging Radius 6300 mm
Maximum Digging Height 4070 mm
Maximum Unloading Height 4800 mm
Maximum Vertical Digging Depth 3,070 mm

CAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pumpCAT 307 7.5 tons New or Used Crawler Excavator with Turbocharging Engine and Variable-displacement piston pump
Key Features & Benefits
  • Powerful Performance: High-power engine with advanced hydraulic system provides excellent power and response capabilities for complex working conditions.
  • Efficient Operation: Advanced hydraulic control technology and optimized working device design deliver higher loading and excavation capabilities with improved operational efficiency.
  • Enhanced Safety: Strict structural design with multiple safety measures including anti-rollover systems and flood door lock systems for a safer working environment.
  • Operator Comfort: Ergonomic cockpit layout with user-friendly operation interface ensures convenient, comfortable, and precise control.
  • Energy Efficient: Positive flow dual proportional valve control system minimizes power loss, achieving 10% energy savings in hydraulic operations.
Manufactured to the highest standards with latest year production and comprehensive quality control, the SY-365H represents the pinnacle of hydraulic excavator technology for industrial and construction applications.
