Specifications
Supply Ability :
50 sets per month
Color :
Customized
Power Consumption :
18.5 KW
Guaranty :
1 year
Model Number :
PGD-30
MOQ :
1set
Packaging Details :
standard export wooden cases
Payment Terms :
L/C, T/T
Weight :
5800 KG
Certification :
ISO
Place of Origin :
CHINA
Delivery Time :
15-20 working days
Size :
2900x2200x12700mm
Brand Name :
PAM
Capacity :
30 Tons
Description

China Grain Dryer Supplier 120 Tons Paddy Dryer Supplier Batch Type Circulating Dryer Machine

Working Principle:

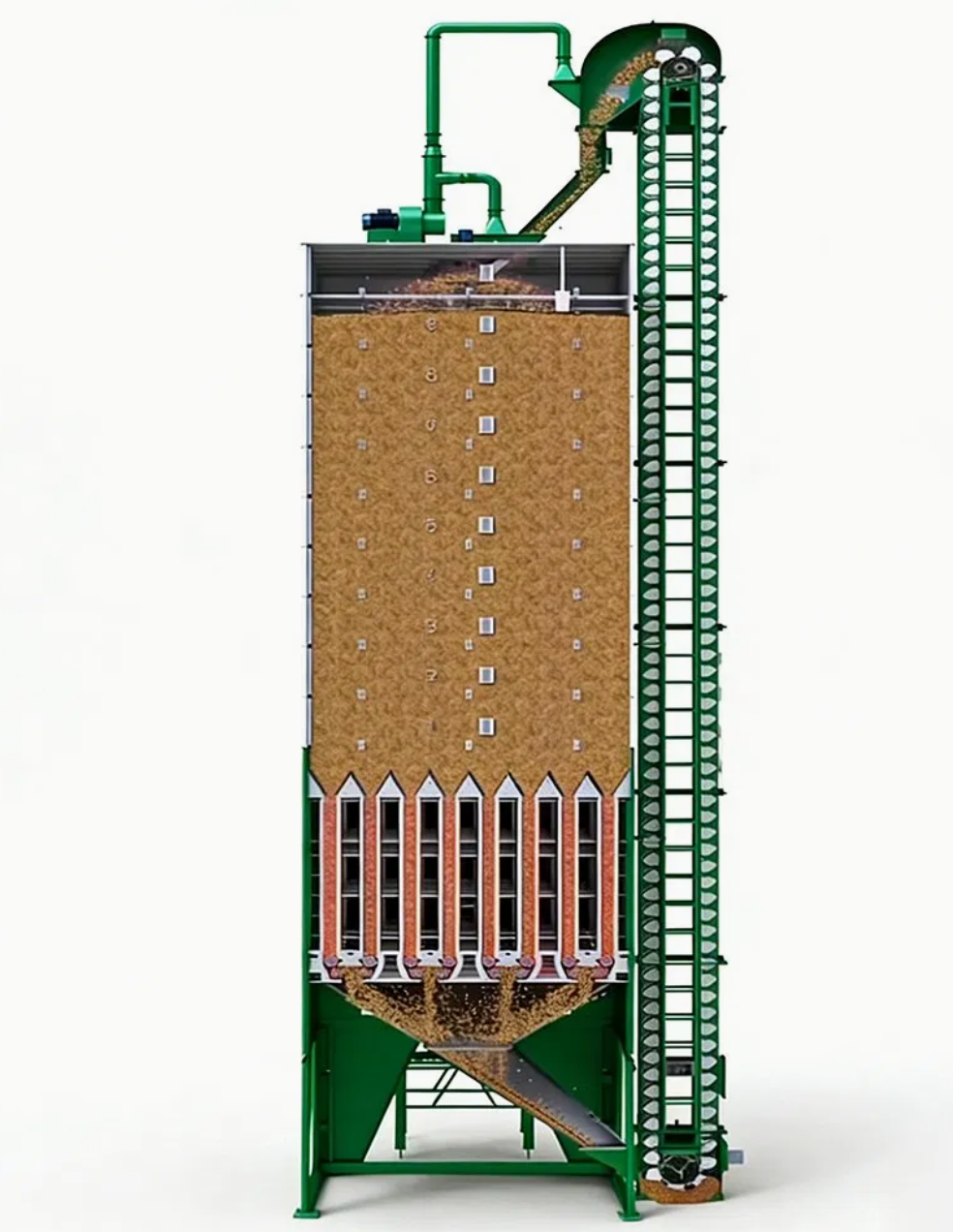

The rice dryer includes dryer machine elevator, belt conveyor, electric control cabinet, stove.
After cleaned, the grain is sent to the storage section at the top of dryer by elevator. The material level meter controls the feeding to ensure that the equipment is always in full load to improve efficiency.The grain runs in reverse direction with hot air in dryer to realize the whole process of preheating, drying, reversing, drying and cooling, and finally discharged by the belt conveyor at the discharge section.The blower sends used hot air to the collector for purification,so the hot air can be recycled to save fuel consumption.
In the drying process, the drying speed should be controlled. If dried or the cooled too fast, the rice will be easily burst.To ensure the drying quality of rice, the drying speed should not be controlled below 1.5% per hour. In addition,lower hot air temperature is necessary.If the hot air temperature is 38~40 oC, the bursting rate is less than 2%.The bursting is not only related to the hot air temperature, but also to the initial moisture content of rice.
Technical Parameter:

Model PGD-10 PGD-12 PGD-15 PGD-20 PGD-30 PGD-32 PGD-50
Capacity (Ton/Batch) 10 12 15 20 30 32 50
Overall Dimension (mm) 2880*5000*8937 2880*5000*9500 2880*5000*10157 2880x5000x13070 5060*3800*12340 5060*3800*13340 6040x3700x12500
Net Weight(Ton) 3.5 3.6 3.7 4.2 4.9 5.2 7.1
Power(kw) 8.35 8.35 15.65 18.5 20 25.5
Air Volume(m3/h) 10000-20000 Cetrigugal type & Axial Flor Type
Speed 1450r/min
Stove Type Hot Air Stove, with Auto Feeding & Ash Discharge System
Fuel Paddy Husk,Coal,Straw, Anthracite, Firewood,etc
Precipitation rate (%) 5~15
Hot air temperature (ºC) <120 With Automatic Temperature Control
The highest heating temperature of grain (ºC) <55
Heating medium Pure hot air
Dryness Rate (%) Paddy:0.6-1.2, Wheat:0.4-1.4
Breakage increment (%) <0.5
Feeding time (min) 35-40 38-42 42-46 47-52 52-60 55-60 60-65
Discharging time (min) 32-37 35-40 38-45 45-50 50-55 52-58 55-60
Safety device Full bin alarm, fault alarm, leakage protection, grain temperature detection

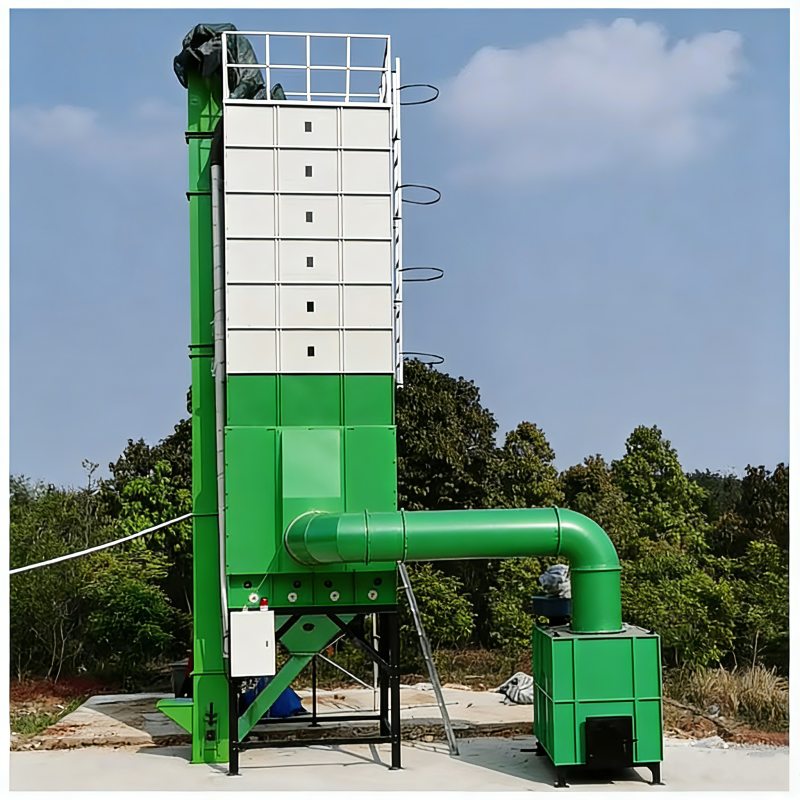

4. Photos

China Grain Dryer Supplier 120 Tons Paddy Dryer Supplier Batch Type Circulating Dryer Machine

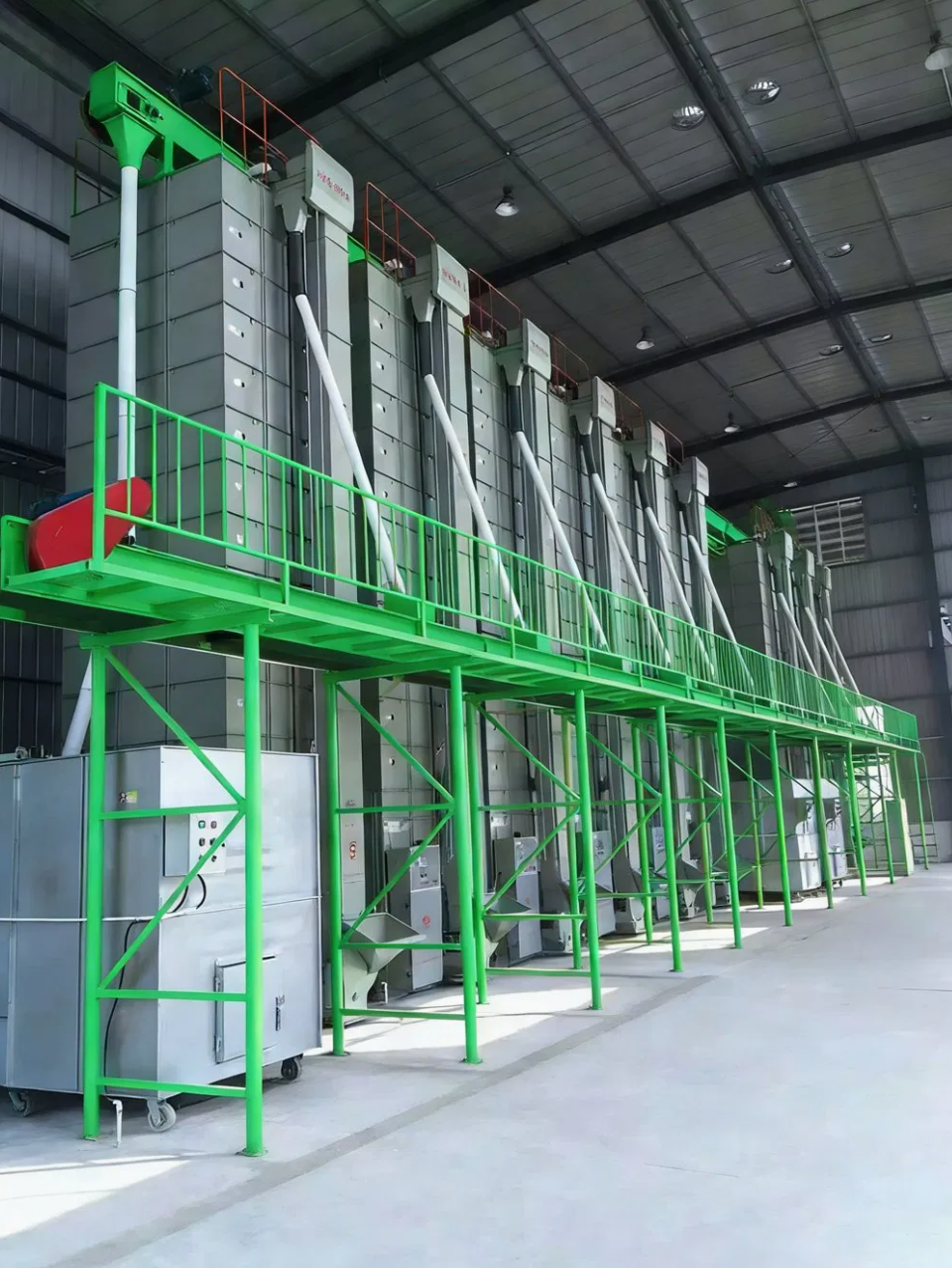

5. Showcase

China Grain Dryer Supplier 120 Tons Paddy Dryer Supplier Batch Type Circulating Dryer Machine

6. Service

China Grain Dryer Supplier 120 Tons Paddy Dryer Supplier Batch Type Circulating Dryer Machine

---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hour online service
