China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale
China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale
China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale
China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale
China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale
China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale
Specifications
Delivery Time :
15-20working days
Color :
Customized
Power Consumption :
18.5 KW
Model Number :
PGD-30
MOQ :
1 set
Capacity :
3T/H
Supply Ability :
100 SETS PER MONTH
Guaranty :
1 year
Certification :
ISO
Packaging Details :
Wooden cases
Size :
2900x2300x12700mm
Brand Name :
PAM
Weight :
5800 KG
Place of Origin :
CHINA
Description

China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale

1.Advantages
1. Fully automatic (automatic monitor over hot air, grain and moisture, automatic failure alarm); Automatic circulation, discharge and shutdown system;
2. The furnace can use coal, wood,biomass particles, crop straw, husk, petrol oil or gas, etc.
3. Lower cost. To reduce 5% moisture of 12 tons rice,it costs 11 usd if use coal as fuel, 6 usd if use husk(If your husk is free,the cost is only 2 usd ).
4. With good effect of grain.Vertical type dryer is a new design by adopting low temperature heating,which can keep original color and taste, shining surface,no sticky,low broken rate.
5.The feeding, circulation and discharge systems are combined with elevator.It has the characteristics of light weight and small area.
6. Use large spiral feeder, high strength nylon bucket, stainless steel board, wear-resisting, anti-deformation, durable and no hurt to grain.
7. With cleaning device, easy to remove grain remaining in case of mixture.
8. Easy installation, operation and maintenance


2. Features
1. Feeding and discharging grains from the top of dryer: Cancel the top auger, grain will directly flow to the drying part, avoid mechanical failure, lower power consumption and reduce the paddy broken rate;
2. The drying layer is combined by variable cross-section type angular boxes, mixed flow drying, high efficiency and uniform drying; Especially suitable for corn, parboiled rice and rapeseeds drying;
3. Resistance-type online moisture meter: Error rate is ±0.5 only (Deviation for raw paddy moisture is within 3% only), very accurate and reliable moisture meter;
4. The dryer comes with fully automatic computer controlling system, easy on operation, high automation;
5. The drying-layers adopt assembling mode, its strength is higher than the welding drying-layers, more convenient for maintenance and installation;
6. All the contact surfaces with grains in the drying-layers are designed with inclination, which can effectively offset the transverse force of grains, help to prolong the service life of the drying-layers;
7. The drying-layers has larger ventilation area, the drying is more uniform, and the utilization rate of hot air is significantly improved;
8. Twice dust removal function during drying process, the grains after drying are cleaner;
9. Multiple safety device, low failure rate, convenient on cleaning and long service time.
3. Technique Parameter
Model PGD-30
Type Batch type, Circulation, Low temperature, Mix-flow
Volume(t) 30.0(Based on paddy 560kg/m3)
31.5(Based on maize 690kg/m3)
31.5(Based on rapeseeds 690kg/m3)
Overall dimension(mm)(L×W×H) 6350×4521×12700
Structure weight(kg) 5800
Hot air source Burner (diesel or natural gas);
Hot air furnace (coal, husk, straw, biomass, etc.);
Boiler (steam or thermal oil).
Blower motor(kw) 5.5*2
Total power of motors(kw)/ Voltage(v) 18.5/380
Time of feeding(min) Paddy 54~64
Maize 55~65
Rapeseeds 60~70
Time of discharging(min) Paddy 50~60
Maize 51~61
Rapeseeds 57~67
Moisture reduction rate Paddy 0.4~1.0% per hour
Maize 1.0~2.0% per hour
Rapeseeds 0.4~1.2% per hour
Automatic control and safety device Automatic moisture meter, automatic ignition, automatic stop, temperature control device, fault alarm device, full grain alarm device, electrical overload protection device, leakage protection device

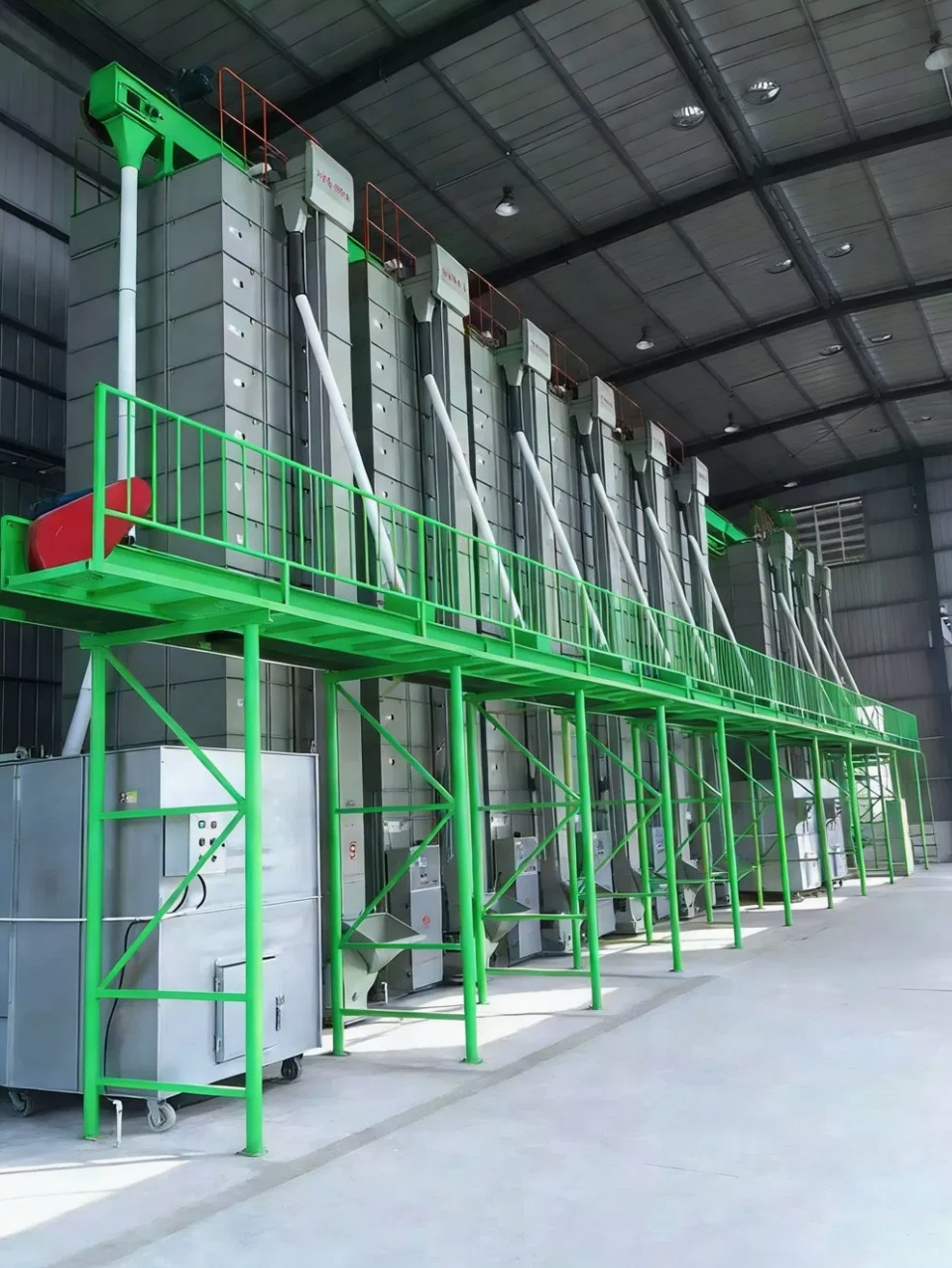

4. Photos

China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale

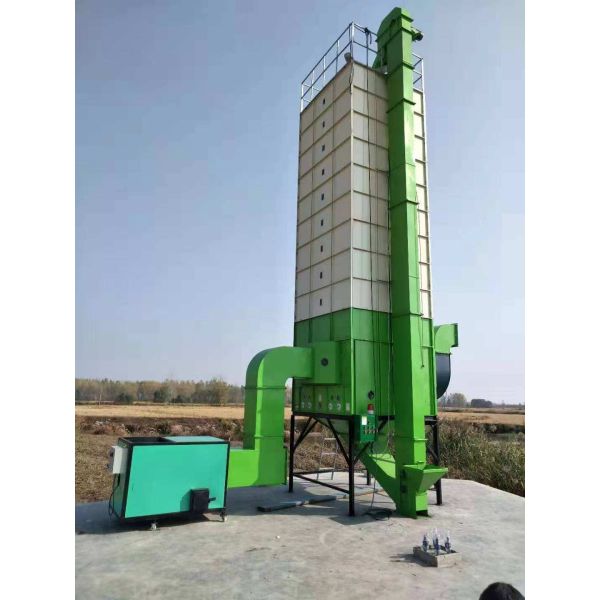

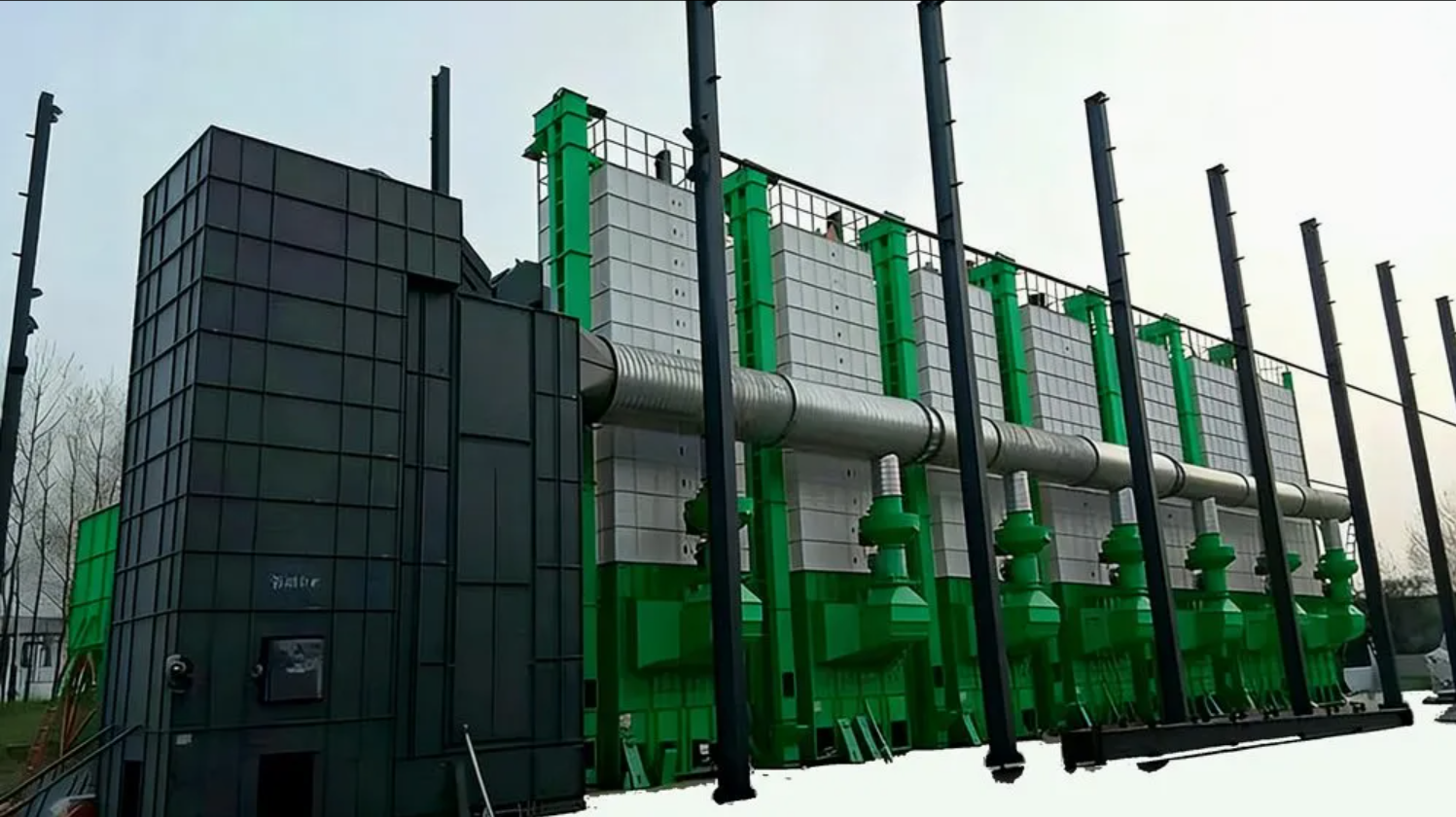

5. Showcase

China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale

6. Service

China Grain Dryer Factory Direct Sale 30-300 Tons Paddy Dryer Plant Factory Sale

---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hour online service
