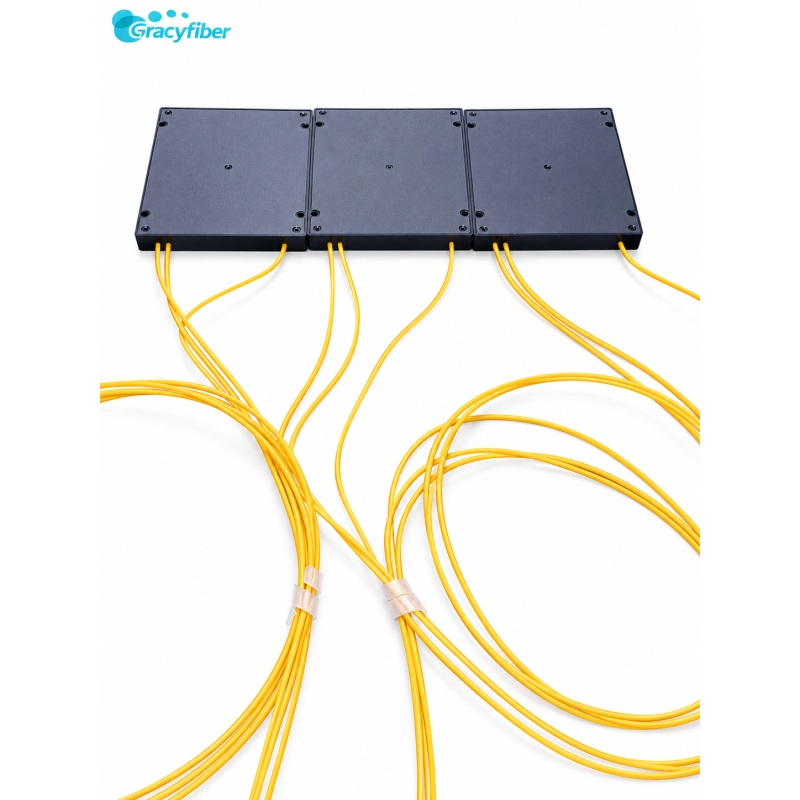

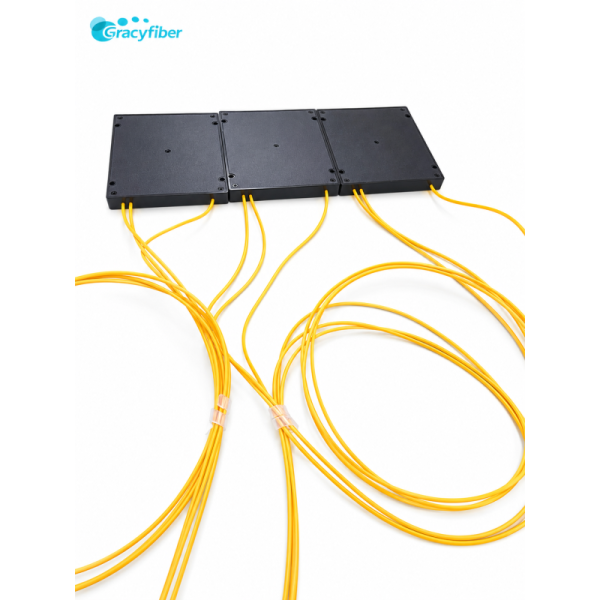

PM Fiber Optic Circulator 3 Port 1064nm 1310nm 1480nm 1550nm 1650nm For EDFA Fiber Laser Fiber Sensor
PM Fiber Optic Circulator 3 Port 1064nm 1310nm 1480nm 1550nm 1650nm For EDFA Fiber Laser Fiber Sensor
PM Fiber Optic Circulator 3 Port 1064nm 1310nm 1480nm 1550nm 1650nm For EDFA Fiber Laser Fiber Sensor
PM Fiber Optic Circulator 3 Port 1064nm 1310nm 1480nm 1550nm 1650nm For EDFA Fiber Laser Fiber Sensor
PM Fiber Optic Circulator 3 Port 1064nm 1310nm 1480nm 1550nm 1650nm For EDFA Fiber Laser Fiber Sensor
PM Fiber Optic Circulator 3 Port 1064nm 1310nm 1480nm 1550nm 1650nm For EDFA Fiber Laser Fiber Sensor
Specifications
Model Number :
PMCIR-03155PSAST10910-22
Packaging Details :
φ5.5 × L50(P1) (only for bare fiber or 900um loose tube) L90*W20*H10（ABS）(P2) (only for 3mm or 2mm cable)
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C, T/T
Fiber Type :
PM 1310, PM1550, PM980
Cladding Diameter :
125 µm
Core Diameter :
3.0 µm
Operating Wavelength :
1064 nm, 1310 nm, 1550 nm, 1650 nm, 1480 nm
Insertion Loss :
0.6 - 0.7 dB
Isolation :
30-46 dB
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Description

Polarization Maintaining Optical Circulator 3 Port PM Fiber Optic Circulator 1064 1310 1480 1550 1650nm For EDFA Fiber Laser Fiber Sensor And Optical Instrument

1. Product Overview

This product is a Polarization Maintaining Optical Circulator, with a standard 3-port structure (Port1→Port2, Port2→Port3 unidirectional transmission), used to isolate reflected light and achieve directional optical transmission.

2. Product Advantages
  • Low Insertion Loss, Low System Power Loss

  • High Isolation and Low Crosstalk, Protecting Front-End Devices


  • High Extinction Ratio and Excellent Polarization Characteristics


  • High Return Loss and High Stability


  • Flexible Selection, Covering Multiple Wavelengths and Structural Requirements

3. Product Features (Key Features)
Parameters Unit Type A Type B
Operating wavelength nm 1310 or 1550 1064
Bandwidth nm ±30 ±20 ±5
Typ. Isolation dB 46 30 30
Isolation dB ≥40 ≥20 ≥25
Typ. Insertion Loss dB 0.7 0.6 1.8
Insertion Loss @,-5 to +70(1310/1550nm),,-5 to +50(1064nm) dB ≤0.9 ≤0.8 ≤2.1
Extinction Ratio dB ≥22 ≥20 ≥20
Cross Talk dB ≥50
Return loss dB ≥50
Power handling mW ≤300 ≤300


4. Applications
  • EDFA Amplifier Systems
  • Fiber Optic Instruments
  • Fiber Laser Systems
  • Fiber Sensor Systems
