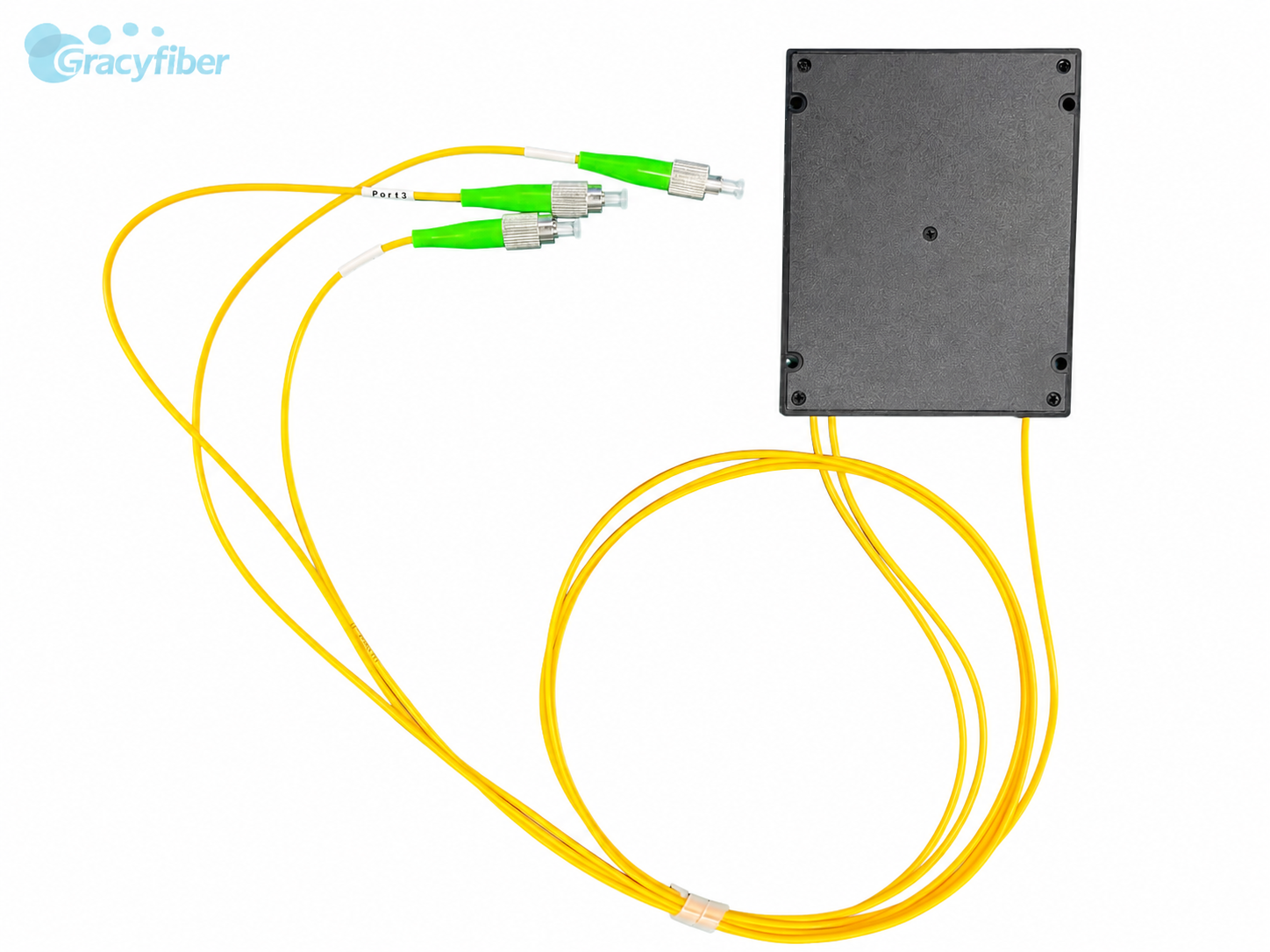

Low Insertion Loss High Isolation Fiber Optic Circulator 1550nm 3 Port For EDFA Fiber Laser
Low Insertion Loss High Isolation Fiber Optic Circulator 1550nm 3 Port For EDFA Fiber Laser
Low Insertion Loss High Isolation Fiber Optic Circulator 1550nm 3 Port For EDFA Fiber Laser
Low Insertion Loss High Isolation Fiber Optic Circulator 1550nm 3 Port For EDFA Fiber Laser
Specifications
Model Number :
PMCIR-03155PSAST10910-22
Packaging Details :
φ5.5 × L50mm
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C, T/T
Operating wavelength :
1550 nm
Bandwidth :
±30 nm
Insertion Loss :
≤0.7 dB
Isolation :
≥40 dB
Extinction Ratio :
≥22 dB
Return loss :
≥50 dB
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Description

1550nm Polarization Maintaining Optical Circulator 3 Port PM Fiber Optic Circulator Low Insertion Loss High Isolation For EDFA Fiber Laser And Sensor

1. Product Overview

This product is a 1550nm Polarization Maintaining Optical Circulator, employing a 3-port structure to achieve one-way transmission from Port1 to Port2 and from Port2 to Port3, effectively blocking back-reflected light, protecting upstream components, and optimizing system optical path design.

2. Product Advantages

  • Low Insertion Loss, Link Budget Friendly

  • High Isolation & Low Crosstalk, Protecting Pre-amplifier Devices

  • High Extinction Ratio, Excellent Polarization Performance

  • High Return Loss, Reducing Reflection Impact

  • Excellent Power and Environmental Adaptability

  • Selectable Single/Dual Stage, Adaptable to Multiple Scenarios Provides two structures: Single Stage (S) and Dual Stage (P)

3. Product Features (Key Features)
Parameters Unit Value
Operating wavelength nm 1550
Bandwidth nm ±30
Typ. Isolation dB 46
Isolation dB ≥40
Typ. Insertion Loss dB ≤0.7
Insertion Loss@-5 to +70 dB ≤0.9
Extinction Ratio dB ≥22
Cross Talk dB ≥50
Return loss dB ≥50


4. Applications
  • EDFA amplifier system
  • Fiber Optic Instrument
  • Fiber Laser
  • Fiber Sensor
