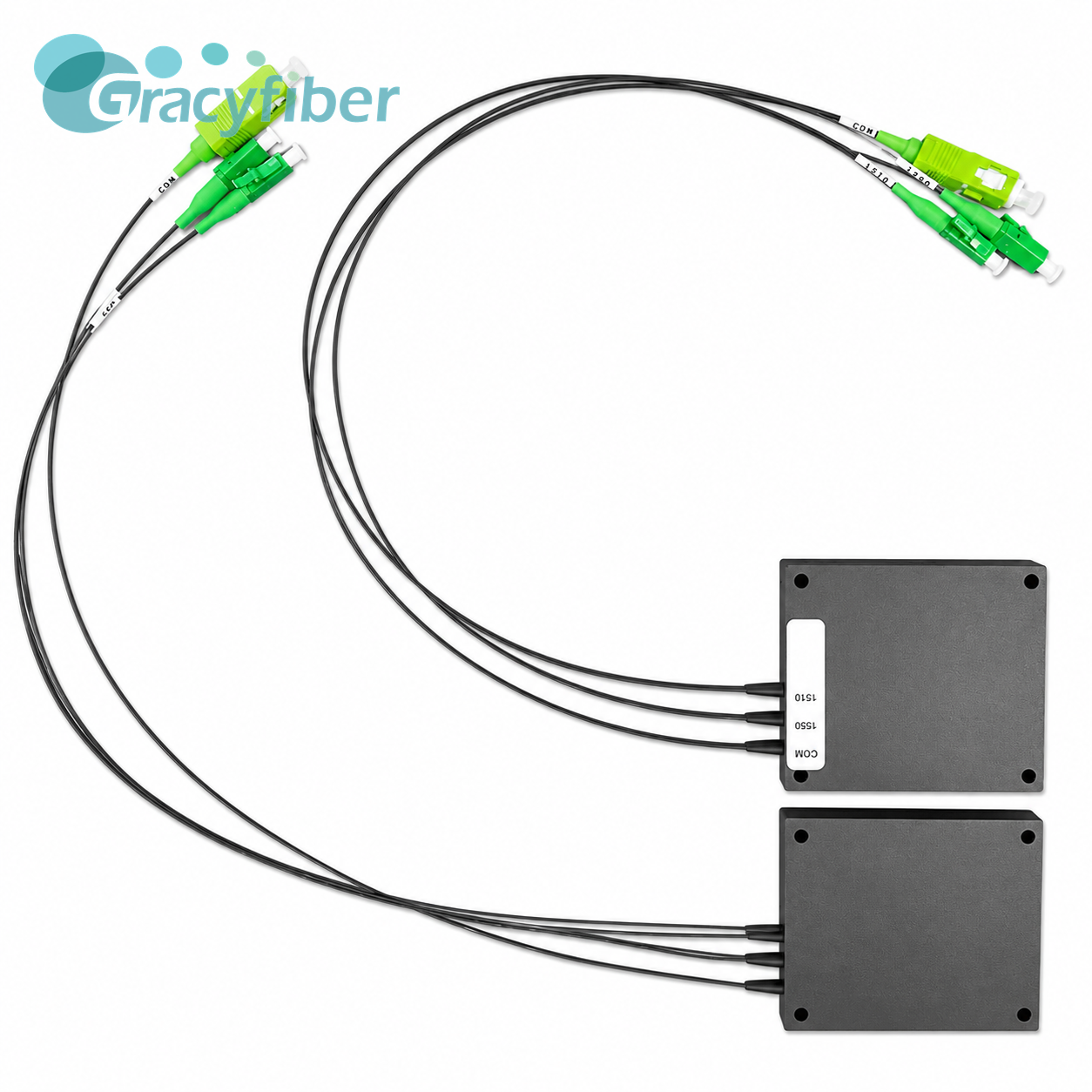

4CH 200G O Band PM DWDM Module Polarization Maintaining DWDM Mux Demux 1260nm 1380nm
4CH 200G O Band PM DWDM Module Polarization Maintaining DWDM Mux Demux 1260nm 1380nm
4CH 200G O Band PM DWDM Module Polarization Maintaining DWDM Mux Demux 1260nm 1380nm
4CH 200G O Band PM DWDM Module Polarization Maintaining DWDM Mux Demux 1260nm 1380nm
Specifications
Model Number :
PMDWDM-04MO306PS-22(S)
Packaging Details :
100*80*10mm
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C,T/T
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Name :
DWDM Module
Operating Wavelength :
1260~1380 nm
Channel Spacing :
200G (1.6 nm)
Insertion Loss :
<1.8 dB
Extinction Ratio :
>18 dB
Adjacent Isolation :
>28 dB
Module Dimensions :
100 * 80 * 10 mm
Description

1. Product Overview

This product is a 4CH 200G O-band PM DWDM Module, designed for dense wavelength division multiplexing/demultiplexing of 4 wavelength channels within the 1260–1380 nm O-band.

2. Product Advantages

Low Insertion Loss, Sufficient System Margin


High Extinction Ratio, Excellent Polarization Performance


High Isolation, Extremely Low Crosstalk


Mature Structure, High Reliability


Easy to Deploy, Strong Compatibility


3. Product Features (Key Features)

Parameters 4CH Mux
Operating Wavelength (nm) 1260~1380
Channel spacing 200G(Oband)
Wavelength (nm)

1306.85 (1306.65~1307.05)

1309.14 (1308.94~1309.34)

1311.43(1311.23~1311.63)

1312.58 (1312.38~1312.78)
Pass band (nm) λC±0.2
Ripple (dB) ＜0.5
Insertion Loss (dB) < 1.8
Extinction Ratio (dB) > 18
Isolation (dB) Adjacent > 28
Non-adjacent > 40


4. Applications

  • Broadband access and aggregation networks (O-band)
  • PON / Access network O-band multiplexing systems
  • CATV / Video service O-band transmission
  • O-band DWDM test platforms and scientific research systems

4CH 200G O Band PM DWDM Module Polarization Maintaining DWDM Mux Demux 1260nm 1380nm


FAQ


1: What are the standard package, pigtail, and connector configurations?

A: The standard module size is approximately 100 × 80 × 10 mm. Some ABS box models may have a height of up to 18 mm; please refer to the final specifications. The standard pigtail length is 1.0 ± 0.1 m, with a 0.9 mm blue sheath; the input is a COM common port, and the outputs are 4 DWDM channel ports. The standard connector is FC/APC.


2: Can I purchase samples for testing first? How are the lead time and discounts for bulk orders confirmed?

A: Sample testing is possible. The MOQ for this product is 1 piece, suitable for engineers to perform link verification, polarization axis confirmation, and equipment compatibility testing. The page shows a monthly supply capacity of 100,000 pieces; lead time and discounts for bulk orders will be assessed based on wavelength configuration, connectors, package, testing requirements, and purchase quantity. Tiered pricing and partial deliveries are supported.
