Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C,T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Channel Count :
48CH
Insertion Loss :
Low
Channel Isolation :
High
Channel Uniformity :
Good
Compliance Standards :
Telcordia, RoHS
Band Type :
C-Band
Description

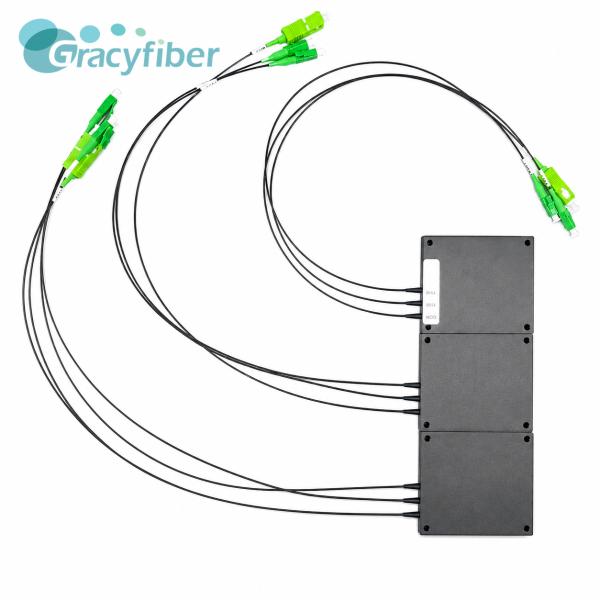

Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module

1 Specifications

Parameters

Unit

Value

Operating Wavelength

nm

1525~1565

Pass Band Type

/

Flat-top

Channel Port Number

/

48

Center Wavelength

/

ITU Grid(C15 ~C62) or Customized

Channel Space

nm

0.8

Center Wavelength Accuracy

nm

+/-0.08

Pass band @1dB

nm

≥0.38

Pass band @3dB

nm

≥0.58

Port Insertion Loss

dB

≤5.8

Isolation

Adjacent

dB

≥23

Non-adjacent

dB

≥29

Uniformity

dB

≤1.5

Ripple

dB

≤0.5

ER

dB

≥16

RL

dB

≥45

Directivity

dB

≥50

Power

mw

≤300

Fiber Type

/

PM 1550nm with 0.9mm loose tube

Fiber Length(m)

(Ribbon Fiber+Fan-out Fiber)

m

0.5+/-0.1 or Customized

Operating Temperature

℃

-5~65

Storage Temperature

℃

-40~85

Housing

mm

120*70*11

*Above specifications are for devices without connector.

*For devices with connectors,lL+0.3dB.RL-5dB.ER-2dB

*The default connector key is aligned to slow axis.


2 Structure Diagram

Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module

3 Mechanical Dimensions

Broadband ROADM DWDM System 48CH PM AAWG Polarization Maintaining Athermal AWG Multiplexer Flat-top C-Band CATV Optical Module


Applications

ROADM Optical Network Systems

C-Band DWDM Transmission Systems

Broadband Optical Communication Networks

CATV Optical Transmission Systems

High-Capacity Wavelength Division Multiplexing Links

Polarization-Maintaining Optical Communication Systems

Multi-Channel Optical Module Integration

Optical Network Equipment and Subsystem Integration


FAQ

1: How are product warranties and after-sales support handled?

A: This product is ISO9001 and RoHS certified and complies with Telcordia and RoHS standards. Gracyfiber is an engineering-driven passive optical component manufacturer with an integrated manufacturing facility of over 2,000㎡, specializing in PM components, WDM solutions, optical design, precision alignment, and large-scale packaging. If the product experiences non-human-caused quality issues within the warranty period, we can provide parameter retesting, technical analysis, repair, or replacement support; the specific warranty period and RMA terms are subject to the formal quotation or purchase contract.
