Fiber Array (FA) — 1-Channel To 128-Channel Configurations For PLC, AWG, Silicon Photonics, And Optical Modules

Product Description

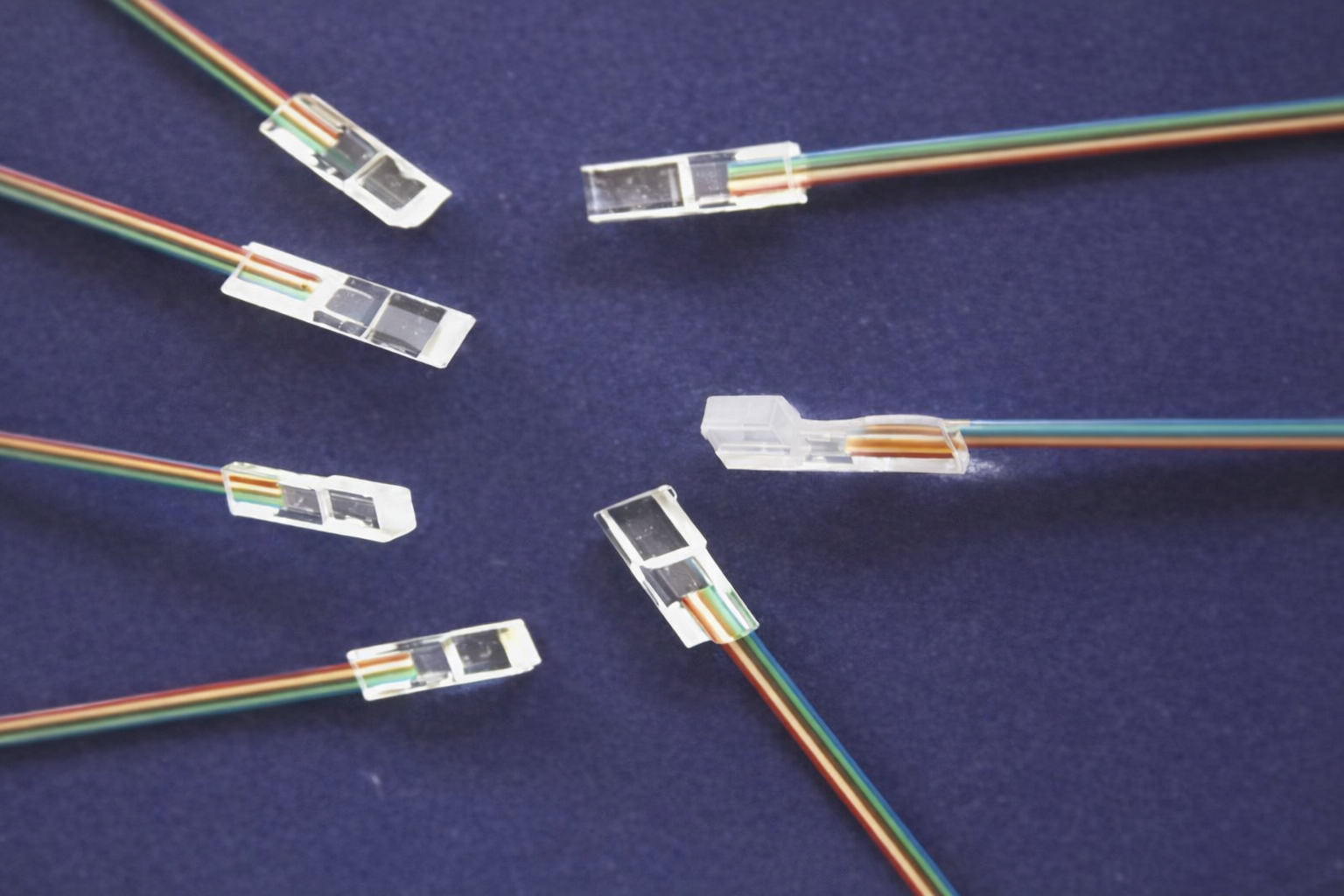

The product is compatible with a diverse array of fiber types—including OM1, OM2, OM3, OM4, OM5, as well as G657A1, G657A2, and G657B3—and also supports custom fiber specifications. The pigtail structure offers selectable options including 250μm or 900μm loose-tube cabling, or ribbon fiber; the standard length is 100±10cm. Connector options include FC, LC, SC, E2000, MT, MPO, MMC, and other types. Thanks to high-precision array alignment, flexible material and structural choices, and excellent processing consistency, this Fiber Array (FA) is ideally suited for mass production and integration into OEM optical communication projects.

Key Features
Parameter Unit 1 2 4 8 12 16 24 32 48 64 96 128
Wavelength nm 460,630,780,850,980,1060,1310,1550,1650,1950
Materials - Pyrex, Tempax, Quartz, Silicon
Lid Option Lid / Lidless
CorePitch - - 250 127/250 127/250 127/250 127 127 127 127 127 127 127
Core Pitch Tolerance μm +/-0.3 +/-0.5 +/-0.7 +/-1.0
Polish Angle Degree 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°)
Angle Type - A Type or V Type
Insertion Loss dB ≤0.5(Typical 0.3)
Return Loss dB UPC≥45, APC≥55
FA Dimension W mm 2.5 2.5 2.5 2.5 3.5 3.5 5.7 5.7 9 10 15 19.2
H mm 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
L mm 10 10 10 10 10 12 12 12 12 12 15 18
- - Standard or Customized
Fiber Type - OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized
Fiber Coating um 250 µm / 900 µm loose tube / ribbon (optional)
Fiber Type Length cm 100+/-10 or customized
Connector - .FC/LC/SC/E2000/MT/MPO/MMC
Operation Temperature °C -5~65
Storage Temperature °C -40~85
  • Supports various array channel configurations ranging from 1CH to 128CH
  • Compatible with multiple operating wavelength bands from 460nm to 1950nm
  • Selectable substrate materials: Pyrex, Tempax, Quartz, or Silicon
  • Supports core pitches of 127μm, 250μm, and 127/250μm
  • Insertion Loss (IL) ≤ 0.5dB (typical value: 0.3dB)
  • Return Loss (RL): UPC ≥ 45dB, APC ≥ 55dB
  • Supports Lid / Lidless and A-Type / V-Type structural designs
  • Supports customization of various polishing angles and connector types

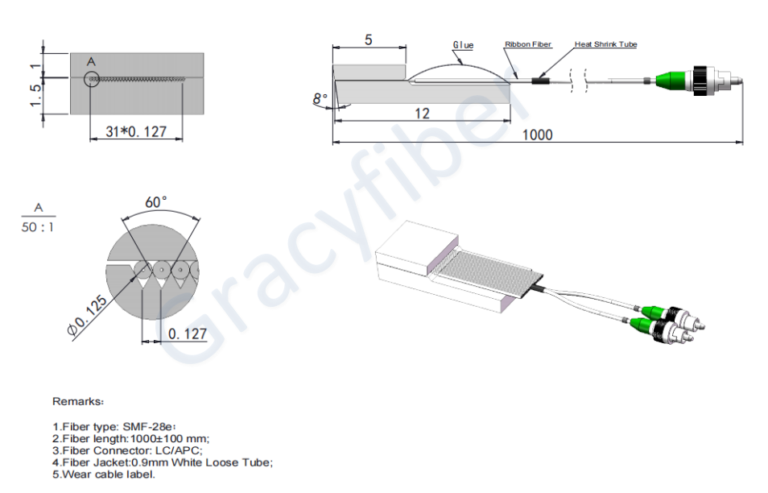

FA Fiber Array 1 Channel To 128 Channel Configurations For PLC / AWG / Silicon Photonics
Applications
  • PLC Optical Splitters
  • AWG Wavelength Division Devices
  • Silicon Photonics Chip Coupling
  • Optical Module Packaging
  • MEMS Optical Devices
  • Fiber Array Interconnects
  • Optical Testing Platforms
  • OEM Optical Communication Components
