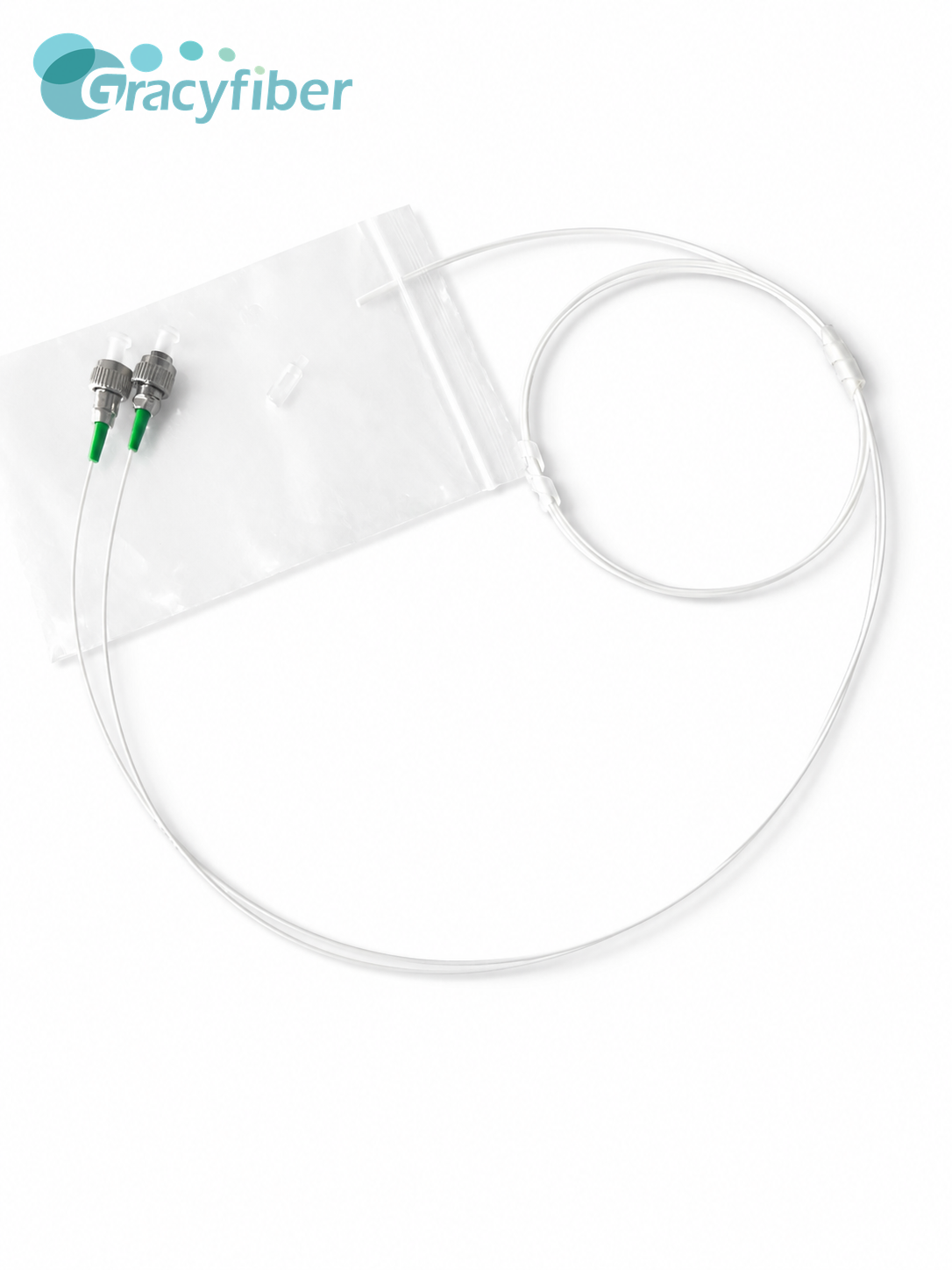

2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL
2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL
2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL
2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL
Specifications
Model Number :
910001702-29
Channel Spacing :
250μm
Polishing Angle :
0°
Insertion Loss :
≤0.3dB
Fiber Type :
Nufern UHNA7+G657A2
Description
2CH SMFA Fiber Array,2CH Single Mode Fiber Array,2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL <0.3dB | Optical Transceiver FA
1. Product Overview

This high-precision 2-channel single-mode fiber array (2CH SMFA) is designed for integration with silicon photonic coupling and optical waveguide devices.

2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL <0.3dB | Optical Transceiver FA

2. Product Features
  • Ultra-Low Insertion Loss
  • Advanced Mode Field Conversion
  • High Precision Channel Spacing
  • Highly Stable Quartz Packaging
  • High-Quality Termination Connections



NO. Parameters Unit Spec. Value
1 Channel / 2 OK
2 Material / Quartz Glass OK
3 Channel Spacing μm 250 OK
4 Polishing Angle Degree A0° OK
5 Package(L)X(W)X(H) mm 10*2.5*2.5 OK
6 Insertion Loss dB ≤0.3 0.15
　
　
　
7 Fiber Type / Nufern UHNA7+G657A2 OK
8 Length m 1±0.1 OK
9 Connector / FC/APC OK
10 Operating Temperature (℃) 0～65 OK
11 Storage Temperature (℃) -40～85 OK

3. Applications
  • Silicon Photonics Chip Coupling
  • PLC Device Integration
  • High-Speed ​​Optical Transceiver Packaging
  • Optical Fiber Sensing & Test Systems
