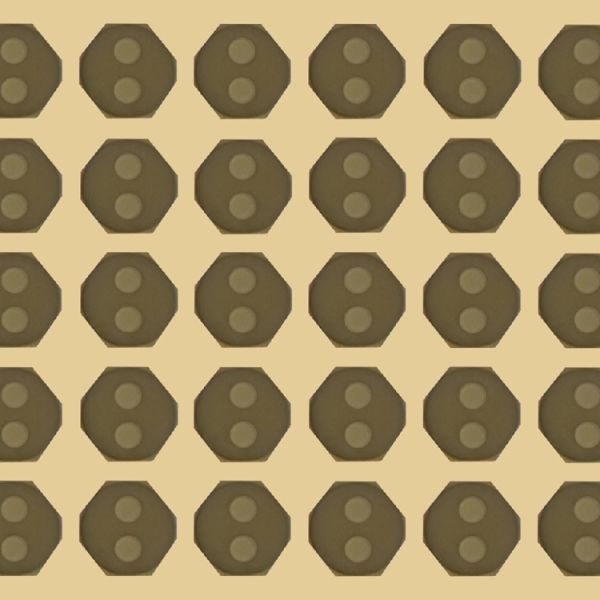

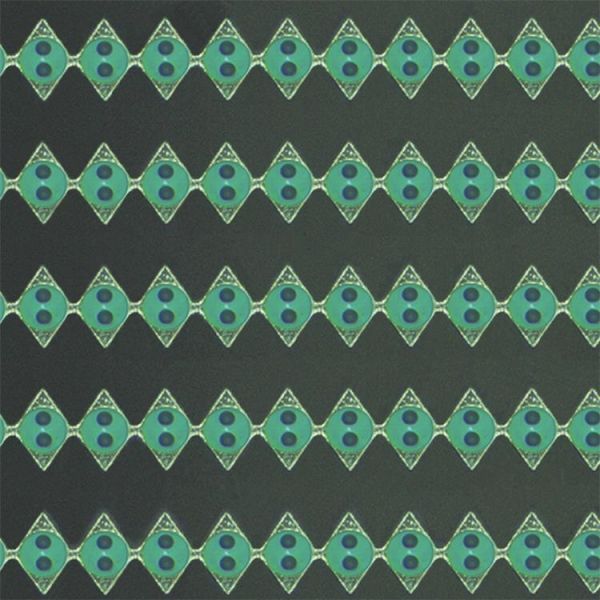

2D FA Fiber Array 16 Channel To 1024 Channel Two Dimensional Optical Fiber Array For Optical Interconnects
2D FA Fiber Array 16 Channel To 1024 Channel Two Dimensional Optical Fiber Array For Optical Interconnects
Specifications
Name :
Optical Fiber Array
Wavelength range :
1260–1650 nm
Core pitch :
127 μm
Core tolerance :
±1 μm
Insertion loss :
≤0.8 dB (typical 0.5 dB)
Return loss :
UPC ≥40 dB, APC ≥50 dB
Operation temperature :
-5~65 °C
Place of Origin :
China
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
MOQ :
100pcs
Payment Terms :
T/T
Description

2D FA (Two-Dimensional Fiber Array) — 16-Channel To 1024-Channel Configurations For Optical Interconnects, Silicon Photonics, And High-Density Optical Packaging

Product Description

This 2D FA is a two-dimensional fiber array assembly designed for high-density optical interconnects and advanced photonic packaging applications. It supports various high-channel configurations—including 16, 32, 64, 128, 256, 512, and 1024 channels—and operates within the 1260–1650 nm wavelength range. Constructed using glass or ceramic materials, the product features a 2D matrix array structure with a core pitch of 127 μm. The core pitch tolerance is strictly controlled to within ±1 μm, making it ideally suited for applications demanding high array precision, channel uniformity, and high-density spatial arrangement. The device exhibits an insertion loss of ≤0.8 dB (with a typical value of 0.5 dB) and a return loss of ≥40 dB for UPC and ≥50 dB for APC, thereby enhancing system coupling efficiency and transmission stability.

Key Features
Parameter Unit 16 32 64 128 256 512 1024
Wavelength nm 1260–1650
Materials - Glass / Ceramic
Geometry 2D Matrix
CorePitch - 127um
Core Pitch Tolerance μm ±1
Insertion Loss dB ≤0.8 (typical 0.5)
Return Loss dB UPC ≥40, APC ≥50
Fiber Type - OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized
Fiber Coating um 250 µm / 350 µm
Fiber Type Length cm 100+/-10 or customized
Connector - FC/LC/SC/E2000/MT/MPO/MMC
Operation Temperature °C -5~65
Storage Temperature °C -40~85
  • Supports high-density 2D array configurations ranging from 16 to 1024 channels
  • Compatible with the 1260–1650 nm operating wavelength range
  • Utilizes glass or ceramic materials
  • Features a 2D matrix array structure with a 127 μm core pitch
  • Core pitch tolerance of ±1 μm
  • Insertion loss ≤0.8 dB (typical value: 0.5 dB)
  • Return loss: UPC ≥40 dB, APC ≥50 dB
  • Supports customization of various fiber types, pigtail structures, and connectors
Applications
  • High-density optical interconnects
  • Silicon photonics chip packaging
  • 2D fiber array coupling
  • High-channel-count optical modules
  • Board-level optical communication systems
  • Optical testing platforms
  • OEM optical communication components
