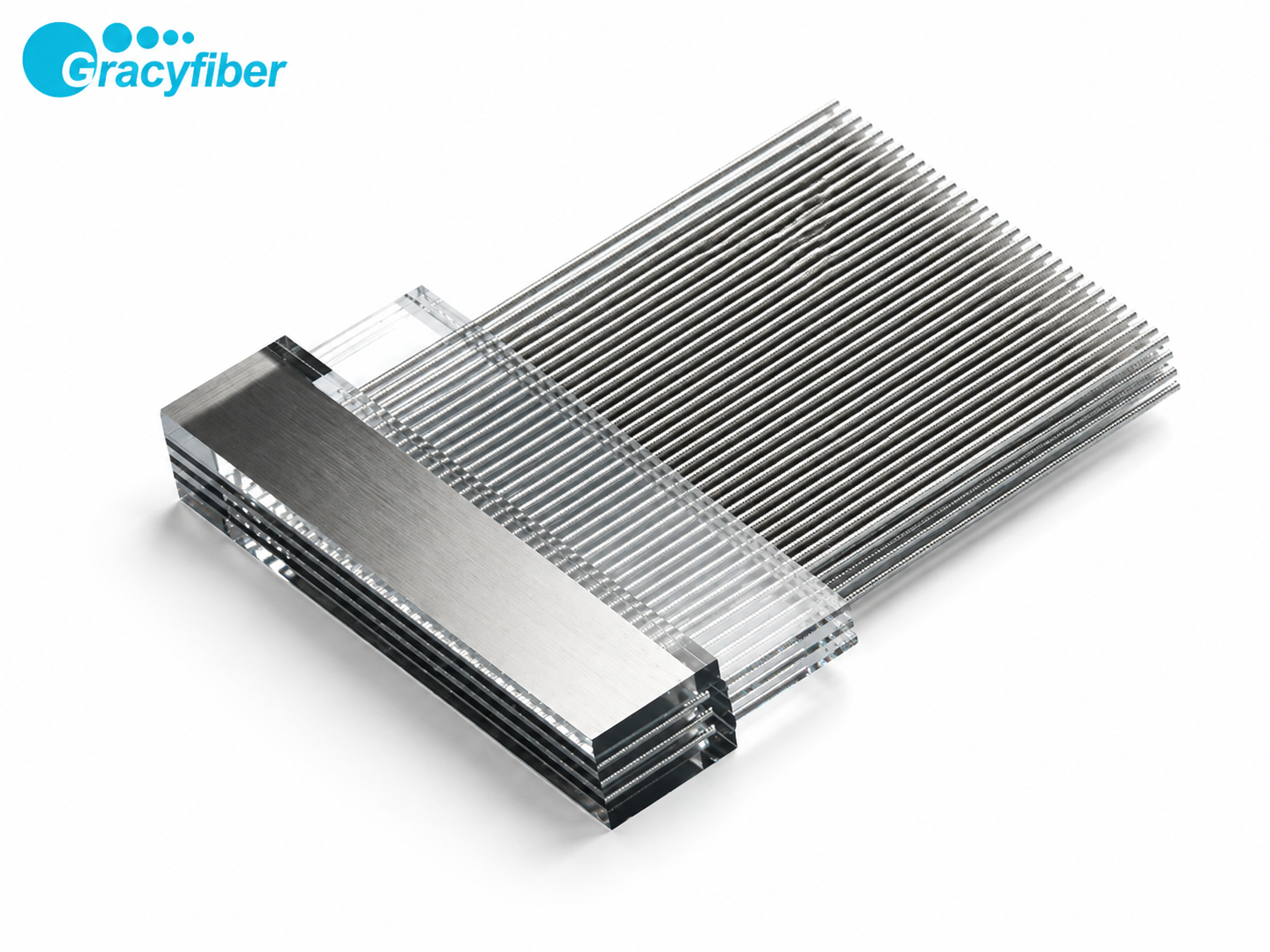

Ultra-High Density 2D Fiber Array Unit 16 Channels to 1024 Channels
Ultra-High Density 2D Fiber Array Unit 16 Channels to 1024 Channels
Specifications
Channel count :
16CH to 1024CH
Core pitch :
127µm ±1µm
Insertion loss :
0.5dB
Return loss :
UPC ≥40dB, APC ≥50dB
Substrate material :
Glass or ceramic
Fiber options :
Customized
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
Description

Ultra-High Density 2D Fiber Array Unit 16 Channels to 1024 Channels

1. Product Introduction


The Ultra-High Density 2D Fiber Array Unit is a high-precision optical fiber interface solution designed for next-generation AI computing, high-performance computing, silicon photonics, and co-packaged optics applications.

2. Features

  • Ultra-high-density 2D matrix fiber array design
  • Scalable channel count from 16CH to 1024CH
  • 127µm core pitch with ±1µm pitch tolerance
  • Low insertion loss, typical 0.5dB
  • High return loss: UPC ≥40dB, APC ≥50dB
  • Glass or ceramic substrate with customized fiber options

3. Applications

  • AI/GPU optical interconnects
  • Co-packaged optics, CPO, and NPO systems
  • 800G / 1.6T and higher-speed optical modules
  • Silicon photonics packaging
  • High-performance computing optical networks
  • Compact multi-channel optical engines
