MPO/MTP Cassette Fiber Optic Patch Panel

1. Product Description

The MPO/MTP Cassette Fiber Optic Patch Panel is a high-density fiber management solution designed for structured multi-fiber cabling in data centers, enterprise networks, telecom equipment rooms, and other optical infrastructure.

The panel accommodates modular MPO/MTP cassette units that provide an organized interface between high-fiber-count MPO/MTP trunk cables and equipment-side fiber connections. Depending on the cassette configuration, the system can support MPO/MTP-to-LC or other predefined fiber interconnection architectures.

Its modular structure allows fiber connections to be organized within a rack-mounted enclosure while simplifying installation, maintenance, and future cabling changes.

Fiber type, MPO/MTP configuration, cassette quantity, front-panel connector type, polarity, fiber count, and rack format can be specified according to project requirements.

2. Key Features

• High-Density MPO/MTP Connectivity
  Uses multi-fiber MPO/MTP interfaces to manage multiple optical fibers within a compact rack space.
• Modular Cassette Design
  Supports replaceable cassette modules according to the panel and network configuration.
• MPO/MTP Trunk Integration
  Provides an organized connection point for high-fiber-count MPO/MTP trunk cable systems.
• Equipment-Side Breakout Options
  Depending on the cassette design, MPO/MTP fibers can be mapped to LC or other supported equipment-side interfaces.
• Single-Mode and Multimode Options
  Can be configured for corresponding single-mode or multimode fiber systems.
• Structured Fiber Management
  Helps organize fiber routing, connection points, and patching within racks and cabinets.
• Passive Optical Infrastructure
  Requires no electrical power and performs no optical amplification, switching, or wavelength conversion.
• Flexible System Configuration
  Cassette type, connector interface, fiber count, polarity, and panel capacity can be selected according to the cabling architecture.

3. Main Applications

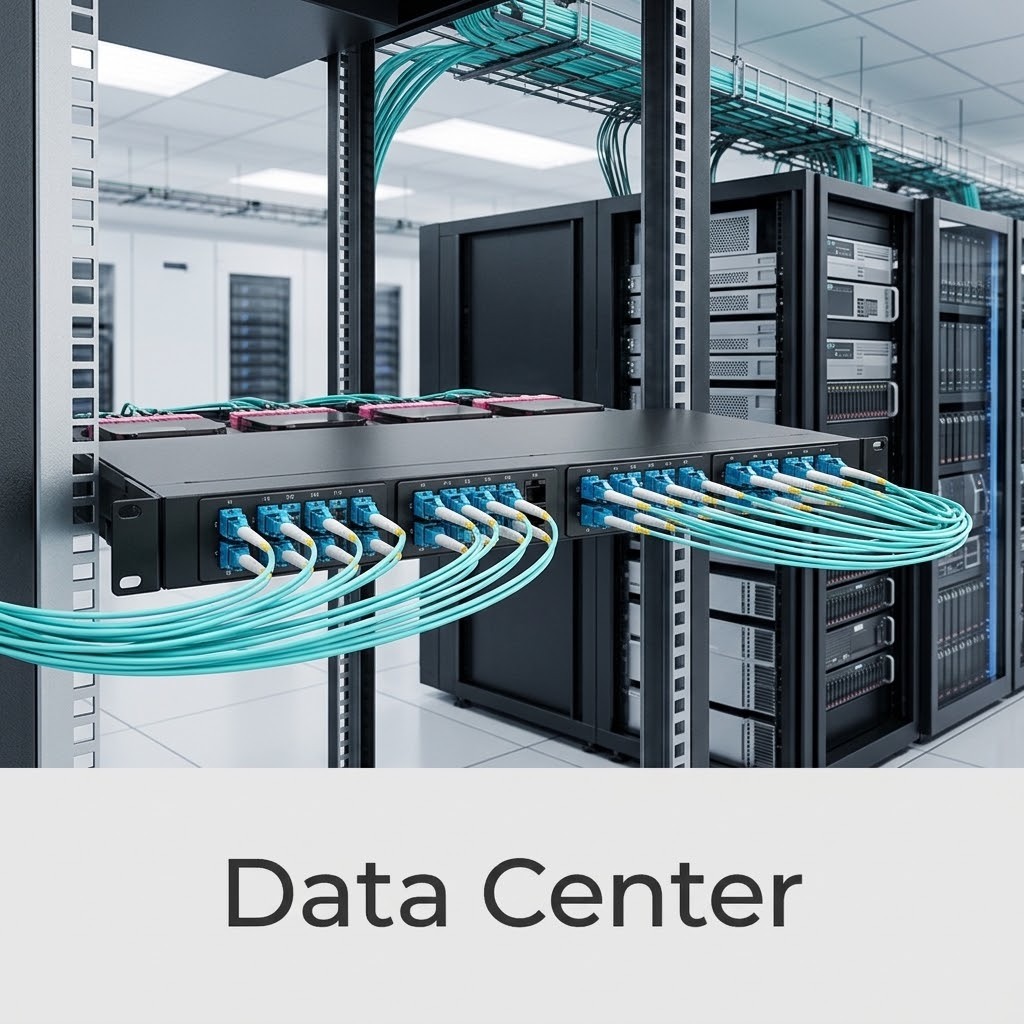

• Data center structured cabling
• High-density fiber interconnection
• MPO/MTP trunk cable systems
• Spine-leaf network cabling
• Server and switch interconnection

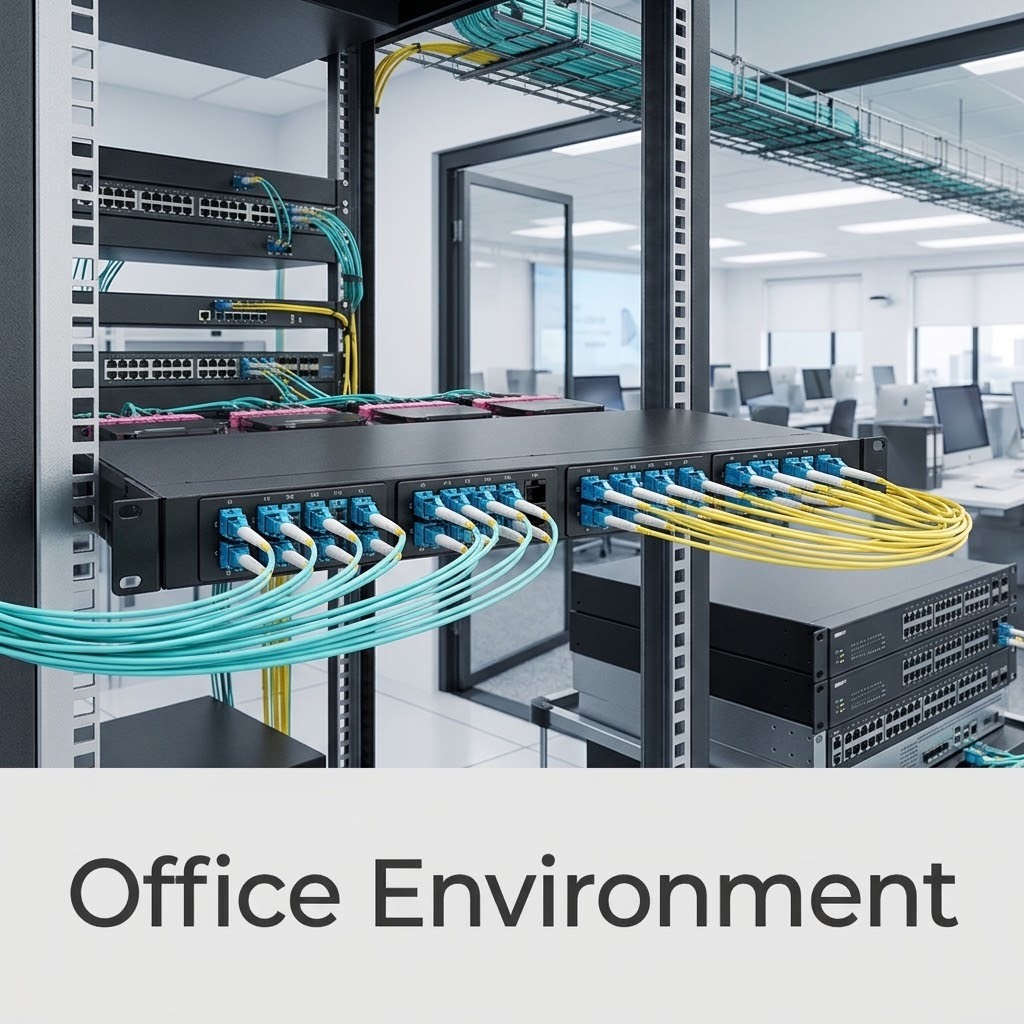

• Enterprise backbone networks
• Telecom equipment rooms
• Optical Distribution Frames
• Cloud data center infrastructure
• High-fiber-count rack cabling

4. FAQ

Q1: What is an MPO/MTP cassette patch panel?

It is a rack-mounted fiber management system that houses MPO/MTP cassette modules for organizing and interconnecting high-density fiber links.

Q2: What does an MPO/MTP cassette do?

Depending on its design, a cassette can provide a connection between an MPO/MTP trunk cable and multiple equipment-side fiber interfaces, such as LC connectors.

Q3: Is an MPO cassette patch panel the same as an MPO-to-MPO patch panel?

Not necessarily. An MPO-to-MPO panel normally provides direct MPO/MTP interconnection, while a cassette panel may use internal fiber assemblies to convert or break out MPO/MTP connections to LC or other interfaces.

Q4: Can the panel support both single-mode and multimode fiber?

Yes, depending on the installed cassette, adapters, and fiber assemblies. The fiber type must match the optical system.

Q5: Does the patch panel determine the network transmission speed?

No. The panel provides physical fiber interconnection and management. Actual transmission speed depends on the transceiver, fiber type, MPO/MTP cable configuration, polarity, and complete link design.
