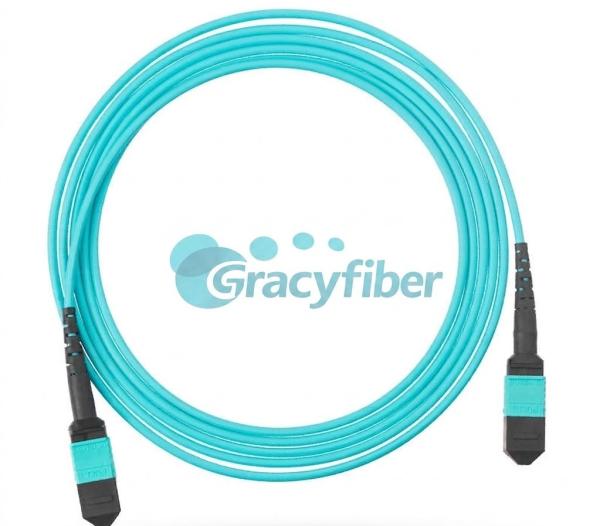

No-Contact MPO Patch Cord (with Push-Pull Tab)
No-Contact MPO Patch Cord (with Push-Pull Tab)
Specifications
Connector Type :
MPO/MTP (Female or Male) with push-pull tab
Fiber Category :
Multimode OM3 / OM4
Fiber Count :
8-core, 12-core, or 24-core
Insertion Loss :
≤0.7dB (Standard), ≤0.35dB (Premium)
Return Loss :
≥20dB
Jacket Material :
LSZH or OFNP rated
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Description

We welcome you to wholesale high-quality customized products from our factory at competitive prices. Please feel free to email us if you have any questions about free samples.


1. Features

  • Integrated push-pull tab design enables rapid, tool-less insertion and extraction in high-density environments.

  • "No-contact" removal mechanism prevents accidental disruption or damage to adjacent active ports.

  • Precision-polished MPO ferrules deliver low insertion loss and high return loss.

  • Compact micro-core cable design optimizes routing space and improves equipment airflow.

  • 100% factory-terminated and interferometry-tested for guaranteed optical reliability.

2. Applications

  • High-density data center cabling and cross-connect infrastructures.

  • 40G QSFP+ and 100G QSFP28 parallel optic transceiver interconnections.

  • Storage Area Networks (SAN) and enterprise Local Area Networks (LAN).

  • Spine-and-leaf network architectures requiring rapid deployment.

3. Specifications

  • Connector Type: MPO/MTP (Female or Male) equipped with a high-density push-pull tab.

  • Fiber Category: Multimode OM3 / OM4 (Standard Aqua jacket).

  • Fiber Count: Available in 8-core, 12-core, or 24-core configurations.

  • Optical Performance: Low Insertion Loss (Standard ≤0.7dB, Premium ≤0.35dB); Return Loss ≥20dB.

  • Jacket Material: LSZH (Low Smoke Zero Halogen) or OFNP (Plenum) rated.

  • Standards Compliance: Fully compliant with IEC-61754-7, TIA-604-5, and RoHS.

4. Keywords

  • No-Contact MPO Patch Cord

  • Push-Pull Tab MPO Cable

  • High-Density MTP MPO Jumper

  • OM3 OM4 MPO Fiber Cable

  • 40G 100G MPO Patch Cord Manufacturer

  • Tool-less MPO Fiber Assembly
