WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component
WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component
WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component
WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component
WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component
WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component
Specifications
Operating wavelength :
1250–1650nm
Transmission/reflection ratio :
T²/R98
Insertion loss :
70% ≤ 0.25dB, 30% ≤ 0.3dB
Return loss :
≥ 50dB
Model Number :
850005043
Description

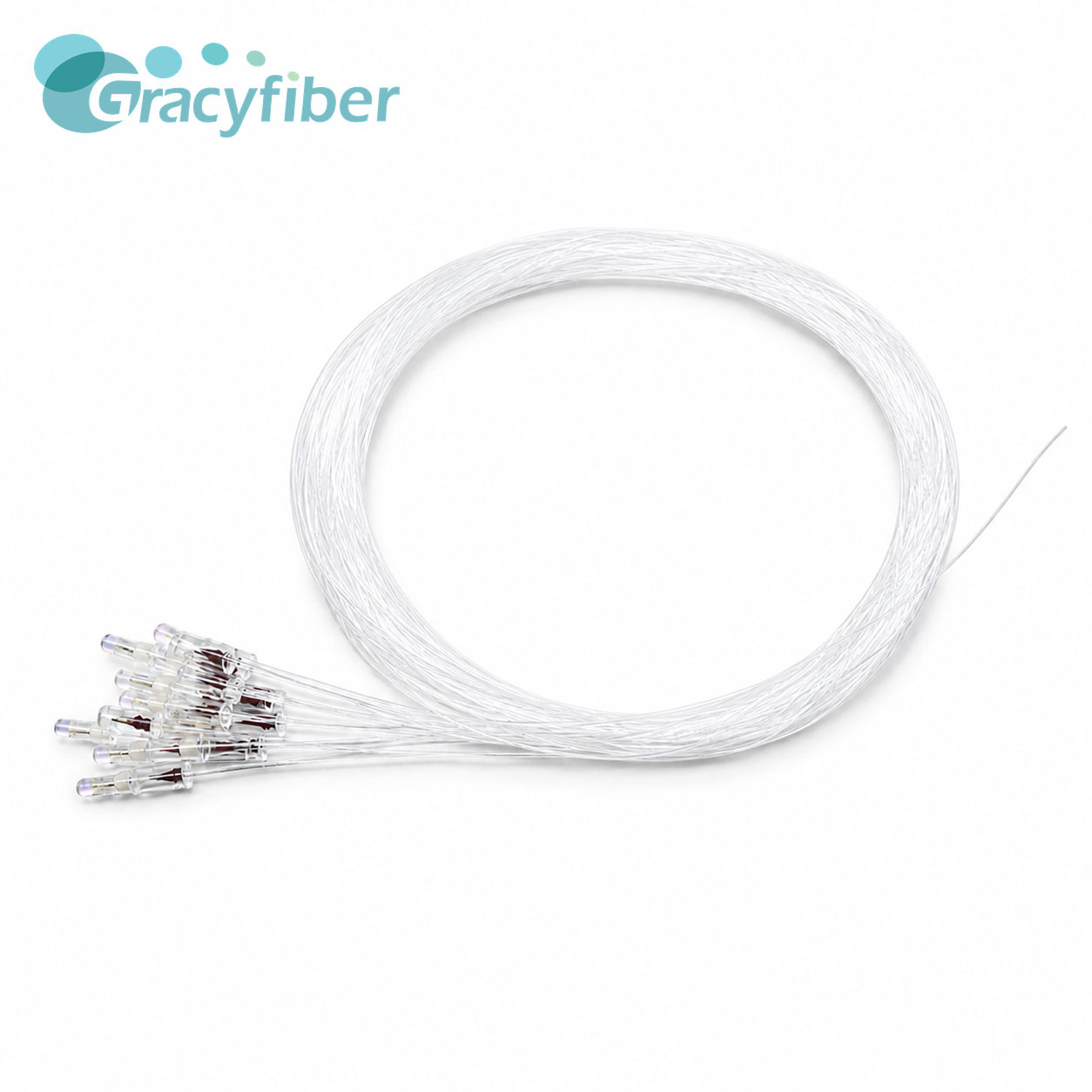

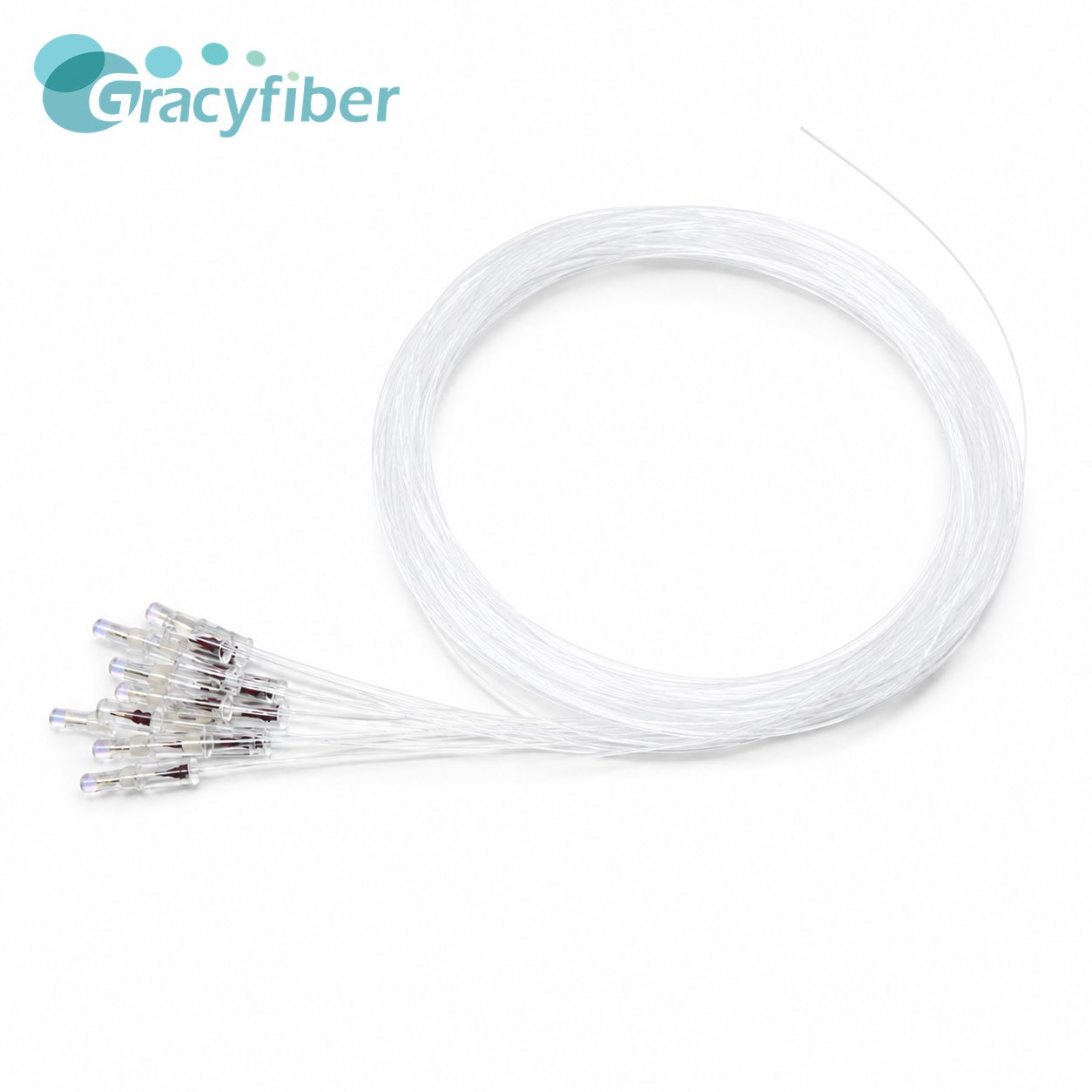

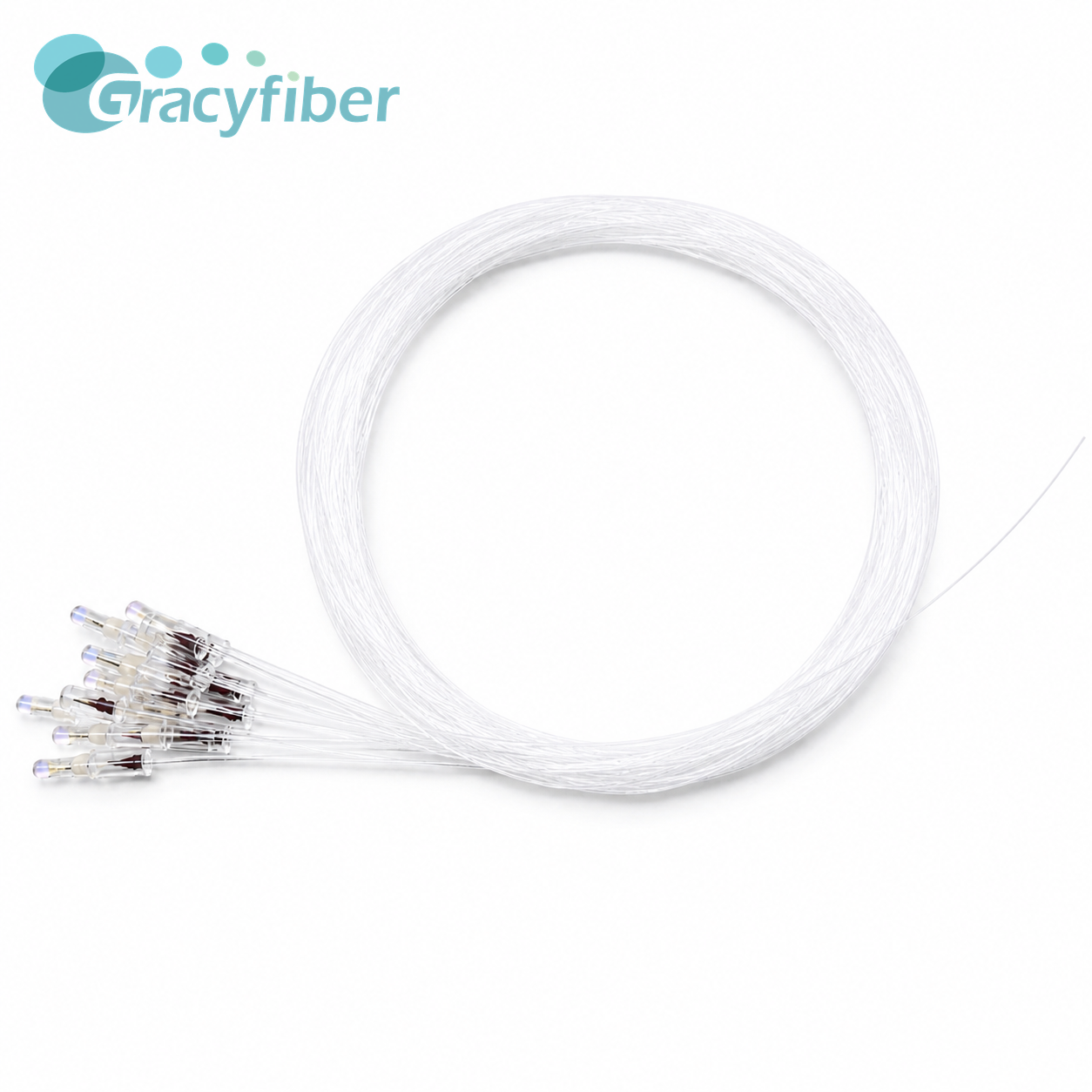

WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component
Product Overview

This WDM reflective module covers the 1250–1650nm wavelength band and adopts a T2/R98 transmittance/reflection ratio design, achieving approximately 98% optical signal reflection and approximately 2% transmission.

Product Features

WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component

WDM Reflective Assembly T2 R98 1250–1650nm SMF-28e Fiber Low Loss Dual Fiber Lens Component

  • Operating wavelength range: 1250–1650nm
  • Transmission/reflection ratio: T²/R98
  • Insertion loss (RIL) at the reflection end is controlled according to graded requirements: 70% ≤ 0.25dB, 30% ≤ 0.3dB
  • Return loss (RL) ≥ 50dB
  • Uses SMF-28e single-mode fiber
  • Equal optical path design
  • Fiber is not color-coded
  • Assembled through a glass tube; the glass tube is not fixed
  • Glass tube dimensions: OD 2.78 * ID 1.81 * L 6mm
  • Product length is determined based on the actual length of customer-supplied materials
  • Custom-supplied materials include the glass tube, dual fiber, and lens
  • Uses domestically produced adhesive for component assembly
  • Uses foam for simple packaging
  • Customization is supported based on customer-supplied optical components and assembly requirements
Applications
  • Broadband optical signal reflection components
  • Optical line power sampling and monitoring
  • Fiber optic sensing systems
  • Optical inspection and measurement equipment
  • Optical network monitoring modules
  • Customized optical path components
  • Assembly of passive optical devices
  • Laboratory optical system integration
