High Isolation Reflective Wavelength Division Multiplexing WDM Device
High Isolation Reflective Wavelength Division Multiplexing WDM Device
Specifications
Place of Origin :
China
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
MOQ :
100pcs
Name :
Wavelength Division Multiplexing WDM
Power Handling :
Up to 500 mW
Isolation :
≥ 30 dB
Insertion Loss :
≤ 1.0 dB
Return Loss :
≥ 45 dB
Operating Temperature :
-40°C to +85°C
Channel Spacing :
100 GHz, 50 GHz, or custom
Payment Terms :
T/T
Description

High-Isolation Reflective Wavelength Division Multiplexer (WDM)

1. Product Overview

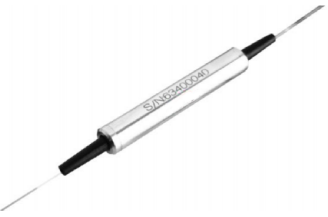

GRACYFIBER's high-isolation reflective wavelength division multiplexer (WDM) is a miniaturized, high-performance bidirectional filtering component designed for seamless separation of 1310 nm and 1550 nm signals in a single fiber. It is an indispensable core optical engine in GPON/XGS-PON modules, 5G fronthaul, and hybrid access networks. With up to 50 dB transmission isolation and ultra-low insertion loss, this device enables efficient spectral routing without the use of any active components. Its ultra-compact 3.0 x 15 mm package allows for direct and seamless integration into extremely crowded BOSA (Bidirectional Optical Submodule) and transceiver units, providing superior signal integrity for next-generation optical networks requiring stringent channel separation.

2. Product Features
Parameter Unit Value
Operating Wavelength nm 1260~1620

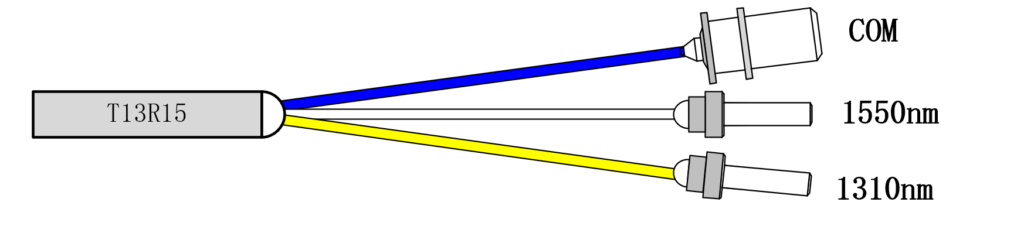

Pass Band Wavelength nm 1310 (1260~1337) 1550 (1503~1577)
Reflect Band Wavelength nm 1550 (1503~1577) 1310 (1260~1337)
Insertion Loss Max.Pass dB 1.1 1.1
Max.Reflect dB 0.7 0.7
Isolation Transmission dB ≥50 ≥50
Reflection dB ≥15 ≥15
Ripple Max dB 0.5 0.5
PDL Max dB 0.10
Return Loss Min dB 40
Directivity Min dB 50
Power Handing Max mW 300
Fiber Type - G67A1/ A2/ B3 or SMF-28
Fiber Coating um 250 µm / 600 µm loose tube
Fiber Length mm 100
Connector - LC/UPC(Receptacle & Ferrule)

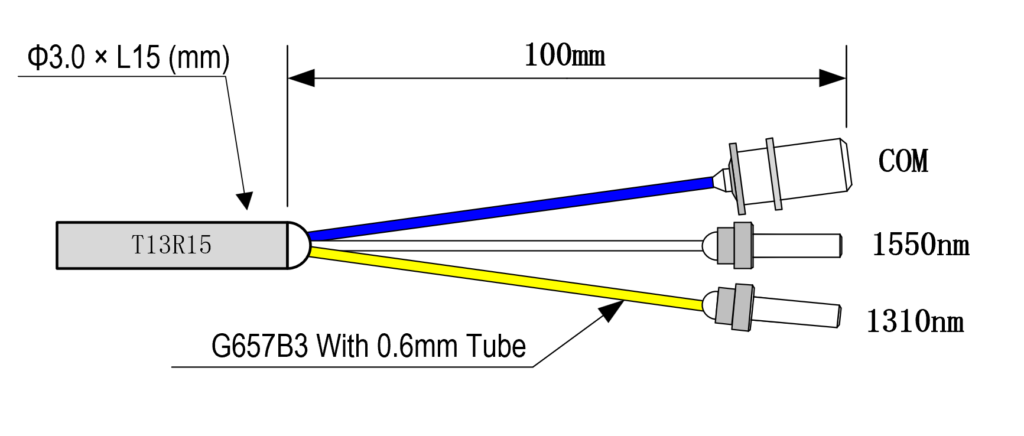

Package Dimension (ΦxL) mm Φ3.0xL15
Operating Temperature °C -20~70
Storage Temperature °C -40~85

(Designed specifically to address space constraints and crosstalk in single-fiber bidirectional transmission within optical modules)

Features: Extreme miniaturization design ($Phi 3.0 × L15 mm$)
Pain points/value addressed: The overall steel tube dimensions are strictly controlled to a diameter of only 3.0 mm and a length of only 15 mm. This extreme miniaturization directly alleviates the cabling crisis faced by optical module (such as SFP+, QSFP28) hardware engineers within a confined enclosure, enabling easy integration into the BOSA assembly of ONU/OLT devices without the need to redesign expensive module molds.
Features: Ultra-high channel isolation ($≥ 50 dB) addresses key
pain points and provides value: The transmission end offers up to 50 dB of isolation when separating the 1310 nm and 1550 nm bands. This forms an absolute optical barrier, completely blocking crosstalk from high-power emitted light to the extremely sensitive receiver (Rx), ensuring zero bit error rate even over extremely long distances in a single-fiber bidirectional (BiDi) link.
Features: Ultra-low insertion loss and extremely low PDL
Pain points addressed/value: Despite its tiny size, its maximum insertion loss at the transmission end is only 1.1 dB, and at the reflection end it's as low as 0.7 dB. Combined with a maximum polarization dependent loss (PDL) of only 0.10 dB, it can salvage valuable optical power budget for your power-sensitive PON links, significantly increasing the network's coverage radius.
Features: Receptacle & Ferrule (socket and ferrule) direct connection interface design
Pain points addressed/value: The port innovatively adopts an LC/UPC connection form with adapter sockets and ferrules. This "plug-and-play" device-level interface greatly simplifies the coupling and assembly process on optical module production lines, significantly improving yield and assembly efficiency in large-scale manufacturing.
Features: Highly reliable industrial-grade temperature stability
addresses key pain points and provides value: Supports stable operation in harsh environments ranging from -20°C to 70°C, with a storage temperature range of -40°C to 85°C. Unaffected by drastic temperature fluctuations in outdoor optical node chassis, ensuring a long service life for FTTH networks.
3. Application Scenarios

Our Reflective WDM devices are the core link connecting optical chips to external physical fiber optic networks:

  • GPON/XG-PON/XGS-PON Optical Transceiver Modules: Separate downlink high-speed video/data signals from uplink user data.
  • BiDi (Single-Fiber Bidirectional) Optical Modules: Provide underlying frequency division support for single-fiber interconnects between data centers and 5G fronthaul.
  • BOSA (Bidirectional Optical Submodule) Integration: Essential core filtering devices for OEMs to package optoelectronic components.
  • OLT (Optical Line Terminal) and ONU (Optical Network Unit): Physical layer signal distribution hubs for central office and user-end equipment.
  • Optical Sensing and Network Monitoring: Non-destructively injecting or extracting specific probe wavelengths in sensing links.
