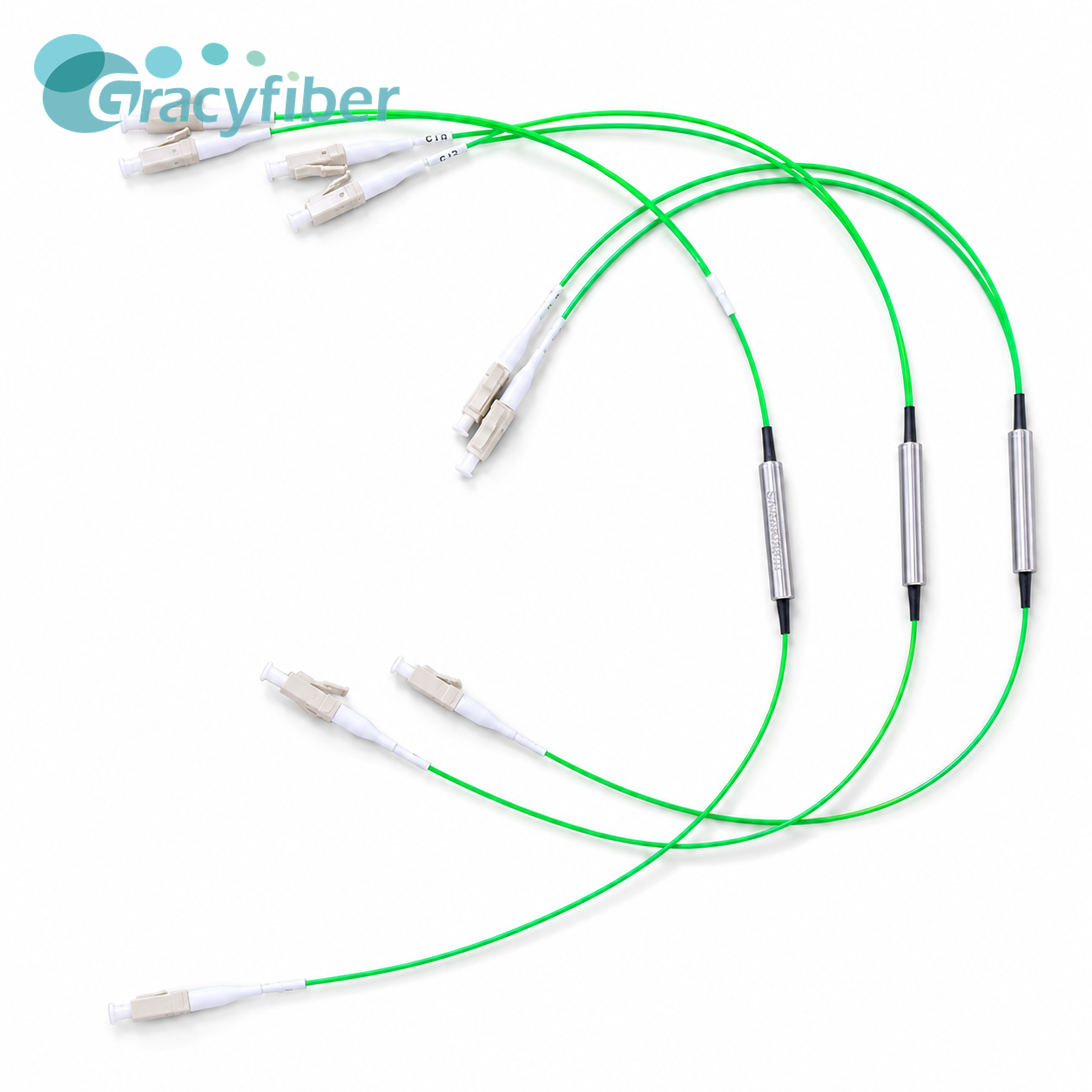

1x2 Tap WDM MM T30 R70 Multimode Fiber Coupler 850 950nm OM5 Corning Fiber LC UPC for Optical Monitoring
1x2 Tap WDM MM T30 R70 Multimode Fiber Coupler 850 950nm OM5 Corning Fiber LC UPC for Optical Monitoring
1x2 Tap WDM MM T30 R70 Multimode Fiber Coupler 850 950nm OM5 Corning Fiber LC UPC for Optical Monitoring
1x2 Tap WDM MM T30 R70 Multimode Fiber Coupler 850 950nm OM5 Corning Fiber LC UPC for Optical Monitoring
1x2 Tap WDM MM T30 R70 Multimode Fiber Coupler 850 950nm OM5 Corning Fiber LC UPC for Optical Monitoring
1x2 Tap WDM MM T30 R70 Multimode Fiber Coupler 850 950nm OM5 Corning Fiber LC UPC for Optical Monitoring
Specifications
Operating Wavelength :
850–950nm
Transmission Insertion :
≤6.1dB
Reflection Insertion :
≤2.2dB
Maximum Optical Power :
300mW
Description
1. Product Description

This 1*2 Tap WDM MM is an optical power distribution and monitoring device designed for multimode fiber optic systems.

2. Key Features
Parameters T30R70
Operating Wavelength (nm) 850–950(LED light source)
Transmission Insertion (dB) 6.1
Reflection Insertion (dB) 2.2
Fiber Type Corning OM5 of Green 0.9 mm loose tube
PDL (dB) ≤0.2
RL (dB) ≥20
Directivity (dB) ≥25
Maximum Optical Power (mW) 300
Fiber Length (cm) 18–22(Including Connector)
Operating Temperature (°C) -5–75
Storage Temperature (°C) -40–85
Package Dimension (mm)(Φ*L) 5.5 * 38
Connector LC/UPC(MM)

1*2 Multimode Tap WDM Structure

Operating Wavelength Range: 850~950nm

T30 Splitting Ratio

Transmission Insertion Loss: ≤6.1dB

Reflection Insertion Loss: ≤2.2dB

Return Loss: ≥20dB

Directivity: ≥25dB

PDL: ≤0.2dB

Maximum Handling Optical Power: 300mW

Uses Corning OM5 Multimode Fiber

0.9mm Green Loose Tube

LC/UPC Multimode Connector

Compact Package: Φ5.5*38mm

1x2 Tap WDM MM T30 R70 Multimode Fiber Coupler 850 950nm OM5 Corning Fiber LC UPC for Optical Monitoring

3. Applications
  • Multimode Optical Link Power Monitoring
  • Data Center Multimode Transmission
  • LAN / Enterprise Network
  • Optical Power Tapping
  • Internal Monitoring of Optical Communication Equipment
  • LED Light Source Testing System
  • Short-Distance Multimode Fiber Transmission System
