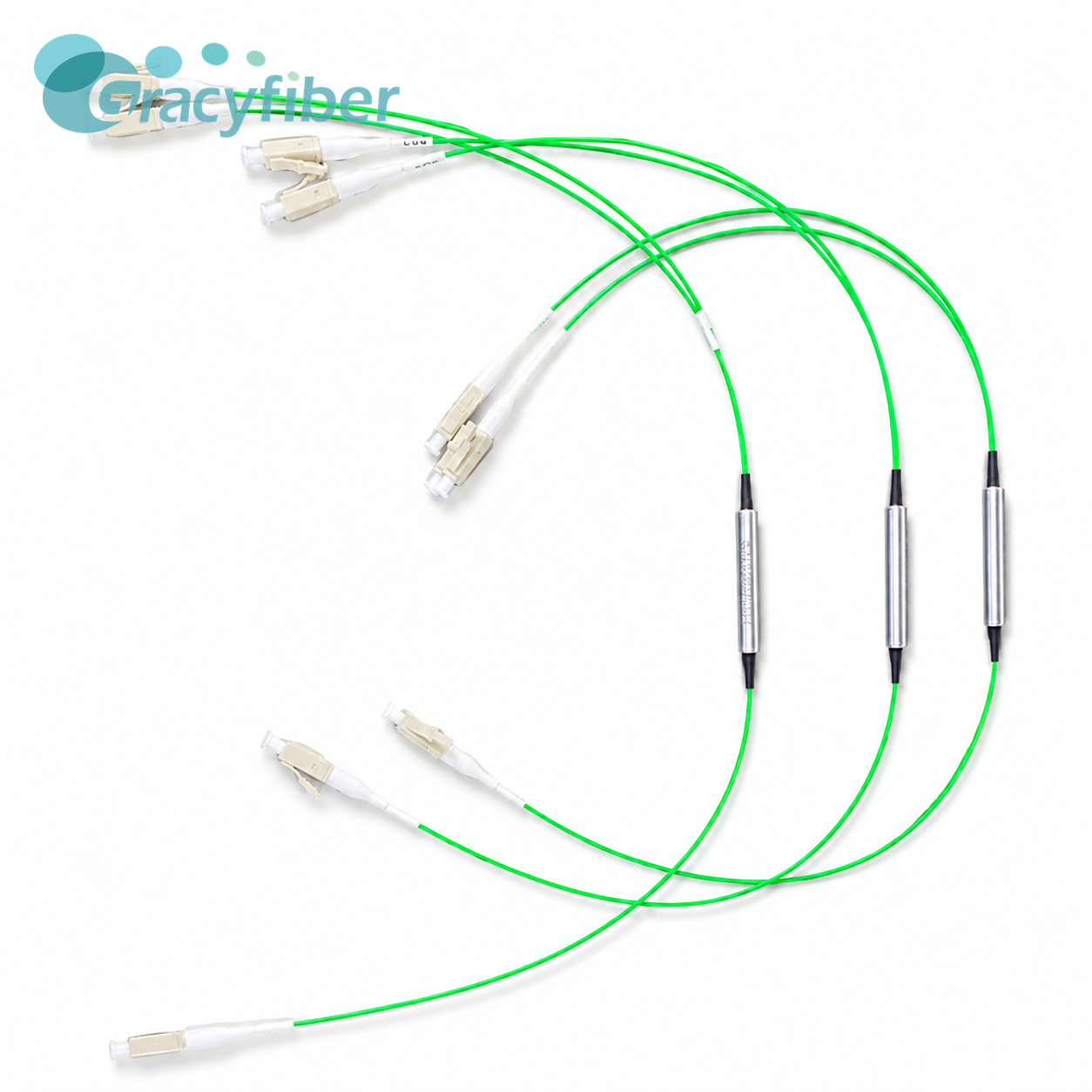

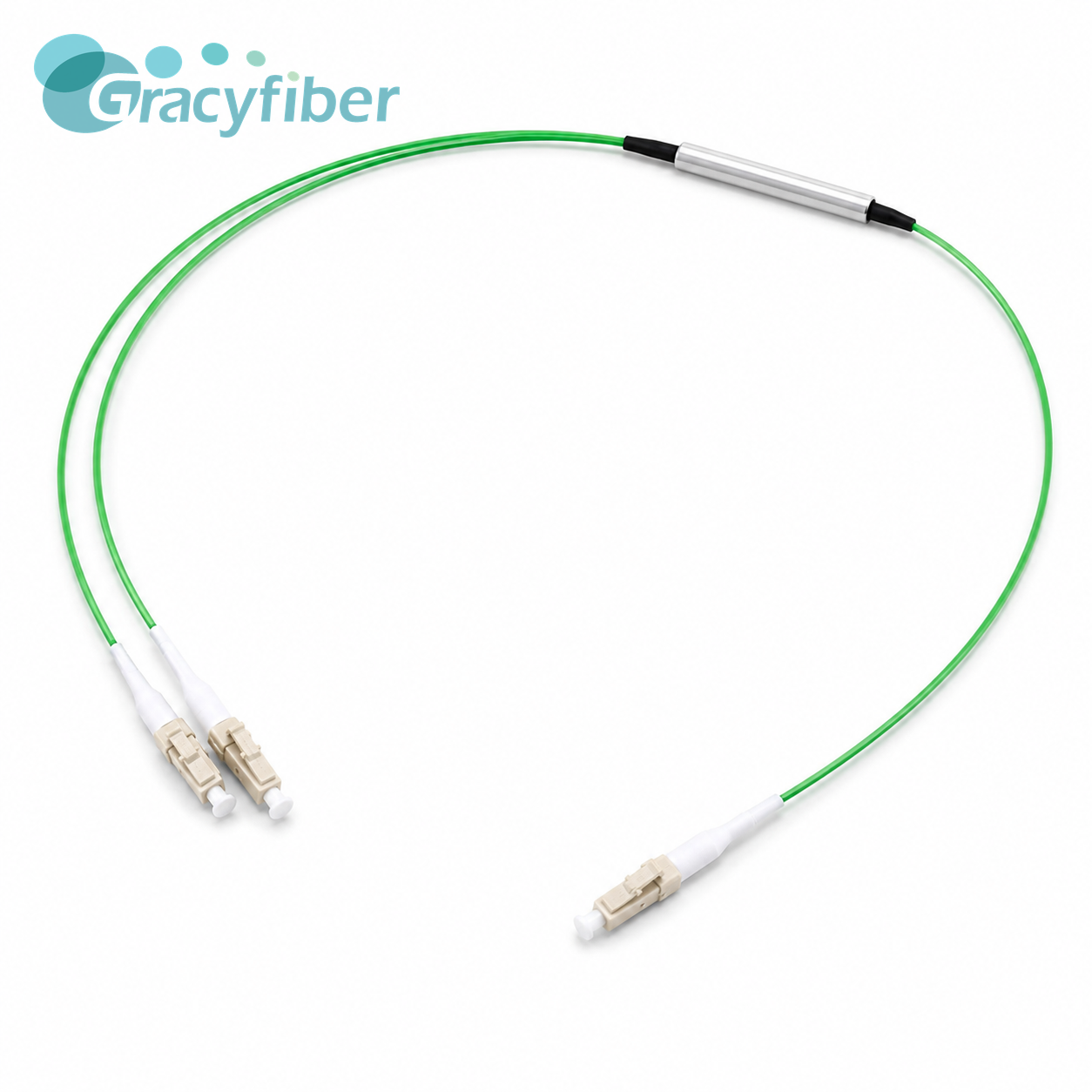

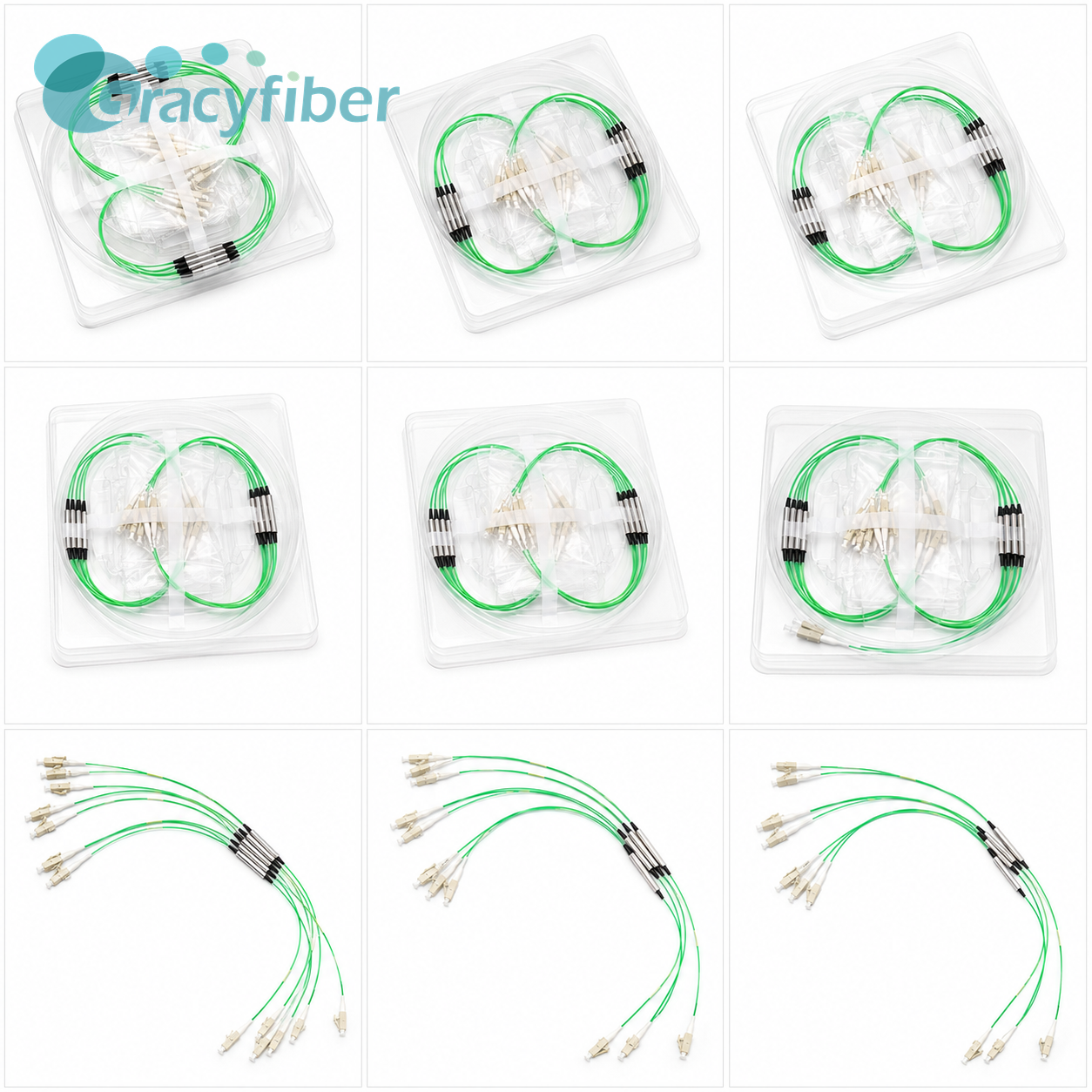

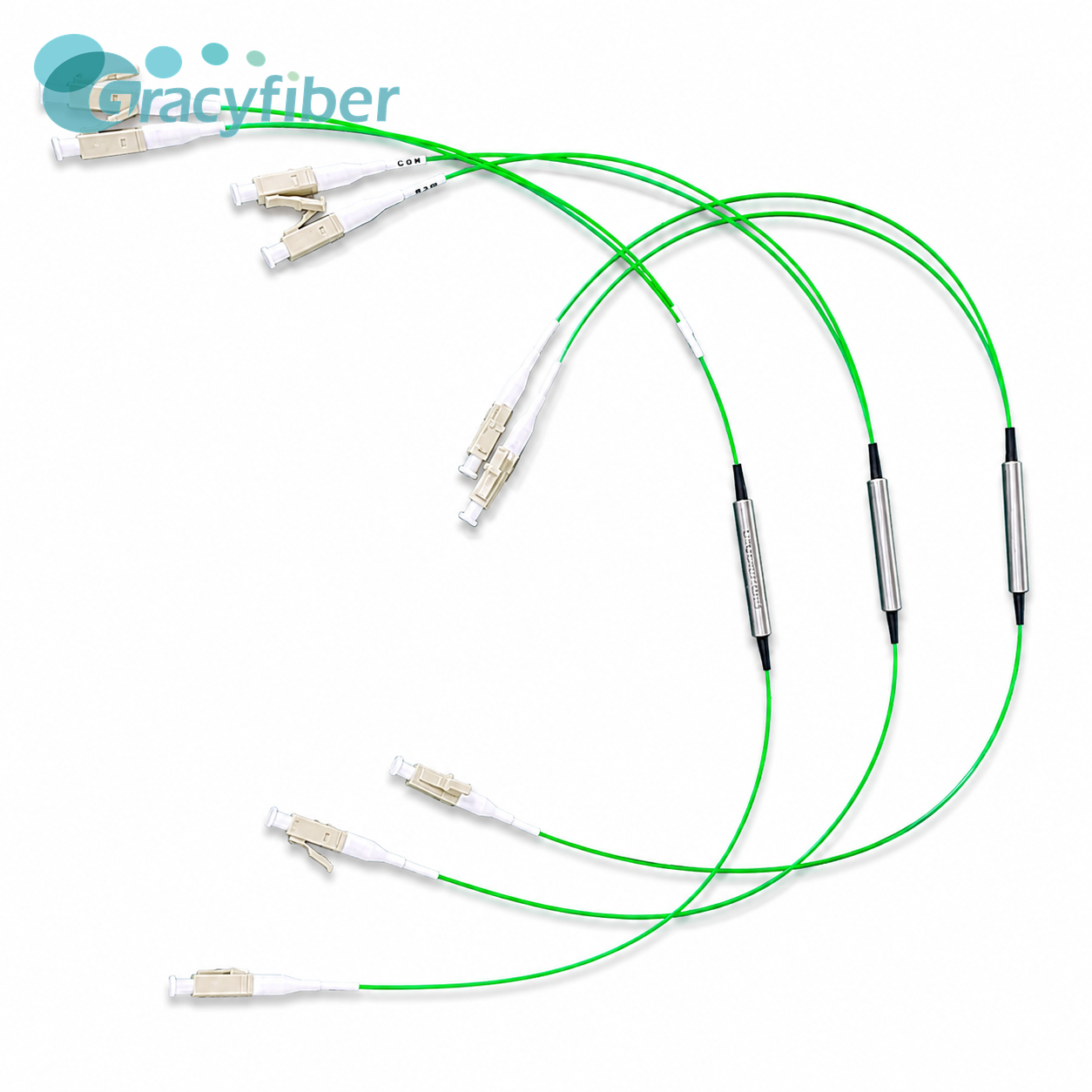

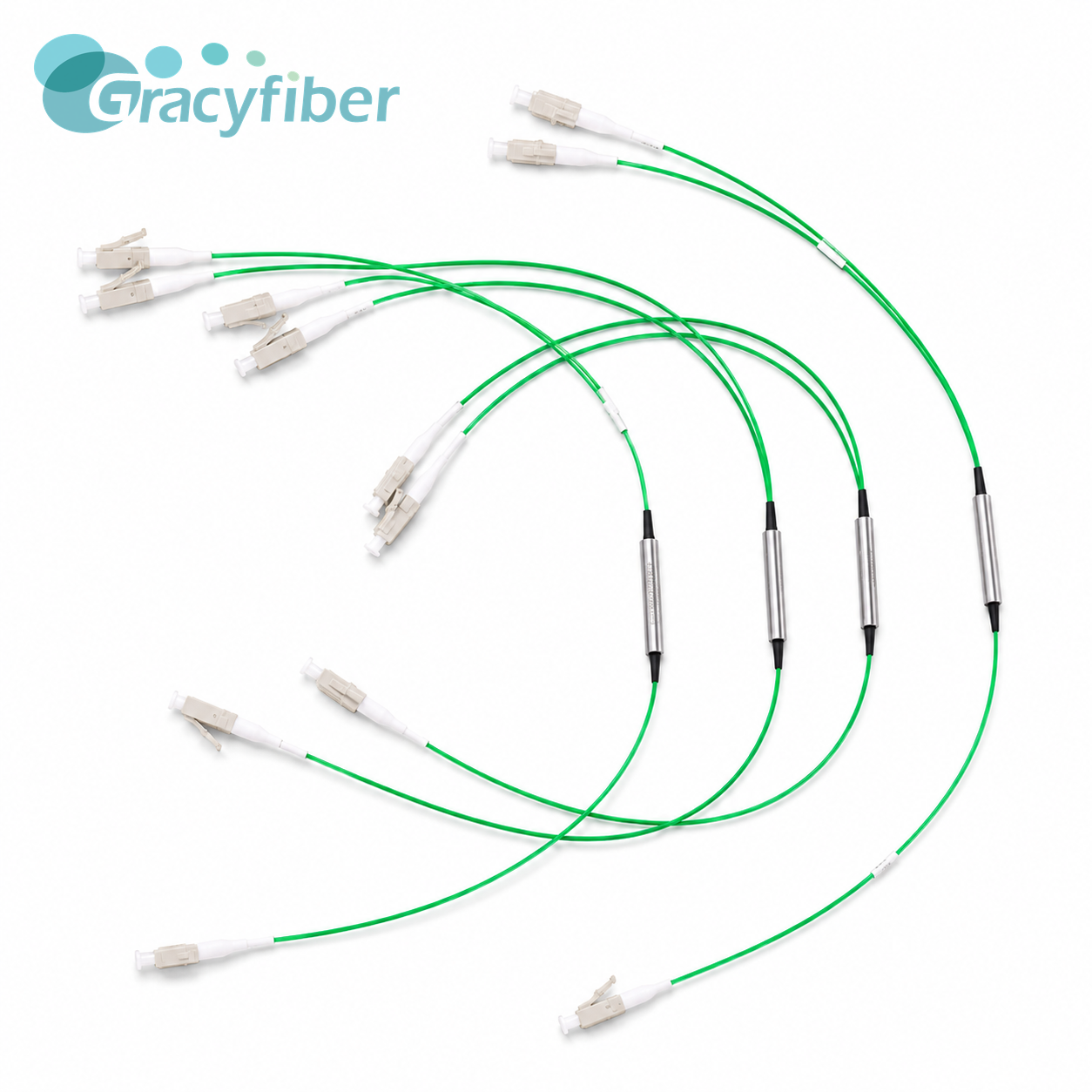

1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector
Specifications
Maximum Optical Power :
300mW
Fiber Length :
18-22cm
Operating Wavelength :
850-950nm
Transmission Insertion :
3.8dB
Description
Product Overview:

This 1×2 Tap WDM multimode module employs a T50:R50 split structure, operating at wavelengths from 850–950nm, and is suitable for LED light source applications.

Key Features:
Parameters T50R50
Operating Wavelength (nm) 850–950(LED light source)
Transmission Insertion (dB) 3.8
Reflection Insertion (dB) 3.8
Fiber Type Corning OM5 of Green 0.9 mm loose tube
PDL (dB) ≤0.2
RL (dB) ≥20
Directivity (dB) ≥25
Maximum Optical Power (mW) 300
Fiber Length (cm) 18–22(Including Connector)
Operating Temperature (°C) -5–75
Storage Temperature (°C) -40–85
Package Dimension (mm)(Φ×L) 5.5 × 38
Connector LC/UPC(MM)
  • 1×2 Tap WDM Multimode Module
  • T50:R50 Splitting Ratio
  • Operating Wavelength 850–950nm
  • Suitable for LED Light Sources
  • Corning OM5 Multimode Fiber
  • Green 0.9mm Loose Tube
  • Transmission Insertion Loss ≤3.8dB
  • Reflection Insertion Loss ≤3.8dB
  • PDL ≤0.2dB
  • Return Loss ≥20dB
  • Directivity ≥25dB
  • Maximum Optical Power 300mW
  • LC/UPC Multimode Connector
  • Fiber Length 18–22cm
  • Steel Tube Encapsulation Size φ5.5×38mm
  • Operating Temperature -5~75°C
  • Storage Temperature -40~85°C

1x2 MM Tap WDM Module 850 950nm T50 R50 OM5 Multimode Fiber Tap Coupler Low Loss LC UPC Connector

Applications:
  • Multimode Optical Communication Systems
  • Optical Signal Splitting
  • Optical power monitoring
  • Data center multimode links
  • 850nm optical module testing
  • Fiber optic link monitoring
  • Multimode optical device integration
  • Optical communication equipment R&D and production
