200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
Specifications
Brand Name :
Global Power
Model Number :
GP P160
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Prime Power :
160KW / 200KVA
Standby Power :
176KW / 120 KVA
Excitation System :
Brushless, self-exciting
EngineAlternator :
Perkins Stamford UCI274F
Alternator :
Stamford, Meccalte, Faraday， copy Stamford, etc.
Rated Voltage :
400V / 230V
Dimension :
2377*780*1350 MM
Weight :
1465 KG
Description

200 KVA 400 V 3 Phase Silent Diesel Generator , Commercial Diesel Generators

Applications:

1. Construction

2. Transport and logistics

3. Water treatment facilities

4. Hospitals

5. Landfills

6. Minings

etc.

200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators

1.Gen-set
The model of the unit: GPP160
Power: 160KW/200KVA
Rated voltage: 400V/230V
Rated current: 288A (adjustable)
Rated frequency: 50Hz/60Hz
The factor of rated power COS=0.8(lag)
The regulating rate of steady voltage: ≤±0.5%
The regulating rate of instantaneous voltage: ≤-10%/ +15%
The time of steady voltage: ≤1.5sec
The waving rate of voltage: ≤0.5%
The regulating rate of steady frequency: C≤3%
The regulating rate of instantaneous frequency: ≤±5%
The time of steady frequency: 3sec
The waving rate of frequency: ≤0.25%
The waste of fuel with full load: 204g/kw/h
size(mm):

2377*780*1350
weight: 1465KG

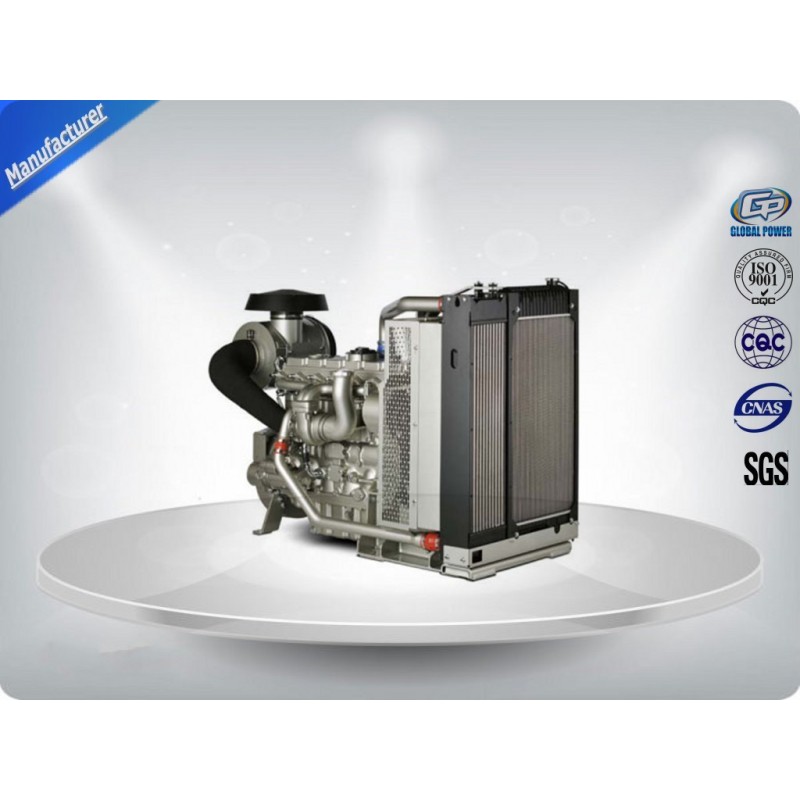

2.Engine
Brand: PERKINS
Model:

1106A-70TAG4
Type:

four strokes, waste gas turbine boost,direct

spurting type
Cooling way: water cooling
With Type: Inline type
Bore *Trip : 105mm*135mm
Displacement 7 L
Lubricating oil capacity: 16.5L
Cylinder: 6cylinders
Rotating speed: 1500r/min or 1800r/min
The regulation of rotating speed: E-Speed
Starting way: DC24V starting with electricity

3.Alternator
Brand: Stamford,Meccalte, Faraday, Copy Stamford
Type: brushless (AVR automatic voltage regulating)
The connecting way of the phase: three phases four lines
Insulation degree: H degree
Grading Protection: IP21/23

200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators

Configurations recommended as per different requirements (if required)

1) Silent shell:noise level 64dB at 7m, 4-8mm thickness base frame, 2-3 thickness shell body, industrial class soundproof cotton, smaller shake, smaller noise!

2) AMF+ATS system: auto-start and supply electricity when mains failure within 3 s , or directly transport electricity to the mains.

3) Parallel system: realize auto-parallel, auto load distribution, auto stop when load released. The cabinets are connected by 100% copper busbar.

4) Trailer: pull the generator set to anywhere required, suitable for wildness / construction places etc. With front steering system, big fuel tank, hand brake, plate-spring damping, brand new tires etc.

5) Controller: display all the running parameters of alternator & engine, provide related protection for them, realize the remote control etc.

200KVA 400V 3 Phase Silent Diesel Generator , Commercial Diesel Generators

FAQ

1.What's the power range of diesel generators?

Power range from 5kva~3000kva.

2.What's the delivery time?

Delivery within 7 days after deposit confirmed.

3.What's your payment term?

1.We accept 30% T/T as the deposit,the balance payment paid before delivery

2. L/C at sight

4.What's your warranty?

Warranty is one year or 1000 hours which comes first.

5.What's your MOQ?

MOQ is 1 set.

6.What’s the frequency of diesel generators?

50/60HZ

7.What’s the voltage of your diesel generator?

Voltage is 220/380V,230/400V,240/415V, just as per your request.
