1200Kva-1250Kva Synchronous Brushless AC Alternator Three Phase H Insulation Class
1200Kva-1250Kva Synchronous Brushless AC Alternator Three Phase H Insulation Class
1200Kva-1250Kva Synchronous Brushless AC Alternator Three Phase H Insulation Class
1200Kva-1250Kva Synchronous Brushless AC Alternator Three Phase H Insulation Class
Specifications
Brand Name :
Gloabl Power
Model Number :
GPI 6E
Certification :
CE / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets/year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Voltage :
440 - 480V,380V
Rated Frequency :
60 Hz
Rated Power :
1200kva, 1250kva
Rotation Speed :
1800 r/min
Output Type :
AC Three Phase
Insulation class :
H
Protection Grade :
IP 23
Connection Type :
Brushless, self-exciting
Dimension :
183 x 92 x 140(cm)
Description

1200Kva -1250Kva Synchronous Brushless AC Alternator Three Phase H Insulation Class

Our Features :

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid

Technical Specifications :

Control System Ser.4 Separately Excited by P.M.G.
A.V.R MX321 MX341
Voltage Regulation ±1.0% ±1.0%
Control System Ser.4 Self Excited
A.V.R Standard SX460 Optional AS440
Voltage Regulation ±1.0% ±1.0%
Insulation System Class H
Protection IP23
Rated Power Factor 0.8
Stator Winding Double Layer Concentric
Winding Pitch Two Third
Winding Leads 12
Stator Wdg. Resistance 0.002 Ohms Per Phase at 22°C Series Star Connected
Rotor Wdg. Resistance 2.09 Ohms at 22°C
Exciter Stator Resistance 17 Ohms at 22°C
Exciter Rotor Resistance 0.079 Ohms Per Phase AT 22°C
Maximum Overspeed 2250 Rev/Min
1 BEARING 2 BEARING
Weight Comp. Generator 2159 kg 2150 kg
Weight Wound Stator 1050 kg 1050 kg
Weight Wound Rotor 902 kg 860 kg
WR² Ineria 22.9287 kgm2 22.3814 kgm2
Shipping Weight in a crate 2328kg 2329kg
Packing Crate Size 183 x 92 x 140(cm) 183 x 92 x 140(cm)
50 Hz 60 Hz
Telephone Interference THF<2% TIF<50
Cooling Air 1.614 m³/sec 3420 cfm 1.961 m³/sec 4156 cfm
Voltage Series Star 380/220 400/231 415/240 440/254 416/240 440/254 460/266 480/277
kVA Base Rating for Reactance Values500 1000 1000 1000 1000 1150 1200 1250 1300


Voltage Regulator:
SX460 AVR - STANDARD
With this self excited control system the main stator supplies power via the Automatic Voltage Regulator
(AVR) to the exciter stator.
The exciter rotor output is fed to the main rotor through a three phase full wave bridge rectifier.

MX341 AVR
This sophisticated AVR is incorporated into the Stamford Permanent Magnet Generator (PMG) control system. The PMG provides power via the AVR to the main exciter, giving a source of constant excitation power independent of generator output.
We recommend three-phase sensing for applications with greatly unbalanced or highly non-linear loads.

Shaft & Keys:
All generator rotors are dynamically balanced to better than BS6861:Part 1 Grade 2.5 for minimum vibration in operation. Two bearing generators are balanced with a half key.

Insulation / Impregnation:

The insulation system is class 'H'.

All wound components are impregnated with materials and processes designed specifically to provide the high build required for static windings and the high mechanical strength required for rotating components.

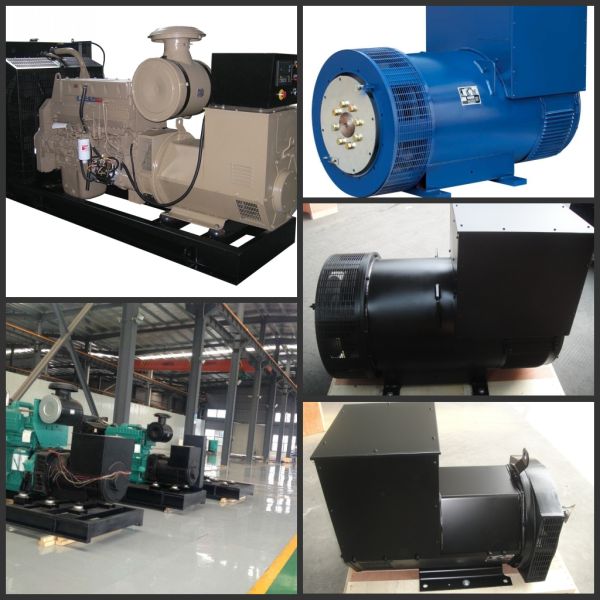

Our Picture:
1200Kva-1250Kva Synchronous Brushless AC Alternator Three Phase H Insulation Class

Guarantee:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
