4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator
4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator
4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator
4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator
Specifications
Brand Name :
Global Power
Model Number :
GP P600
Certification :
OEM / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Engine Brand: :
Perkins
Output Power (kw) :
632
Alternator Brand: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
4006-23TAG2A
Cooling system :
Water-cooled
Speed Governing :
Electronic
Control Module Brand :
Comap,SmartGen, DeepSea
Soundproof Type- Dimension (L*W*H) (mm) :
4400*1850*2500
Soundproof Type-Weight (kg) :
11050
Package :
Plastic foam or plywood case
Description

4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator​
Diesel Generator GPP600 (three phase)

Prime Power (kw/kva)

600/750

Standby Power (kw/kva)

660/825

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

1080

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Open Type-Dimension (L*W*H) (mm)

4450*1650*2400

Open Type-Weight (kg)

5000

Soundproof Type- Dimension (L*W*H) (mm)

4400*1850*2500

Soundproof Type-Weight (kg)

11050

Fuel Tank Capacity(L)

1000

Continuous Running Time(hr.)

6


Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Engine specifications:


1.Main features:

  • Six-cylinder, water-cooled, in-line diesel engine
  • Efficient fuel system for max power output and durability
  • Large-capacity air cleaner
  • Cost effective, fuel efficient and reliable performance
  • Functional engine with compact structure
  • Excellent after-sales service and sufficient spare parts supplying
  • Easy installation and ready access for routine maintenance

2.Technical data
Model 4006-23TAG2A

Engine brand

Perkins

Output Power (kw)

632

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

13.6:1

Displacement (L)

22.9

Bore X Stroke (mm)

160*190

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

105

Fuel Consump. (g/kw·h)

202

Oil Capacity (L)

113.4


Alternator specifications:
Model LVI634B

Alternator brand

Stamford

Rated Power (kw)

600

Excitation System

Brushless, self-exciting

Voltage Regulation Mode

AVR

Connection Type

3phase,4wires,”Y” connection

Pole No.

4

Rotation Speed (r/min)

1500

Temperature Rise (℃)

125

Insulation class

H

Voltage Regulation (0 load)

≥95%～105%

Voltage accuracy

≤±1%

Protection Grade

IP23

Telephone Influence Factor

TIF＜50

Harmonic Coefficient

THF＜2%

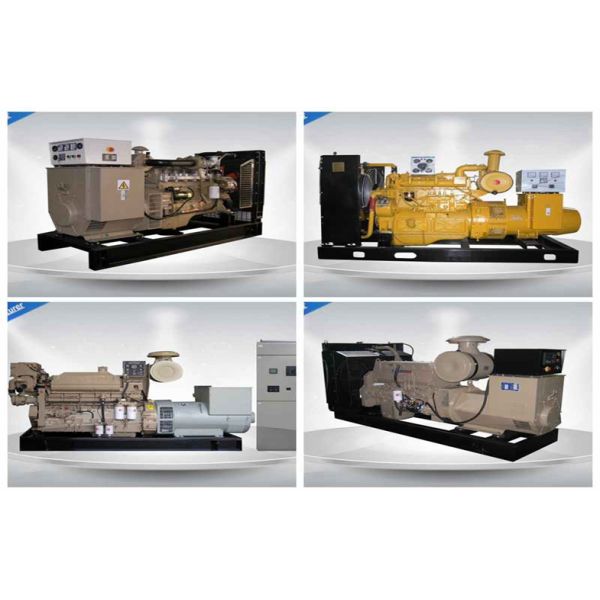

Product Picture:
4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator

Features and benefits

  • Tightly structure, excellent design and craft
  • Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  • Self-diagnostic capability simplifies troubleshooting
  • LCD display shows system status and setup information
  • Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  • Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  • Enclosed muffler for added quietness
  • Service and maintenance accessible through easy-latch side service door

Warranty and Maintenance:

  • Guarantee Period: One year or 1000 running hours whichever comes first.
  • During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  • Spare-parts can also be sent by air express.
  • 24 hours service hotline is available for customers.
