364kw Open Three Phase Industrial Generator Set Silent With Stamford Alternator
364kw Open Three Phase Industrial Generator Set Silent With Stamford Alternator
364kw Open Three Phase Industrial Generator Set Silent With Stamford Alternator
364kw Open Three Phase Industrial Generator Set Silent With Stamford Alternator
Specifications
Engine Brand: :
Perkins
Output Power (kw) :
434
Alternator Brand: :
Stamford / Meecalt / Copy Stamford
Engine Model: :
2506C-E15TAG1
Frequency (Hz) :
50
Generator Type: :
soundproof
Control Module Brand :
Comap,SmartGen, DeepSea
Soundproof Type- Dimension (L*W*H) (mm) :
4250*1500*2300
Package :
Plastic foam or plywood case
Fuel Tank Capacity(L) :
800
Brand Name :
Global Power
Model Number :
GP P364
Certification :
OEM / ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
2000 sets / year
Delivery Time :
25 days after receiveing the down-payment
Packaging Details :
plastic foam or plywood case packing
Description

364kw Open Three Phase Industrial Generator Set Silent With Stamford Alternator

Basic Specification:

1. Engine brand, Perkins.

2. Alternator brand, Marathon, Stanform, Engga...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12.50/60hz

13. Atomatic alarm system

14. Insulation, class H

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPP364 (three phase)

Prime Power (kw/kva)

364/455

Standby Power (kw/kva)

400/500

Rated Voltage (V)

400/230

Voltage Recovery Time

≤1S

Rated Current (A)

655

Rated Frequency (Hz)

50

Frequency Recovery Time

≤5S

Wave Distortion

≤5%, sine wave

Running Noise db(A)/7m(Silent type)

75

Battery capacity (V-Ah)

24V 100Ah

Open Type-Dimension (L*W*H) (mm)

3450*1150*1950

Open Type-Weight (kg)

3300

Soundproof Type- Dimension (L*W*H) (mm)

4250*1500*2300

Soundproof Type-Weight (kg)

7800

Fuel Tank Capacity(L)

800

Continuous Running Time(hr.)

8

Engine specifications:


1.Main features:

  1. Six-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance

2.Technical data

Model 2506C-E15TAG1

Engine brand

Perkins

Output Power (kw)

434

Cylinder No. & Config.

6, in-line

Combustion System

direct injection

Compression Ratio

16:1

Displacement (L)

15

Bore X Stroke (mm)

137*171

Engine Speed (r/min)

1500

Speed Governing

Electronic

Starting System

24V DC Electric

Filter System

Dry oil filter/Fuel filter/Oil filter

Cooling system

Water-cooled

Coolant capacity (L)

58

Fuel Consump. (g/kw·h)

216

Oil Capacity (L)

62

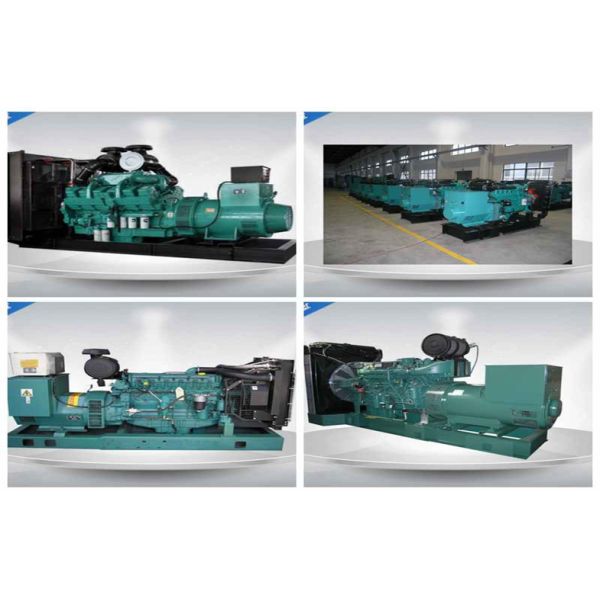

Product Picture:

364kw Open Three Phase Industrial Generator Set Silent With Stamford Alternator

Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door
