Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
Specifications
Prime Power :
800KW / 1000KVA
Standby Power :
880KW / 1100KVA
Engine Brand :
CUMMINS
Engine Model :
KTA38-G5
Alternator Brand :
STAMFORD
Alternator Model :
HCI634J
Dimension(L*W*H) :
4450*1850*2400 MM
Weight :
7100KG
Brand Name :
Global Power
Model Number :
GP C800
Certification :
OEM / ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 working days after received down-payment
Packaging Details :
Plastic foam or plywood case packing
Description

Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry


Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.


Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry

Genset Model GPC800

Standby Power

 kVA 1100
kw 880

Prime Power

 kVA 1000
kw 800
Frequency Hz 50
Voltage V 400/230
Rated speed rpm 1800
Fuel Consumption 100% Load L/Hr 211.6
Fuel Consumption 75% Load L/Hr

158.7
Fuel Consumption 50% Load L/Hr 105.8

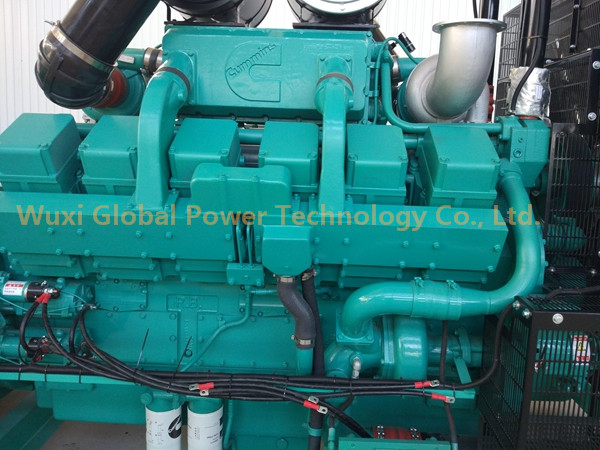

Cummins engine Model: KTA38-G5

Cummins Engine: KTA38-G5
Cylinder arrangement 12 in V
Displacement 38L
BorexStroke 159x159mm
Compression ratio 14.5:1
Rated RPM 1500
Max. standby power at rated RPM 880kW
Governor type Electronic
Exhaust temperature 600℃
Total coolant capacity 199L
Total oil capacity 135L

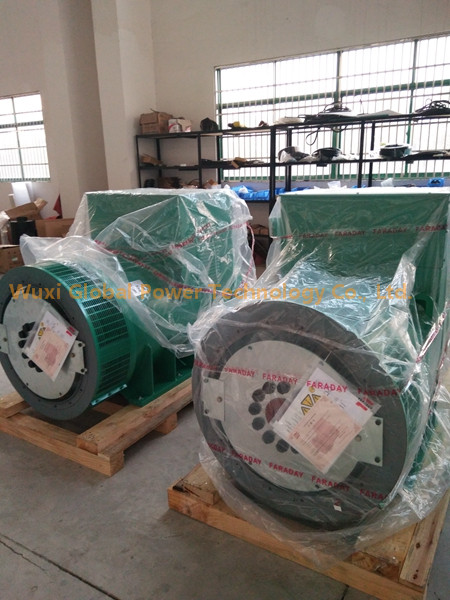

Stamford Alternator Model: HCI634J

Stamford Alternator: HCI634J
Number of phase 3
Connecting type 3 Phase 4 Wire, “Y” type connecting
Number of bearing 1
Protection grade IP23
Exciter type Brushless, self-exciting
Insulation class, Temperature rise H/H
Telephone Influence Factor (TIF) <50
THF <2%
Voltage Regulation, Steady state ≤±1%
Alternator capacity 824KW
Alternator efficiencies 93.5%


Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry

Generator Sets Standard and Optional Features

Engine:

  1. 4-stroke, water-cooled diesel engine
  2. Standard air filter
  3. Standard fuel filter
  4. Standard oil filter
  5. Oil temperature sensor
  6. Low coolant level sensor
  7. 24V electrical system
  8. Radiator with blowing fan
  9. Industrial silence
  10. Fuel water separator (optional)
  11. Water jacket heater (optional)

Alternator:

  1. Class H insulation
  2. IP23 Protection
  3. Automatic Voltage Regulator (AVR)
  4. PMG excitation
  5. Single bearing alternator
  6. Stamford alternator


Electrical system:

  1. DSE 7320 control module
  2. Maintenance-free and anti-explosion battery
  3. Standard breaker
  4. ABB breaker (optional)
  5. ATS (optional)
  6. Battery charger (optional)
  7. GMS monitoring (optioanl)

Packing:

  1. Engine manual
  2. Alternator manual
  3. Gensets operation and maintenance manual
  4. Tool kit

Baseframe:

  1. Forklift pockets
  2. Pulling slots
  3. Earth wire protection
  4. Built-in anti vibration mountings
  5. Fuel outlet value
  6. Standard 8 hours fuel tank
  7. Enlarged 24 hours fuel tank (optional)
  8. Separated fuel tank (optional)


Canopy:

  1. Weatherproof & sound-attenated canopy
  2. Sound-absorbing material
  3. Lifting lug
  4. Emergency stop button
  5. Inside silencer
  6. Trailer generator (optional)

Open Frame Type 800 KW Industrial Generator Set Powered by Cummins KTA38-G5 For Industry
