High Power 1500 KVA 1200 KW Industrial Diesel Generator With Cummins Engine Low Fuel Consumption

Model: GPC1200

Applications:

Global Power series products will be widely used for real estate, building, hotel, hospital, factory, railway, road, airport, sea port, bank, data center, telecom communication, mining plant, power plant, national grid, engineering etc.

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.

Engine specifications

Technical data

Model KTA50-GS8

Engine brand: Cummins

Output Power (kw): 1287

Cylinder No. & Config.: 16,in “V”

Combustion System: direct injection

Compression Ratio: 14.9:1

Displacement (L): 50.1

Bore X Stroke (mm): 159*159

Engine Speed (r/min): 1500

Speed Governing: Electronic

Starting System: 24V DC Electric

Filter System: Dry oil filter/Fuel filter/Oil filter

Cooling system: Water-cooled

Coolant capacity (L): 194

Fuel Consump. (g/kw·h): 204

Oil Capacity (L): 204

Engine

Main Features:

1. Twelve-cylinder, water-cooled, in “V” diesel engine

2. Efficient fuel system for max power output and durability

3. Large-capacity air cleaner

4. Cost effective, fuel efficient and reliable performance

5. Functional engine with compact structure

6. Excellent after-sales service and sufficient spare parts supplying

7. Easy installation and ready access for routine maintenance

Alternator Specifications

Technical data

Model HCI634H

Alternator brand: Stamford

Rated Power (kw): 1240

Excitation System: Brushless, self-exciting

Voltage Regulation Mode: AVR

Connection Type: 3phase,4wires,”Y” connection

Pole No.: 4

Rotation Speed (r/min): 1500

Temperature Rise (℃): 125

Insulation class: H

Voltage Regulation (0 load): ≥95%～105%

Voltage accuracy: ≤±1%

Protection Grade: IP23

Telephone Influence Factor: TIF＜50

Harmonic Coefficient: THF＜2%

Alternator

Main features:

1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions

2. 2/3 pitch winding as standard, to avoid excessive neutral currents

3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings

4. Easy access for installation and maintenance

5. IP23 as standard

6. Self-excited control system

7. Resist of corruption of oil and acid

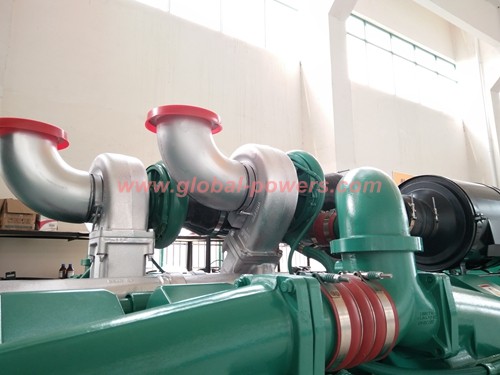

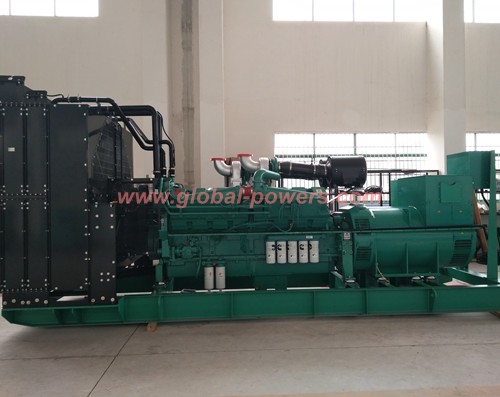

Product Display

Product Quality Commitment

1. All products are new products, and meet the present national standard, international standard as well as the industrial standards

2. All products are manufactured according to the ISO9001 Quality Management System strictly.

3. All products are commissioned and tested strictly according to present standard.

4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

5. All spare parts are original ones.
