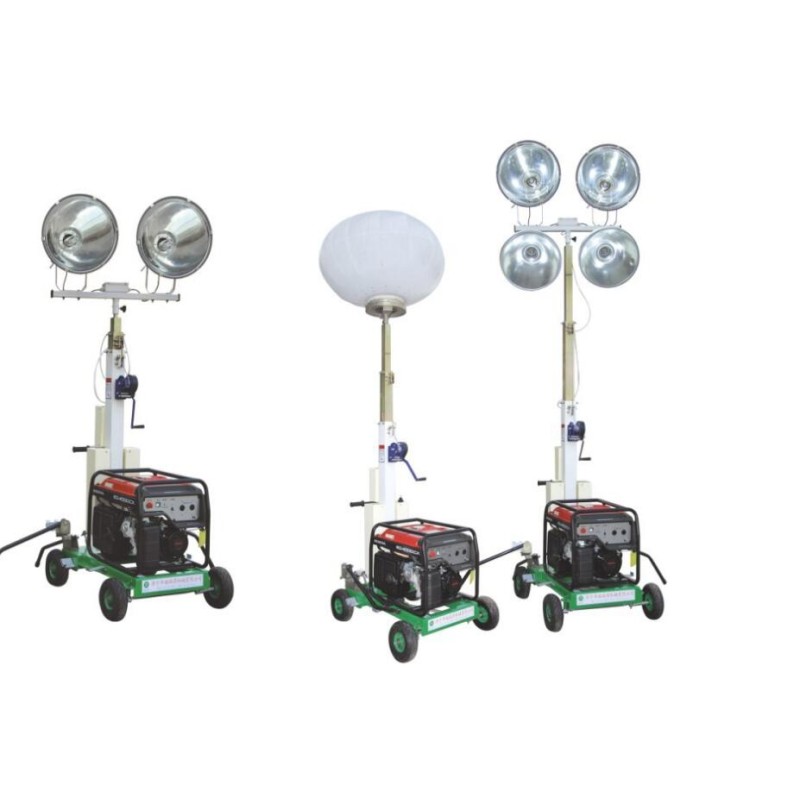

5 Kw / Kva Industrial Light Tower Mobile Led 50Hz 60Hz With Metal Halide Lamp
5 Kw / Kva Industrial Light Tower Mobile Led 50Hz 60Hz With Metal Halide Lamp
Specifications
Brand Name :
Global Power
Model Number :
GP
Certification :
ISO/CQC
Place of Origin :
Jiangsu, China
MOQ :
3sets
Price :
Negociable
Supply Ability :
2000sets /year
Delivery Time :
20 days
Packaging Details :
Plastic Foam or Plywood Pallet
Power of lamp :
4x1000W Metal Halide
Alternator :
brushless
Excitation Mode :
AC Rotating Exciter
Usage :
Common Units / Emergency Power
Cooling Method :
Water Cooling
Output :
AC Single / Three Phase
Mast Operated System :
Manual
Rated Voltage :
120V / 240V
Color :
Customized
Description

5 Kw / Kva Industrial Led Lighting Tower 50Hz / 60Hz With Metal Halide Lamp

Features:

  • Four 100W lamps provide Maximum illumination.Telescopic ,Mechanical,2 stages mast up to 4.8 meters.
  • Mast with self-locking makes work safer.
  • Installed with silent diesel generator ,the light tower works with convenient power supply.
  • Quiet dependable diesel engine provides flicker-free operation.
  • Manual which for raising and lowing mast
  • Applicable for the situation that the illumination needs to be changed at any time,expecialy.
  • Desaster relief,large assembles,engineering repair wharf and air port.

Lamp pole maximum height(m)

7m

Engine Model

186FAG3E

Engine Type

diesel, single cylinder,4 strock,Air-cooled upright type

Engine speed (RPM)

3600

Generator prime power (KVA)

5KW

Frequency

60HZ

Voltage

120/240V

Insulation Class

F

Lamps model

E40

Lamps type

Metal halide lamp

Total power of lamps

4*400W

Fuel tank type

top fuel tank

Fuel tank capacity (L)

33.5L

Continuous operating (h)

50H(4*400W)

Luminous Flux (lm)

4*110000lm

Lamp pole type

Manual

lnclination

<10º

windproof Ability

<6

Size(L*W*H)mm

2380*1260*7000

Packing size(L*W*H)mm

2340*1120*1100

Application:

For municipal, highway bridge, port, mine, construction sector construction and other field work at night lighting. And also can be used for night repair, disaster scene lighting

5 Kw / Kva Industrial Light Tower Mobile Led 50Hz 60Hz With Metal Halide Lamp

Specification

Mast & Lamp Max. extension of mast 4.8m 9m 9m
Stages 2 3 3
Total power of lamps 4*400W 4*1000W 4*1000W
Light capacity 4*250000 lumen 4*110000lumen 4*110000lumen
Lifetime of lamp 2000 hours 5000 hours 5000 hours
Generator Model END6500I EN-10k END-20C
Rated Power 50Hz 4.2kw 50Hz 6.0kw 50Hz 20kw
60Hz 5.0kw 60Hz 8.0kw 60Hz 23kw
Standby Power 50Hz 4.5kw 50Hz 7.0kw 50Hz 22kw
60Hz 5.5kw 60Hz 9.0kw 60Hz 25kw
Engine model RP186FA Kubota D1105-BG with perkins engine 1003G
Fuel tank capacity 16L 100L 120L
Prime fuel consumption ≤1.65L/h ≤2.0L/h ≤5.25L/h
Trailer Stabilizer Support 4*manual 5*manual 5*manual
Tire Size Diameter=25cm Diameter=25cm Diameter=25cm
Anti-wind capacity ≤6 ≤10 ≤10
Dimension Dimension(mm) 1300*840*2600 4400*1200*1930 4400*1450*2100
Net Weight 350kg 870kg 1950kg

Benefits of GLOBAL POWER mobile lighting towers:
1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.

GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection
