250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
Specifications
Prime Power :
250 KW / 313 KVA
Stanby Power :
275 KW / 344 KVA
Rated Frequency :
50 HZ
Battery Capacity :
12V 100 AH
Open Type-Dimension (L*W*H) (mm) :
3000*1150*1800
Open Type-Weight (kg) :
2550
Fuel Consumption :
188 g/kw.h
Noise Level(A) 7 m :
≤115 db (Open type), ≤75 db (Silent type)
Brand Name :
Global Power
Model Number :
GPK250
Certification :
OEM/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
30 Working Days after Received Down-payment

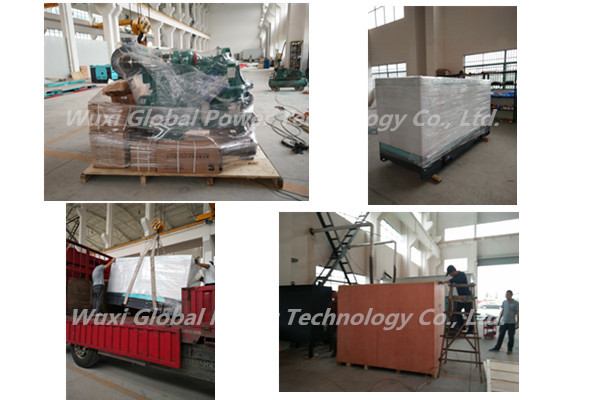

Packaging Details :
Plastic Foam or Plywood Case Packing
Description

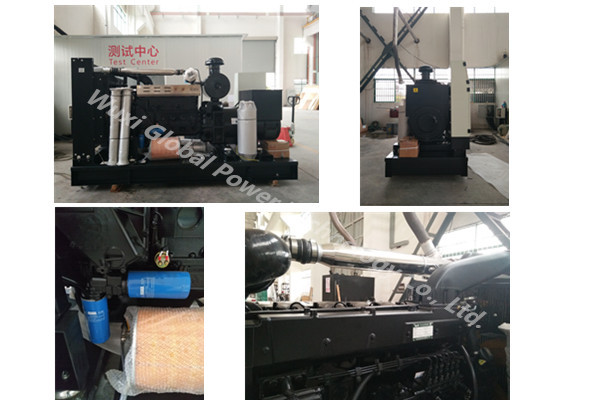

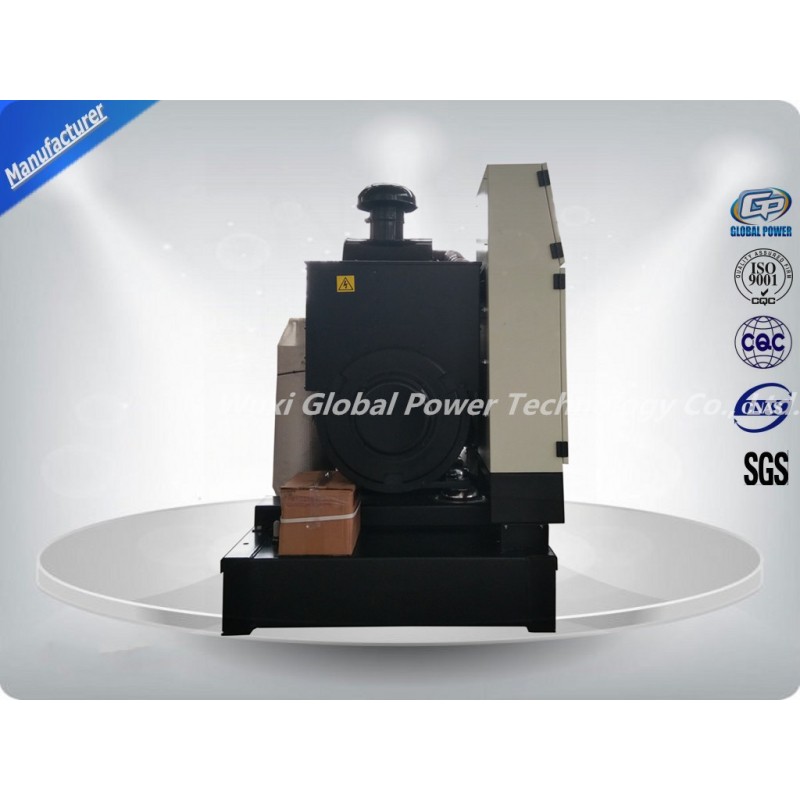

Generator Supplier of 250 KW Global Power Emergency Industrial Generator Set 50 HZ 400V 3 P

The power ranges of KOFO series from 10Kw to 360Kw. Features of low fuel consumption, low emission, low noise; high precision voltage regulation, good dynamic performance, compact structure, long service life; start quickly, and it can soon reach full power.

250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission

Genset Model GPK250
Prime Output (KW / KVA) 250 KW / 313 KVA
Standby Output (KW / KVA) 275 KW / 344 KVA
Voltage, Phase and Wire 400 V / 3 Phase / 4 Wires
Maximum Output Current 451 AMP
Engine Brand and Model KOFO WT 12D-308E
Alternator Brand and Model WATTEK WHI4DC
Engine Speed RPM 1500
Frequency 50 HZ

Ratings at 0.8 power factor

ENGINE SPECIFICATION

Engine Model KOFO WT 12D-308E
Engine Type Water-cooled, 6 cylinders in line, direct injection
Maximum Output 288 KW
Aspiration Turbocharged
Bore x Stroke 125*147 mm
Displacement 14 L
Compression Ration 16:1
Fuel Consumption 188 g/kw.h
Lube-oil Pan Capacity 16.4 L
Cooling Water Capacity 24 L
Voltage for Start 24 V
Instrument for Adjusting Speed Electronic
Noise Level (A) 7 m ≤115 db (Open type), ≤75 db (Silent type)

ALTERNATOR SPECIFICATION

Alternator Model WATTEK WHI4DC
Excitation Brushless, self-excited
Insulation Class H
Project Class IP23
Connection Type Re-connectable
Voltage Regulation ≥95%～105%
Waveform ≤5%, sine wave
Distortion THF / TIF THF<50, TIF<2%

250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission

Fuel System

  • Fuel filter with integral water separator

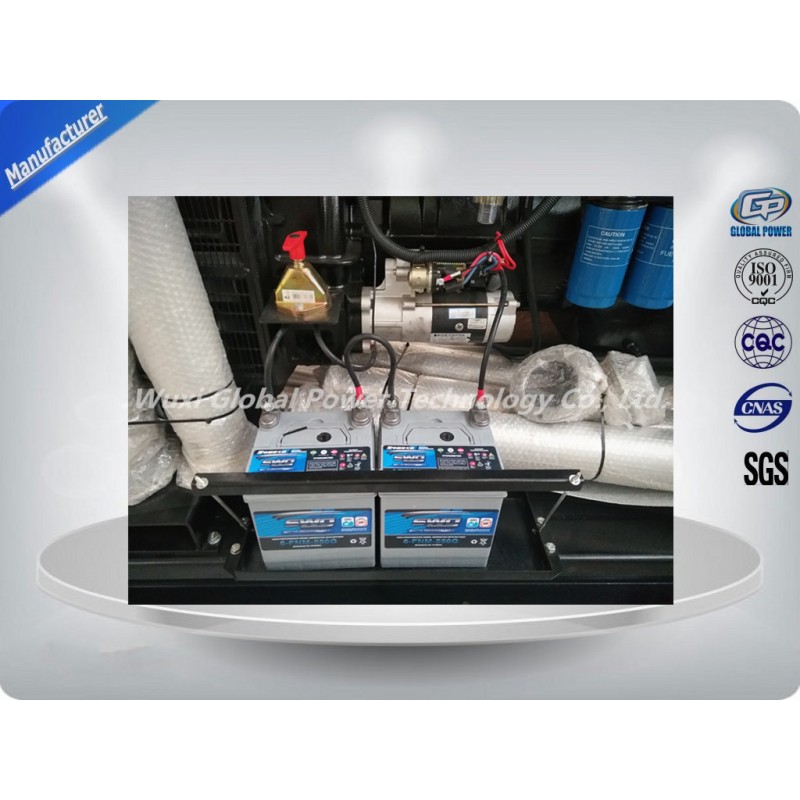

Starting / Charging System

  • 24V starting motor(s)
  • Batteries with rack and cables
  • Battery charger

Cooling System

  • 40℃ radiator with guard size

DIMENSIONS AND WEIGHT

Genset Type Length Width Height Weight
Open Type 3000mm 1150mm 1800mm 2550kg

250KW 50HZ 400V 3P 4 Wires Industrial Generator Set With Low Emission
