12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black
12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black
12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black
12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black
12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black
12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black
Specifications
Place of Origin :
Made in China
Brand Name :
GoreLink
Certification :
ISO,RoHS,REACH
MOQ :
1000m
Packaging Details :
Wooden Drum/Spool+Carton
Delivery Time :
As per the order quantity
Payment Terms :
T/T,Paypal,Western Union,
Model Number :
GL-FDC-
Features :
Suitable for FTTH/FTTP Deployment
Application :
Indoor
Product Name :
Flat Drop Cable
Part Number :
GL-FDC-312
Fiber Type :
Multimode OM3
Fiber Count :
12 Fiber
Jacket Material :
LSZH
Color :
Black
Description

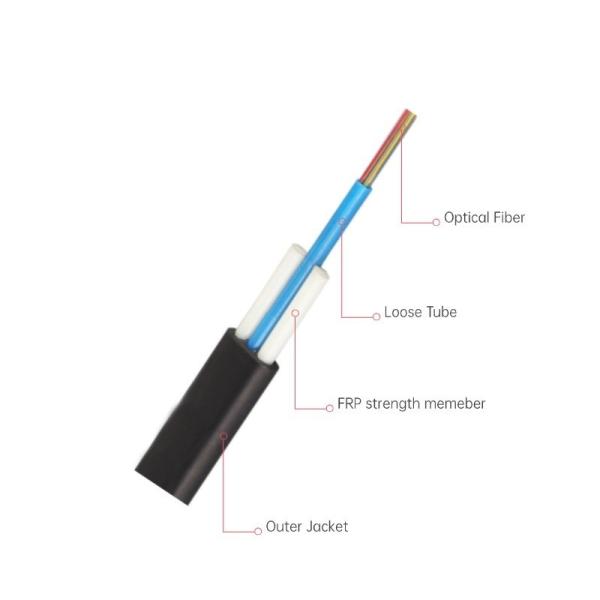

Gorelink Fiber Flat drop cable, also known as optical drop cable, is a crucial component in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) deployments. It is designed to connect the distribution point or optical network terminal (ONT) to individual residences or businesses. This bow-type drop cable features a novel groove design, allowing for easy stripping and splicing, for simplified installation and maintenance. Its Non-metallic strength members, FRP provide tensile strength without the risk of electrical interference.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Multimode OM3

Fiber Count

12 Core

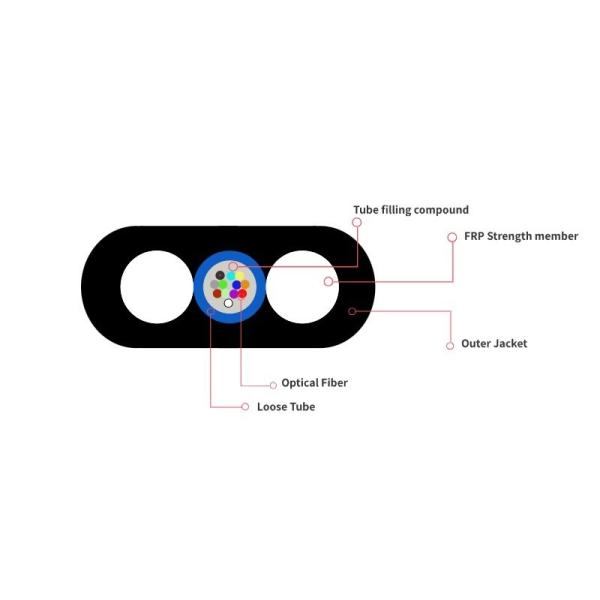

Cable structure

Flat type

Strength Member

2xFRP

Cable Diameter

6.5*8.5mm

Cable Jacket

LSZH

Cable Color

Black

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

850nm≤3.0dB

1300nm ≤1.0dB

Core diameter(um)

50±2.5

Cladding diameter(um)

125±1.0

Wavelength

850nm / 1300nm

Operating Temperature

-20~75℃

Storage Temperature

-40~80℃

12 Fiber Indoor Flat Drop Cable Multimode OM3 50/125um LSZH Black

Download Datasheet

Indoor Fiber Optic Flat Drop Cable Multimode OM3- FDC Series

Ordering Information

PART NO.

DESCRIPTION

GL-FDC-301

Flat Type Indoor Fiber Drop Cable, OM3 50/125,1 Fiber, LSZH,Black

GL-FDC-302

Flat Type Indoor Fiber Drop Cable, OM3 50/125,2 Fiber, LSZH,Black

GL-FDC-306

Flat Type Indoor Fiber Drop Cable, OM3 50/125,6 Fiber, LSZH,Black

GL-FDC-312

Flat Type Indoor Fiber Drop Cable, OM3 50/125,12 Fiber, LSZH,Black

* Customized
