12 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE
12 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE
12 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE
12 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE
Specifications
Brand Name :
GoreLink
Model Number :
GL-ADSS/D10-812
Certification :
ISO,RoHS,REACH
Place of Origin :
Made in China
MOQ :
1000m
Payment Terms :
T/T,Paypal,Western Union,
Delivery Time :
As per the order quantity
Packaging Details :
Wooden Drum/Spool+Carton
Features :
Light weight & Reduced-Diameter
Application :
Outdoor Aerial Cable
Suitable for :
Duct, Aerial laying
Part No. :
GL-ADSS/D10-812
Fiber Mode :
Singlemode 9/125um
Fiber Count :
12 core
Max. Capacity :
Up to 96 cores
Design :
Central loose tube design
Armor :
No
Inner Jacket :
PE
Strength memeber :
Aramid yarn
Outer Jacket :
PE
Span :
100m
Description

Gorelink ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. This comprehensive introduction will cover the definition, structure, advantages, and applications of ADSS cables.

It is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode G652D

Fiber Count

12 Core

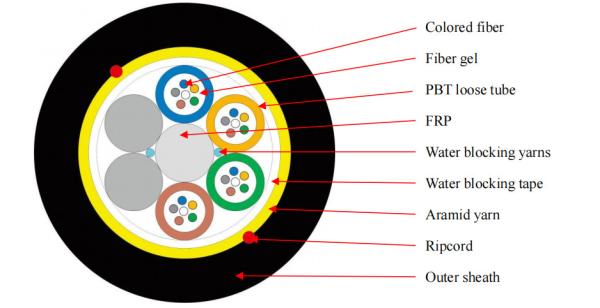

Cable structure

Double inner jacket with Stranded Loose tube

Cable Armor

Non-metallic

Strength Member

Aramid yarn+FRP

Inner Jacket

PE

Outer Jacket

PE

Cable Color

Black

Span

100m

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤0.35 dB @1310nm

Core diameter(um)

9±2.5

Cladding diameter(um)

125±1.0

Wavelength

1310nm / 1550nm

12 core ADSS Fiber Optic Cable Singlemode OS2 Double Jacket Span 100m PE

Check the ordering information to find what you are looking for.

Please Contact Us freely if you need any help.

Download Datasheet

Outdoor ADSS Fiber Optic Cable- Singlemode-Double jacket

Ordering Information

PART NO.

DESCRIPTION

GL-ADSS/D10-812

Outdoor ADSS Fiber Optic Cable,12 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m

GL-ADSS/D10-824

Outdoor ADSS Fiber Optic Cable,24 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m

GL-ADSS/D10-848

Outdoor ADSS Fiber Optic Cable,48 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m

GL-ADSS/D10-896

Outdoor ADSS Fiber Optic Cable,96 Fiber, Singlemode G652D,PE,Black,Double jacket, Span 100m

* Customized

If you need any further assistance, please feel free to contact us at sales@gorelink.com
