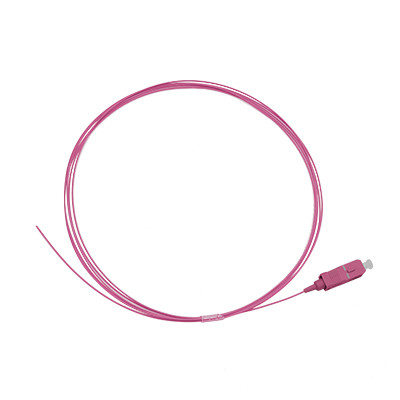

SC UPC Multimode OM4 Fiber Optic Pigtail LSZH 1m
SC UPC Multimode OM4 Fiber Optic Pigtail LSZH 1m
SC UPC Multimode OM4 Fiber Optic Pigtail LSZH 1m
SC UPC Multimode OM4 Fiber Optic Pigtail LSZH 1m
SC UPC Multimode OM4 Fiber Optic Pigtail LSZH 1m
SC UPC Multimode OM4 Fiber Optic Pigtail LSZH 1m
Specifications
Polish :
UPC
Insertion Loss :
≤0.30 dB
Part Number :
G314-131-1
Application :
FTTH FTTB FTTX Network
Model Number :
G314-131-1
Diameter :
0.9mm
Color :
Magenta
OEM :
Yes
Fiber Type :
Multimode OM4
Wavelength :
850nm,1300nm
Jacket :
LSZH
Length :
1m
Operating temperature :
-20~70 ℃
Connector :
SC
Brand Name :
GoreLink
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
T/T,Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
1pc/Polybag
Product :
Fiber Optic Pigtail
Return Loss :
≥30 dB
Description
What is Fiber Optic Pigtail Used For?
A fiber optic pigtail is a type of fiber optic cable with only one end that has a factory-terminated connector and the other end exposed as bare fiber. A fiber optic pigtail is typically used for field termination with a mechanical or fusion splicer. There are SC/LC/ST/FC/E2000 etc available in singlemode and multimode.

Fiber Optic Pigtail, SC/UPC Multimode OM4 50/125, LSZH, 1m

Gorelink Fiber Optic Pigtail is a tight buffered fiber cable with a connector pre-terminated on one end and exposed fiber on the other.Multimode OM4 Fiber Optic Pigtails is ideal for fusion splicing to support high-speed network connections.This Fiber Optic Pigtails provide the optical performance, sturdiness, and repeatability required for modern network applications by combining quality zirconia ferrules with tough compatible hardware.

They are quality tested to ensure they meet or exceed industry standards while adhering to only the most stringent performance specifications.

It provides a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Application

  • Commonly used in fiber optic patch panels, distribution frames, and for connecting fiber optic networks where splicing is required.

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Multimode OM4 50/125

Fiber Count

Simplex

Strength Member

Aramid Yarn

Cable Diameter

0.9mm

Cable Color

Magenta
Connector SC

Polishing Way

UPC

Connector Color Magenta

Cable length

As per the order request

OPTICAL PERFORMANCE

Parameter

Multimode OM4 50/125um

Insertion Loss(IL)

≤0.3 dB

Return Loss(RL)

≥30dB

SC UPC Multimode OM4 Fiber Optic Pigtail LSZH 1m


Ordering Information

PART NO.

DESCRIPTION

G314-131-1

SC/UPC Multimode OM4 50/125um Simplex 0.9mm LSZH jacket, Magenta,1m

G314-131-2

SC/UPC Multimode OM4 50/125um Simplex 0.9mm LSZH jacket, Magenta,2m

G314-131-3

SC/UPC Multimode OM4 50/125um Simplex 0.9mm LSZH jacket, Magenta,3m

* Customized
