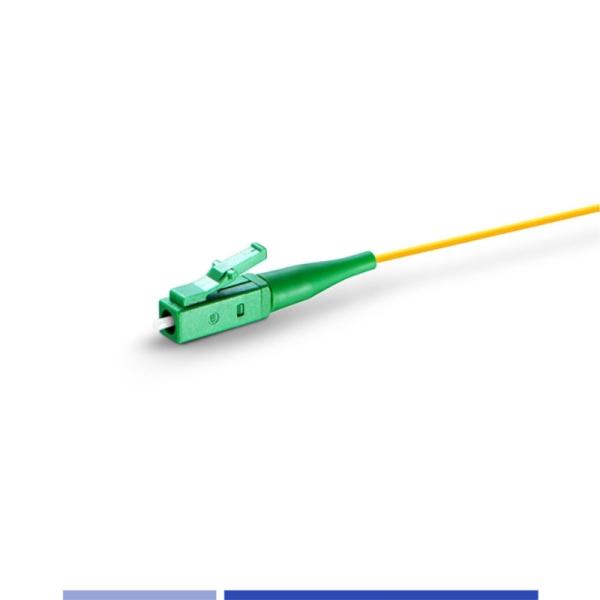

LC APC Single Mode OS2 Fiber Optic Pigtail 9/125um LSZH 1m
LC APC Single Mode OS2 Fiber Optic Pigtail 9/125um LSZH 1m
LC APC Single Mode OS2 Fiber Optic Pigtail 9/125um LSZH 1m
LC APC Single Mode OS2 Fiber Optic Pigtail 9/125um LSZH 1m
Specifications
Polish :
APC
Insertion Loss :
≤0.30 dB
Part Number :
G318-121-1
Application :
FTTH FTTB FTTX Network
Diameter :
0.9mm±0.05mm
Color :
Yellow
OEM :
Yes
Fiber Type :
Single mode G652D
Wavelength :
1310nm,1550nm
Jacket :
LSZH
Length :
1m
Product :
LC/APC Singlemode Fiber Optic Pigtail
Operating temperature :
-20~70℃
Connector :
LC
Brand Name :
GoreLink
Model Number :
G318-121-1
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
T/T,Western Union,Paypal
Delivery Time :
1-3 Working days
Packaging Details :
1pc/Polybag
Return Loss :
≥60 dB
Description
What is Fiber Optic Pigtail Used For?
A fiber optic pigtail is a type of fiber optic cable with only one end that has a factory-terminated connector and the other end exposed as bare fiber. A fiber optic pigtail is typically used for field termination with a mechanical or fusion splicer. It provides a fast way to make communication devices in the field. There are SC/LC/ST/FC/E2000 etc available in singlemode and multimode.

Fiber Optic Pigtail, LC/APC Singlemode 9/125, LSZH, 1m

Gorelink Fiber Optic Pigtail is a tight buffered fiber cable with a connector pre-terminated on one end and exposed fiber on the other. They are designed, manufactured, and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications. Factory-installed connectors offer consistent quality and performance.

This Singlemode Fiber Optic pigtail is ideal for fusion splicing to support high-speed network connections.These Fiber Optic Pigtails provide the optical performance, sturdiness, and repeatability required for modern network applications by combining quality zirconia ferrules with tough compatible hardware.

Application

  • Commonly used in fiber optic patch panels, distribution frames, and for connecting fiber optic networks where splicing is required.

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode 9/125

Fiber Count

Simplex

Strength Member

Aramid Yarn

Cable Diameter

0.9mm

Cable Color

Yellow
Connector LC

Polishing Way

APC

Connector Color Green

Cable length

As per the order request

OPTICAL PERFORMANCE

Parameter

Singlemode 9/125um

Insertion Loss(IL)

≤0.3 dB

Return Loss(RL)

≥60dB

LC APC Single Mode OS2 Fiber Optic Pigtail 9/125um LSZH 1m


Ordering Information

PART NO.

DESCRIPTION

G318-121-1

LC/APC Singlemode 9/125um Simplex 0.9mm LSZH jacket, Yellow,1m

G318-121-2

LC/APC Singlemode 9/125um Simplex 0.9mm LSZH jacket, Yellow,2m

G318-121-3

LC/APC Singlemode 9/125um Simplex 0.9mm LSZH jacket, Yellow,3m

* Customized
