12 Fiber Armoured Fibre Optic Cable Singlemode G652D LSZH Jacket For Indoor Outdoor
12 Fiber Armoured Fibre Optic Cable Singlemode G652D LSZH Jacket For Indoor Outdoor
Specifications
Brand Name :
GoreLink
Model Number :
G1L8-306
Certification :
ISO,RoHS,REACH
Place of Origin :
Made in China
MOQ :
1000m
Payment Terms :
T/T,Paypal,Western Union
Delivery Time :
As per the order quantity
Packaging Details :
Wooden Drum/Spool+Carton
Product Name :
Indoor/Outdoor Armored Fiber Optic Cable
Fiber Count :
12 Fiber
Mode :
Singlemode G652D
Type :
OS2, OFNR
Color :
Black
Part Number :
G1L8-312
Description

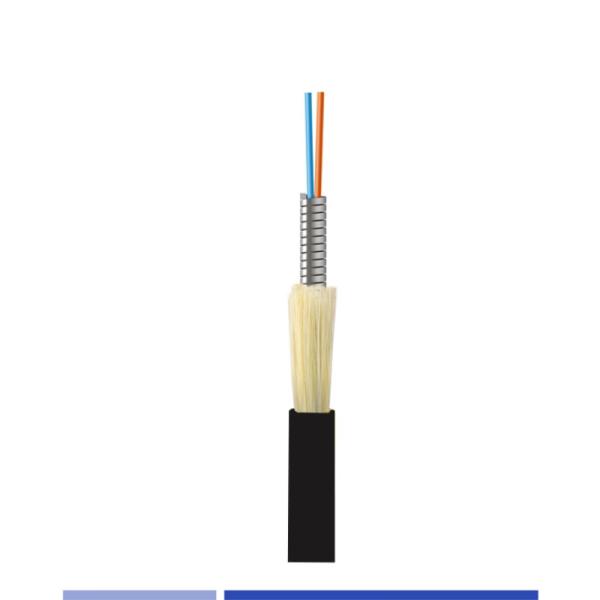

Armored fiber optic cable are designed for being used indoor/outdoor environments, in which the traditional standard fiber optic patch lead can not perform structurally to the requirement. Its structure contains stainless steel armor inside the jacket, which will help make it resistant of high tension and pressure. The stainless steel tube prevents optic fiber from damage that improves stability of the system. It contains 6 tight-buffered fiber bundled under the same jacket with spiral steel tube as strength members to stiffen the cable and prevent kinking.Its durable design allows it to withstand installations and operations..

It is widely used for data centers or Central Office applications point to point connections. The strands are color coded for easy identification and installation.

Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification

Fiber Mode

Singlemode 9/125um OS2

Cable structure 0.9mm Tight-buffered

Fiber Count

6 Core

Strength Member

Spiral Stainless steel tube + Aramid Yarn

Cable Diameter

7.0mm

Cable Color

Black

Cable Jacket

Riser OFNR

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

≤0.35 dB @1310nm

Core diameter(um)

9±2.5

Cladding diameter(um)

125±1.0

Wavelength 1310nm / 1550nm

Ordering Information

PART NO.DESCRIPTION
G1L8-312Indoor/Outdoor Armored Fiber Distribution Cable,12 Fiber,Singlemode OS2,OFNR,Black
* Customized
