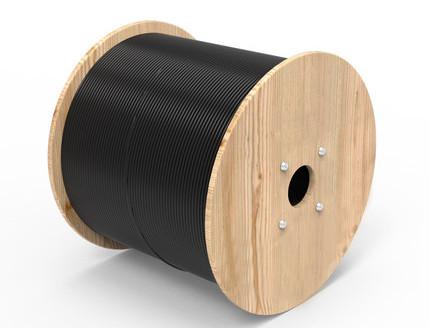

OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable
OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable
OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable
OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable
Specifications
Brand Name :
GoreLink
Model Number :
GL-IO-324L
Certification :
ISO,RoHS,REACH
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Delivery Time :
As per the order quantity
Packaging Details :
Wooden Drum/Spool+Carton
Product Name :
Indoor/Outdoor Fiber Optic Cable
Applications :
Indoor/Outdoor application
Features :
Light weight & Reduced-Diameter
Part Number :
GL-IO-324L
Fiber Type :
Multimode OM3
Fiber Count :
24 Fiber
Cable Design :
Central Loose Tube
Jacket Material :
LSZH
Color :
Black
OD :
6.0mm±0.5mm
Operating Temperature :
-20℃ to 75℃
Description
What is Indoor outdoor fiber optic cable? Indoor/outdoor fiber optic cable is designed for installations where the cable needs to pass through both indoor and outdoor environments. This Indoor/outdoor Fiber Optic Cable offers a reliable, efficient, cost-effective solution for modern communication infrastructure needs. Their ability to seamlessly transition between indoor and outdoor environments makes them a versatile choice for various applications, from commercial buildings and data centers to industrial complexes and telecom networks. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter. Its durable design allows it to withstand installations and operations.

Indoor/Outdoor Fiber Optic Cable Application

  • FTTH access network

  • Telecommunication Networks

  • CCTV Networks

  • Data Center

  • Local Area Networks

General Specification of Indoor/Outdoor Fiber Optic Cable

Fiber Mode

Multimode OM3

Fiber Count

24 Core

Cable structure

Central loose tube

Strength Member

Glass Yarn

Cable Diameter

6.0mm±0.5mm

Cable Jacket

LSZH

Cable Color

Black

Cable length

As per the order request

OPTICAL PERFORMANCE

Attenuation(dB/km)

850nm≤3.0dB 1300nm ≤1.0dB

Core diameter(um)

50/125um

Cladding diameter(um)

125

Wavelength

850nm / 1300nm

Operating Temperature

-20~75℃

Storage Temperature

-40~80℃

OM3 Indoor/Outdoor Fiber Optic Cable 24 Fiber LSZH Jacket Optic Cable

Ordering Information

PART NO.

DESCRIPTION

GL-IO-302L

Indoor/Outdoor Fiber Optic Cable, 2 Fiber, MM OM3,LSZH,Black

GL-IO-304L

Indoor/Outdoor Fiber Optic Cable, 4 Fiber, MM OM3,LSZH,Black

GL-IO-306L

Indoor/Outdoor Fiber Optic Cable, 6 Fiber, MM OM3,LSZH,Black

GL-IO-308L

Indoor/Outdoor Fiber Optic Cable, 8 Fiber, MM OM3,LSZH,Black

GL-IO-312L

Indoor/Outdoor Fiber Optic Cable, 12 Fiber,MM OM3,LSZH,Black

GL-IO-324L

Indoor/Outdoor Fiber Optic Cable, 24 Fiber,MM OM3,LSZH,Black

* Customized
