High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration
Specifications
Brand Name :
GOORUI VACUUM PUMP
Model Number :
GHBH 004 34 2R5
Certification :
CE/TUV/ISO9001-2001/SGS/ROHS
Place of Origin :
MADE IN CHINA
MOQ :
1
Price :
$390.00/set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000 set/day
Delivery Time :
3-15 work days
Packaging Details :
1. Packed in individual cartons.
Model No :
GHBH 004 34 2R5
Phase :
3
Stage :
double
Frequency :
50/60HZ
Output :
3.0/3.45kw
Voltage :
200-240△345-415Y&220-275△380-480Y
Current :
12.5△/7.3Y&9.5△/5.5Y
Max Airflow :
230/275m3/h
Max Vacuum :
390/410mbar
Max Pressure :
440/480mbar
Gloss Weight :
43kgs
Speed of rotation :
2850/3450r/min
Sound :
72/74db
Level of protection :
IP54
Description

High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration

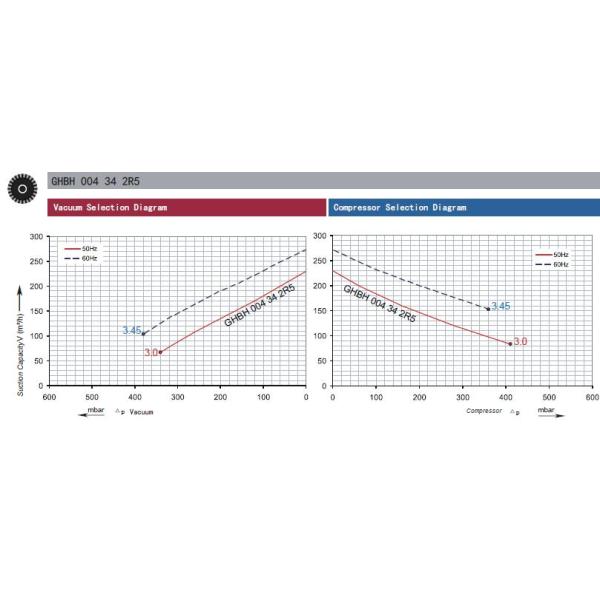

GHBH 004 34 2R5 Blower performace curve and data

High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration

Goorui Model Single Frequency Rated Voltage Rated Max Rated Rated Sound Weight
Double Output Current Airflow Vacuum Pressure
Stage Hz KW V A m3/h mbar mbar dB(A) Kg
GHBH 004 34 2R5 Double 50 3 200-240△345-415Y 12.5△/7.2Y 230 -340 410 72 39
60 3.45 220-275△380-480Y 12.5△/7.3Y 275 -380 360

74

High Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration

Goorui Bower feathers and advantages :

  • Oil free and low noise

  • No routine maintenance with stable performance

  • Easy install and no vibration

  • SKF , NSK , ORS bearing adapt to ensure long-life time

  • Either used for suction ( vacuum ) or discharge ( pressure )

  • Insulation class: F, Protection class: IP54

  • Wide voltage & frequency range 28-60hz

  • Energy-saving operation through higher efficiency

  • Variable output control Regenerative Blower

  • Pulsation-free compression

  • Virtually maintenance-free Regenerative Blower

  • ADC12 aluminum alloy, Processed on precision CNC machine

  • Designed and improved by latest technology and molded with high strength material

High Pressure 3 Phase Two Stage Air Blower For Aquaculture AerationHigh Pressure 3 Phase Two Stage Air Blower For Aquaculture Aeration

Based on clients' requirements,Goorui design the special models suce as Anti-Corrosion blower,Anti-Explosion blower,dusk-free blower,Water-Cooling blower etc....to help solve clients' problem.

Goorui not merely providing a high pressure blower but also the whole solution to solve the vacuum problems.
