1.5 Kw Water Treatment Side Channel Blower Ring Air Blower With CE Certification
1.5 Kw Water Treatment Side Channel Blower Ring Air Blower With CE Certification
1.5 Kw Water Treatment Side Channel Blower Ring Air Blower With CE Certification
1.5 Kw Water Treatment Side Channel Blower Ring Air Blower With CE Certification
Specifications
Brand Name :
GOORUI
Model Number :
GHBH 002 12 2R4
Certification :
CCC, CE, SGS, TUV, RoHs, ISO9001-2008 certification approved
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 sets /month
Packaging Details :
Fixed by plywood, then packaged by carton.
POWER :
1.5 / 1.75 KW
MAX air flow :
150m3/h / 180m3/h
MAX pressure :
290mbar / 280 mbar
MAX vacuum :
-280m3/h /-250m3/h
Frequency :
50HZ / 60HZ
Voltage :
220-240V /220-275V
Description

Product description:

2HP GHBH 002 12 2R4 Power 1.5kw two stage high pressure side channel blower

Model NO. GHBH 0D2 12 2R4
Phase single
Stage double
Frequecy 50HZ 60HZ
Output 1.5KW 1.75KW
Voltage 200-240 220-275
Current 9 10
Max Airflow 150m3/h 180m3/h
Max Vacuum -280mbar -250mbar
Max Pressure 290mbar 280mbar
Gross Weight

25kgs

 25kgs
Speed of rotation 2850r/min 3450r/min
Sound 66db(A) 69db(A)
Level of protection IP54 IP54
Insulation class F F

Goorui Ring Bower feathers and advantages :

  1. Oil free and low noise
  2. No routine maintenance with stable performance
  3. Easy install and no vibration
  4. Either used for suction ( vacuum ) or discharge ( pressure )
  5. Insulation class: F, Protection class: IP54/IP55
  6. Air flow range: 45 - 2480 m3/h (50/60 Hz)
  7. Pressure range: 80mbar to 1040 mbar
  8. Vacuum range: -70mbar to -840 mbar
  9. Insulation class: F/H
  10. CCC, CE, RoHs, SGS, ISO9001-2008 certification

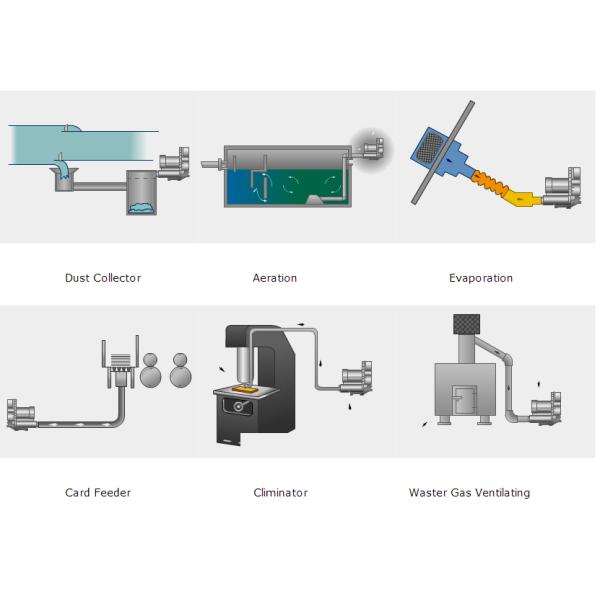

2HP High Pressure Air Blower Application:

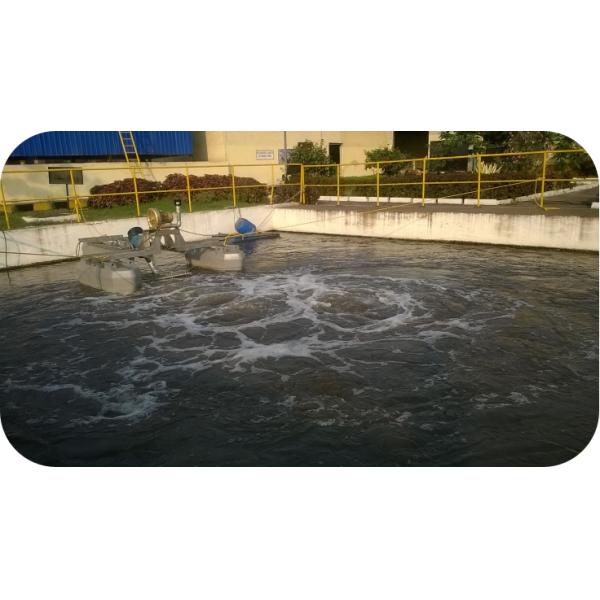

  • Agriculture(Fish pond and aeration tanks)
  • Beverage(bottle drying)
  • Bio fuels/bio-gas system
  • Food and vegetable processing
  • Medical and Health service(Dental cart and dental vacuum)
  • Package (Air knives blown-off / Labeling/Drying)
  • Plastics/Rubber(Air knives blown-off/ Bottle blow moulding/ Extruder Degassing/Pneumatic conveying/ Thermoforming)
  • Paper and pulp/ paper converting
  • Textile industry
  • Transportation/Loading/Unloading(Pneumatic conveying/material handling)

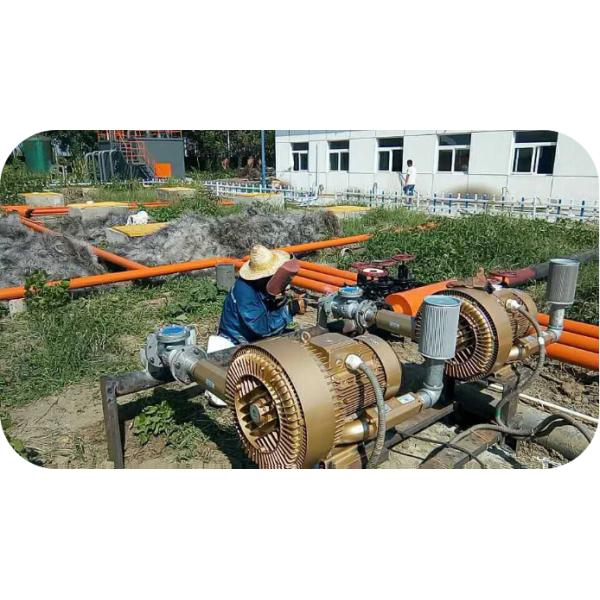

  • Water treatment/sewage treatment
  • Woodworking(CNC Routing/bulk handling
