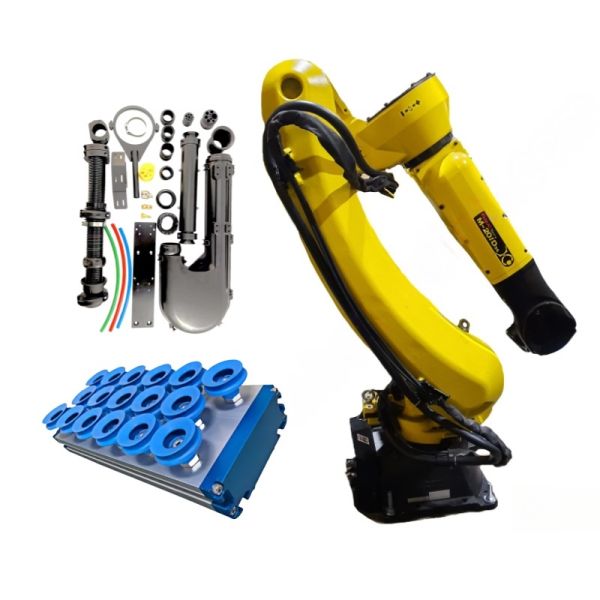

Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Fanuc M-20iD/35 Payload 35kg IP67 Medium Material Handling Robots and Vacuum Suction Cup Robot Gripper
Specifications
Brand Name :
FANUC
Model Number :
M-20iD/35
MOQ :
1
Price :
US $35000.00 - 40000.00/ Set
Payment Terms :
T/T
Supply Ability :
100 sets per year
Delivery Time :
90 days
Packaging Details :
Wooden crate
Power :
1 kW
Repeatability :
±0.03 mm
Weight :
250 kg
Reach :
1831 mm
Protection :
IP54/IP65/67
Controlled axes :
6
Description
Fanuc M-20iD/35

The robot you see in every second automotive parts factory and palletizing line

Why the M-20iD/35 Became the Default Mid-Size Robot

25 kg is usually not enough, 50 kg is overkill and expensive. The 35 kg version hits exactly where most real jobs live: two full cartons of beer, a car bumper, a 25 kg bag plus gripper, a welding torch with big wire drum. It has the same slim arm as the 25 kg model but beefier wrist, so it fits in tight cells and still lifts decent weight. Thousands are running 3-shift palletizing, machine tending and spot welding right now.

Stuff People Actually Use
  • 35 kg real payload – not marketing 35 kg at 10 mm offset
  • 1831 mm reach – same as M-20iA/35M, but newer hollow wrist
  • Fully hollow arm – cables inside, no more snagging
  • IP67 standard – wash-down, coolant, dust, no problem
  • J4 and J6 are super fast – great for palletizing patterns
  • R-30iB Plus controller – same as the big robots
Quick Numbers
Payload 35 kg
Reach 1831 mm
Repeatability ±0.02 mm
Weight 250 kg
Protection IP67 whole arm
Axes 6
Mounting Floor, ceiling, angle
Where You Find Them 24/7

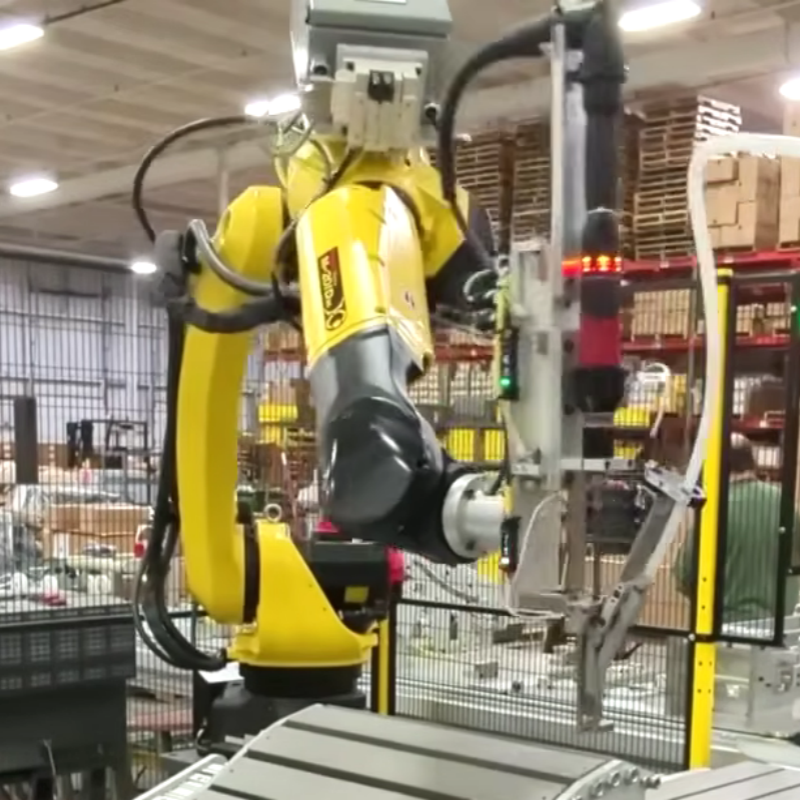

  • Palletizing cartons and bags
  • Machine tending (CNC, press brake)
  • Spot welding car body parts
  • Handling automotive seats and dashboards
Questions We Get Every Day

Q: Is 35 kg real?
A: Yes – full 35 kg at flange, no tricks.

Q: Can it replace my old M-20iA/35M?
A: Direct drop-in – same holes, same reach, better wrist.

Contact

Phone/WhatsApp/WeChat: +8615000725058
Email:edwardzhao@gbsxj.com

Similar Robots
  • M-20iD/25 – lighter brother
  • M-20iD/12L – longer reach version
  • CRX-25iA – collaborative 25 kg
