Linear Probe Wireless Portable Ultrasound Machine 32 Channel
Linear Probe Wireless Portable Ultrasound Machine 32 Channel
Linear Probe Wireless Portable Ultrasound Machine 32 Channel
Linear Probe Wireless Portable Ultrasound Machine 32 Channel
Specifications
Brand Name :
Golead
Model Number :
H35L
Certification :
CE, ISO13485
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
1,000 units per month
Delivery Time :
2 working days
Packaging Details :
carton box
Product Name :
126mm Compact Wireless Ultrasound Probe Linear Probe Ultrasound
Scanning mode :
electronic linear array
Element :
128
Frequency :
4/8.3/12MHz
Cineloop :
100 frames
Support Language :
English/Chinese
Display mode :
B/C/M/PW/PD
Image storage format :
DICOM, BMP, PNG, JPEG
Battery :
6000 mAh, maximum 4.5-hour continuous use
N/W :
330g
G/W :
530g
Warranty :
1 year
Body Mark :
Yes
Size :
179*75*34mm
Description

126mm Compact Wireless Ultrasound Probe Linear Probe Ultrasound

DESCRIPTION

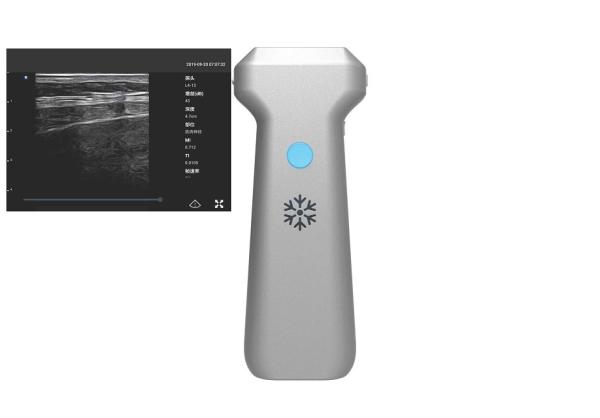

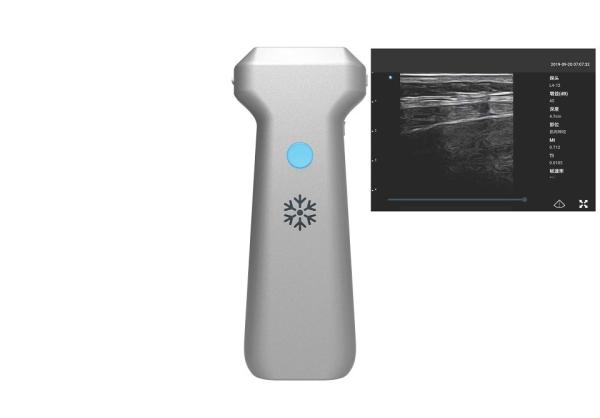

The H35L Wireless Ultrasound Probe is a cutting-edge device that uses the latest technologies to deliver exceptional imaging capabilities. This device is designed for portability, making it an ideal option for healthcare professionals who need to perform ultrasounds in a variety of settings.

The H35L is equipped with a user-friendly interface that provides easy access to all of its advanced features. It is compatible with both convex and linear probes, providing users with the flexibility to perform a wide range of diagnostic procedures.

One of the standout features of the H35L is its advanced image processing capabilities. With support for GPU technology, this device can perform real-time image processing at up to 30 frames per second. This results in improved response times and image quality, making it easier for healthcare professionals to make accurate diagnoses.

The H35L also includes specialized application packages that can automatically measure certain parameters, making it easier for healthcare professionals to detect diseases and other conditions. This feature is particularly useful for those who may have limited experience with ultrasound technology.

PARAMETERS:

​​

Scanning mode Electronic Linear Array with 128 elements
Display mode B/C/M/PW/PD
Central frequency 8.3MHz
Depth 12.6cm
Zoom four times
Channel 32
Dynamic Range 180dB
Sampling Rate 50MHz
Gray 256
FPS from 8 to 30
Packing Dimension 255*190*60mm
Video Storage MPEG-4


APPLICATIONS

Vascular, small parts, MSK, nerve

CONTENT INCLUDED

Wireless Ultrasound Probe – H35L

Internal Battery

Charging Cable

User Manual

Wireless Charger

CLINICAL IMAGE

Linear Probe Wireless Portable Ultrasound Machine 32 Channel
